Kubota BX24 Workshop Manual

2-M11
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE

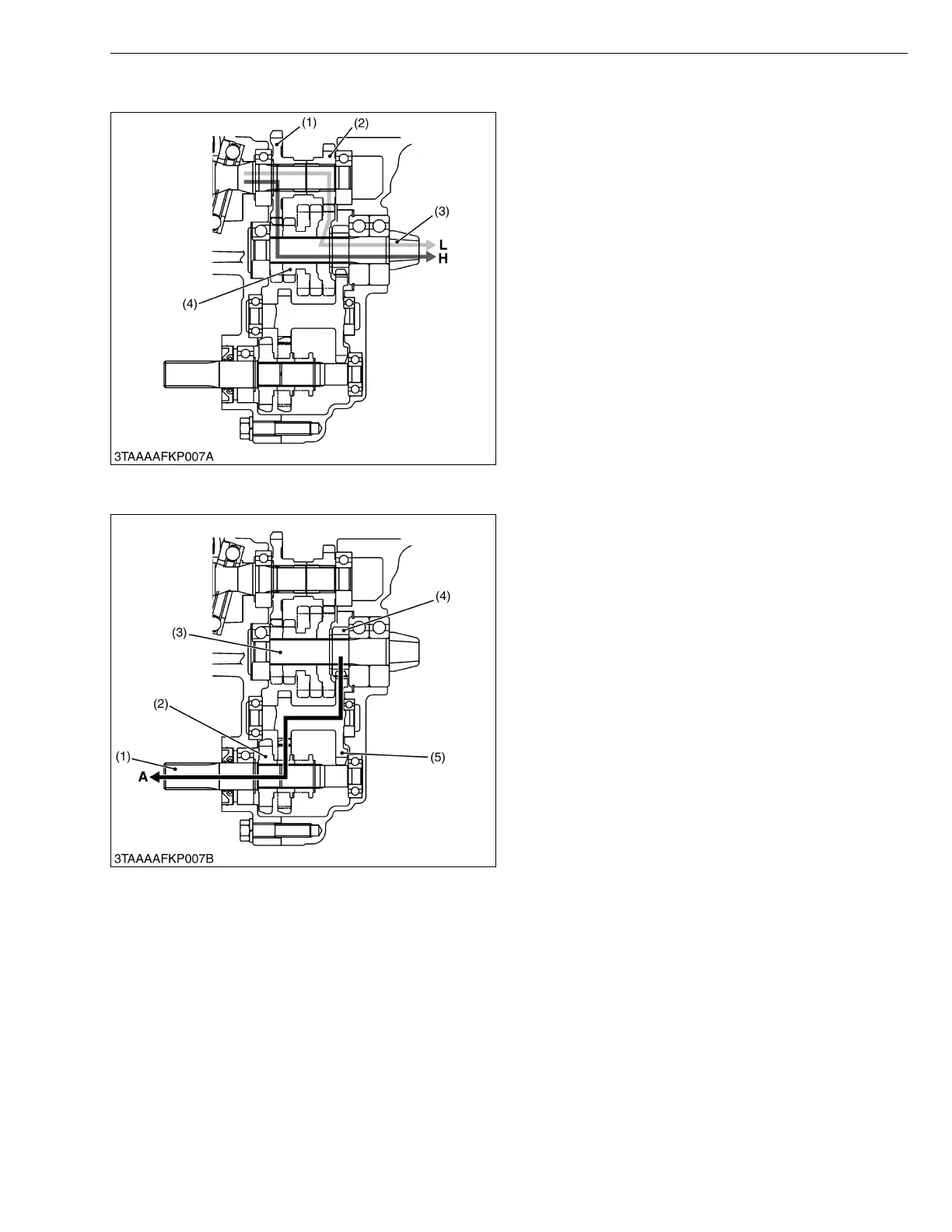

[2] RANGE GEAR SHIFT SECTION
Two kinds of power flow are selected by operating the
range gear shift lever to shift the 16T-24T shifter gear (4)
on the spiral bevel gear shaft (3).
 Low Range
17T Gear Shaft (2)  Shifter Gear (24T) (4)  Spiral
Bevel Pinion Shaft (3).
 High Range
25T Gear (1)  Shifter Gear (16T) (4)  Spiral Bevel
Pinion Shaft (3).
W1014705
[3] FRONT WHEEL DRIVE SECTION
2-wheel drive or 4-wheel drive is selected by
changing the position of 19T shifter gear (2) with the front
wheel drive lever.
 Front Wheel Drive “Disengaged”
When the front wheel drive lever is set to
“Disengaged” position, the 19T shifter gear (2) is
neutral and power is not transmitted to the front wheel
drive shaft (1).
 Front Wheel Drive “Engaged”
When the front wheel drive lever is set to “Engaged”
position, the 19T shifter gear (2) slides to the right to
engage with 13T-25T gear shaft (5). Therefore, the
power from spiral bevel pinion shaft (3) is transmitted to
the front wheel drive shaft (1) through the gears.
W1014843
(1) 25T Gear
(2) 17T Gear
(3) Spiral Bevel Pinion Shaft
(4) 16T-24T Shifter Gear
L : Low Range
H : High Range
(1) Front Wheel Drive Shaft
(2) 19T Shifter Gear
(3) Spiral Bevel Pinion Shaft
(4) 12T Gear
(5) 13T-25T Gear Shaft
A : Front Wheel Drive
“Engaged”
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
