4-S9

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

STEERING

[4] SERVICING

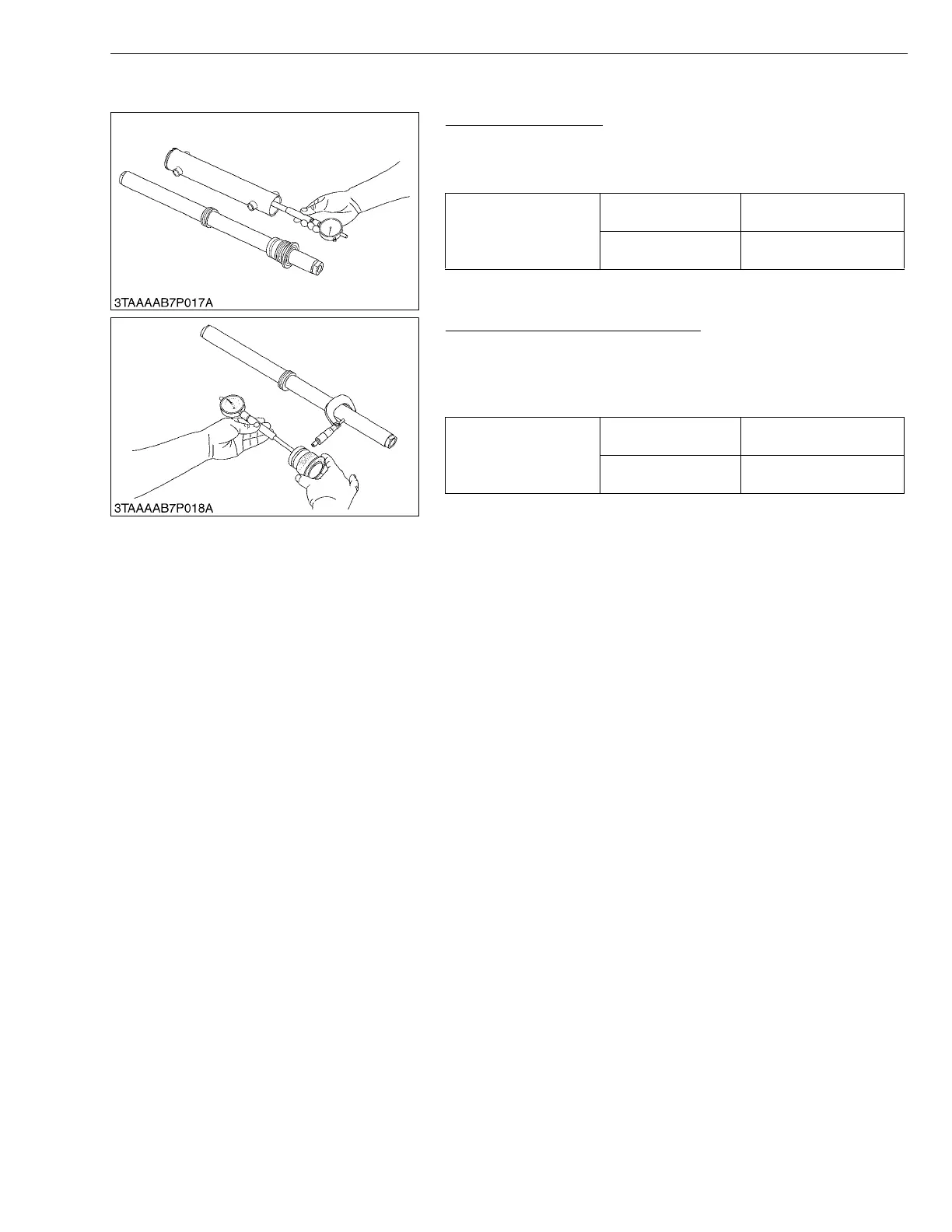

Steering Cylinder I.D.

1. Measure the steering cylinder I.D. with a cylinder gauge.

2. If the cylinder I.D. exceed the allowable limit, replace the cylinder

barrel.

W1013872

Clearance between Rod and Guide

1. Measure the rod guide I.D. with a cylinder gauge.

2. Measure the rod O.D. with an outside micrometer, and calculate

the clearance.

3. If the clearance exceeds the allowable limit, replace as a unit.

W1013777

Steering cylinder I.D.

Factory spec.

40.000 to 40.062 mm

1.57480 to 1.57724 in.

Allowable limit

40.100 mm

1.57874 in.

Clearance between rod

and guide

Factory spec.

0.020 to 0.070 mm

0.00079 to 0.00276 in.

Allowable limit

0.200 mm

0.00787 in.

KiSC issued 08, 2019 A
