2-S29

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

TRANSAXLE

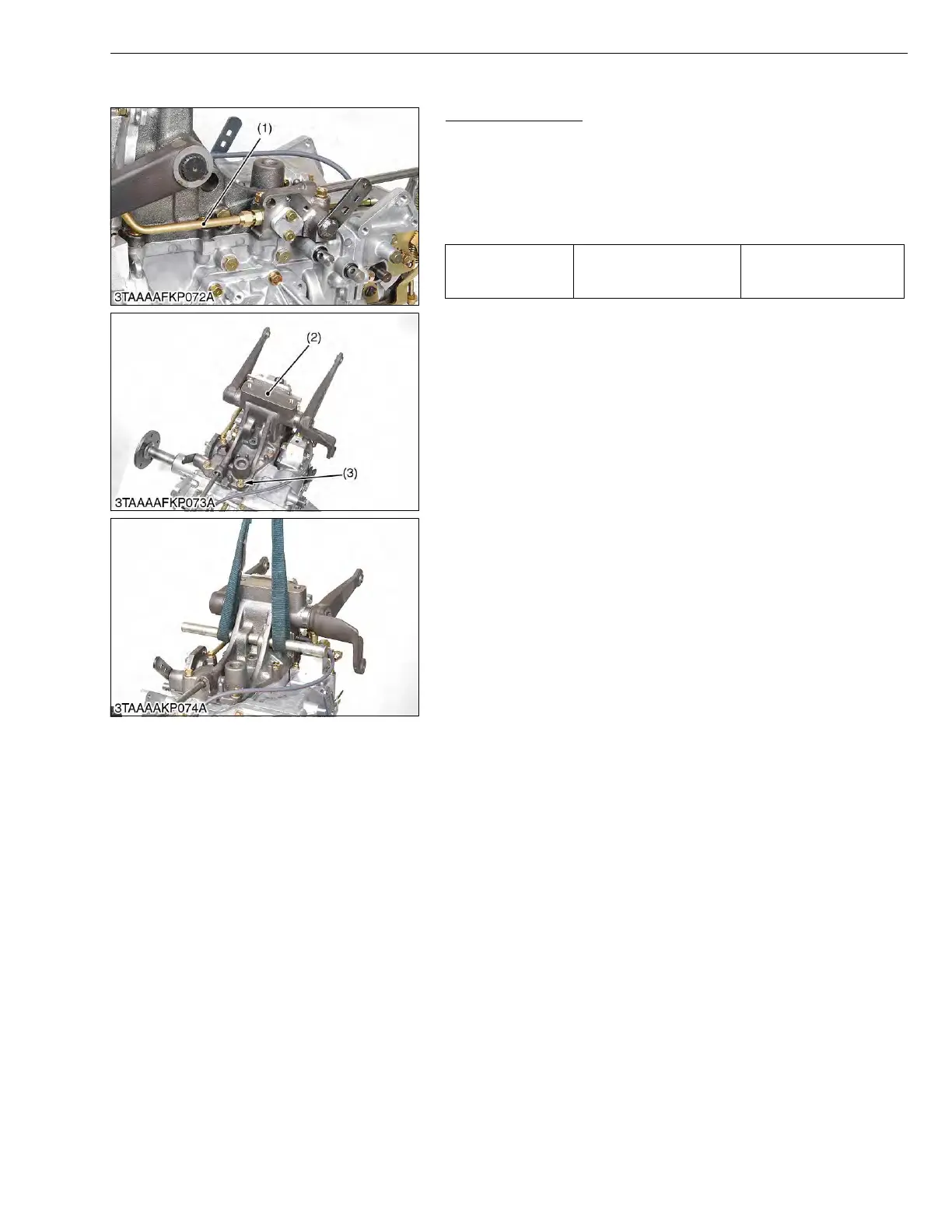

(2) Hydraulic Cylinder

Hydraulic Cylinder

1. Disconnect the delivery pipe (1).

2. Remove the hydraulic cylinder mounting bolts (3).

3. Remove the hydraulic cylinder (2).

(When reassembling)

• Apply liquid gasket (Three Bond 1208D or equivalent) to the joint

surface of the transaxle case to the hydraulic cylinder.

W1089147

Tightening torque

Hydraulic cylinder

mounting bolt

39.2 to 44.1 N·m

4.0 to 4.5 kgf·m

28.9 to 32.5 ft-lbs

(1) Delivery Pipe

(2) Hydraulic Cylinder

(3) Bolt

KiSC issued 08, 2019 A
