BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

FRONT LOADER

3. BOOM CYLINDER AND BUCKET CYLINDER

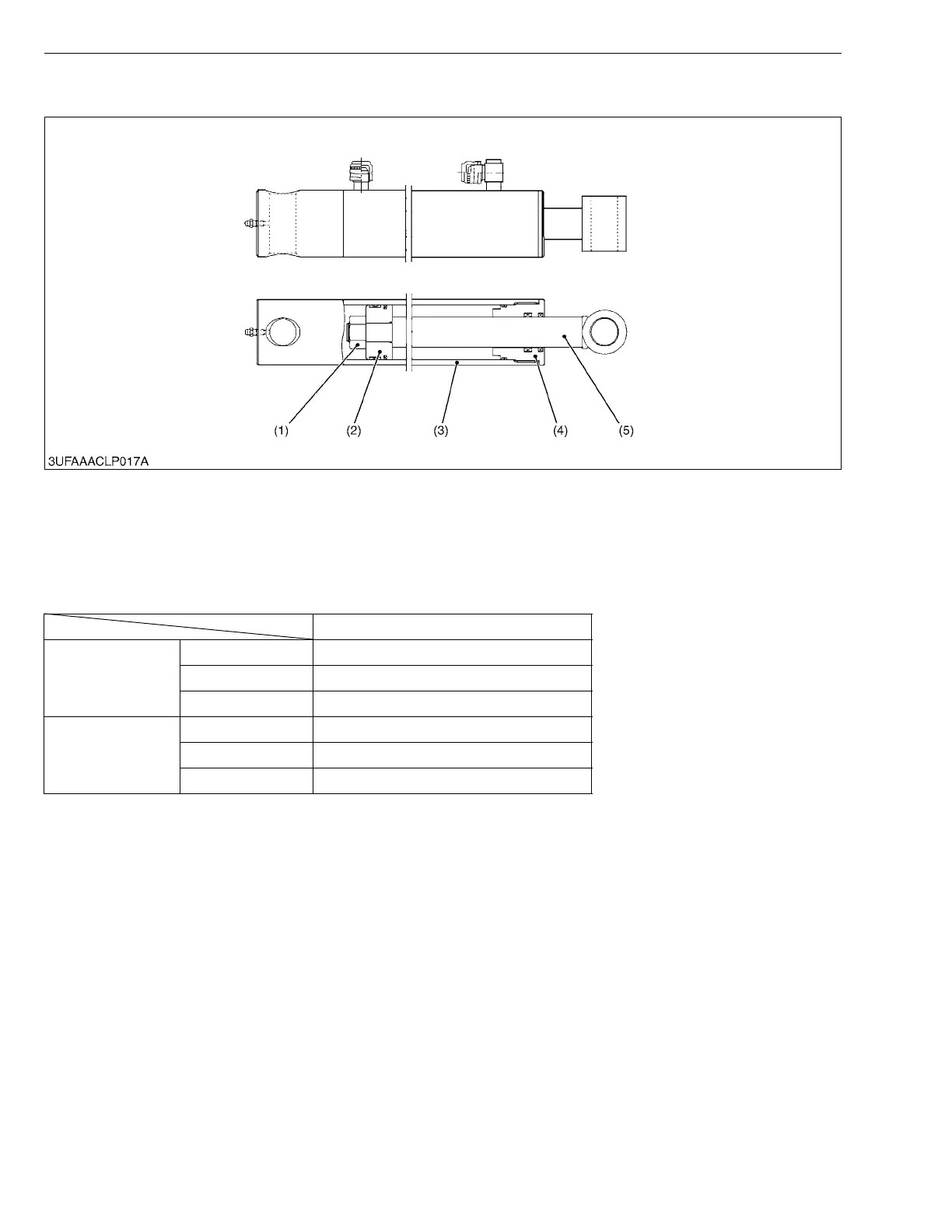

Both boom cylinder and bucket cylinder consists of a head (4), cylinder tube (3), piston rod (5), piston (2), and other

parts as shown in the figure above. They are single-rod double acting cylinder in which the reciprocating motion of

the piston is controlled by hydraulic force applied to both of its ends.

Cylinder Specifications

W1025274

(1) Nut

(2) Piston

(3) Cylinder Tube (4) Head (5) Piston Rod

LA240

Boom Cylinder Cylinder I.D. 40 mm (1.57 in.)

Rod O.D. 25 mm (0.98 in.)

Stroke 326 mm (12.8 in.)

Bucket Cylinder Cylinder I.D. 65 mm (2.56 in.)

Rod O.D. 30 mm (1.18 in.)

Stroke 204 mm (8.03 in.)
