Kubota BX24 Workshop Manual

7-S11
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ROTARY MOWER
[7] MOWER ADJUSTMENT
CAUTION
• Park the tractor on a firm, flat and level surface and set the parking brake.
• Stoop the engine, remove the key, and allow the blades to stop before making adjustments.
• Wear heavy gloves or wrap end of blade with a rag when you handle blades.
• Before starting the engine, set the PTO clutch lever to off position and range gear shift lever to the neutral
position.

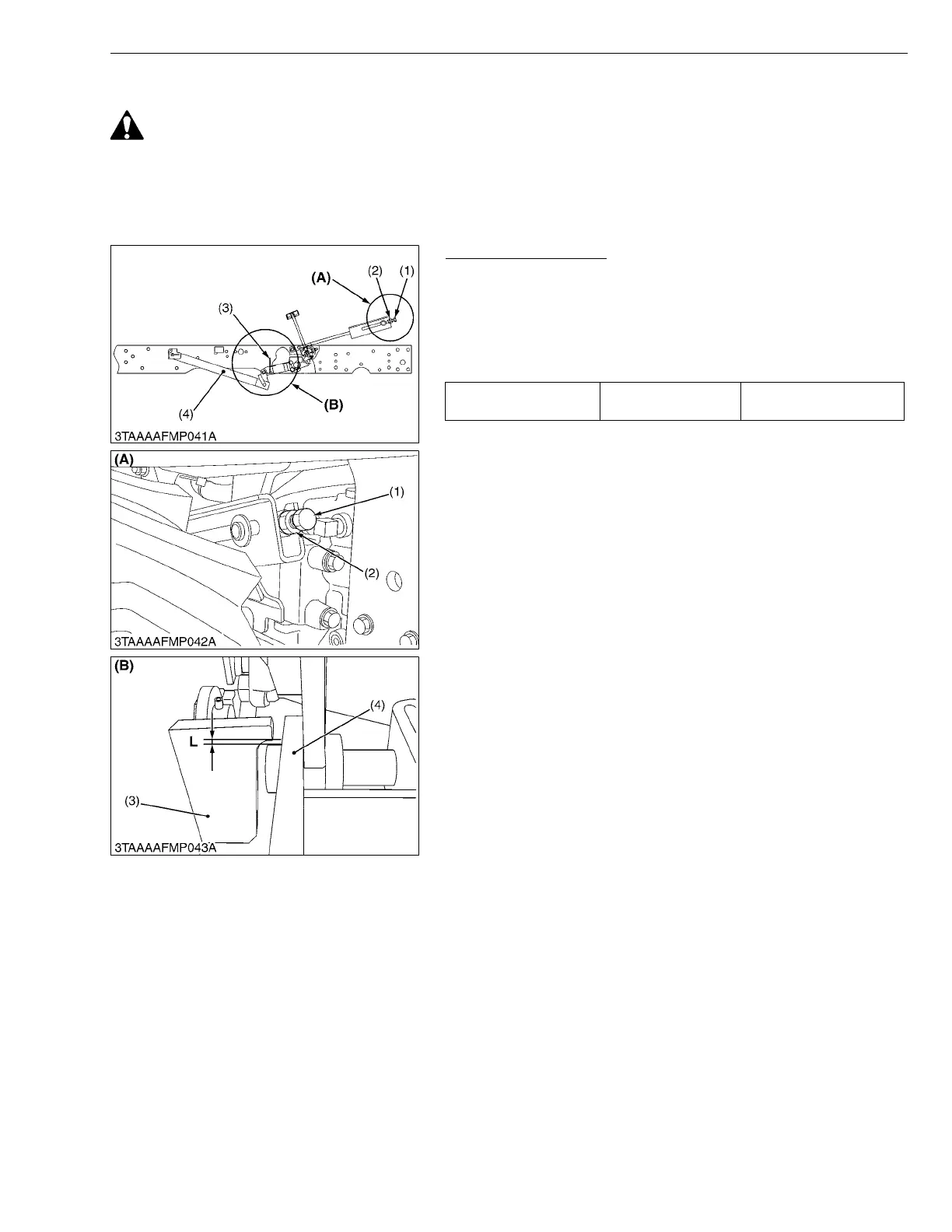

Adjusting Mower Link
1. Tire pressure must be correct.
2. Move the hydraulic control lever rearward to raise the mower to
the highest position.
3. Stop the engine and remove the key.
4. Adjust the left side links with bolt so that the clearance L is as
follows.
W10425879
Clearance (L) between
stopper and rear link
Factory spec.
0 to 0.5 mm
0 to 0.02 in.
(1) Bolt
(2) Lock Nut
(3) Stopper
(4) Rear Link
L : 0 to 0.5 mm (0 to 0.02 in.)
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
