Kubota BX24 Workshop Manual

2-M18
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE
[2] MID AND REAR PTO SECTION

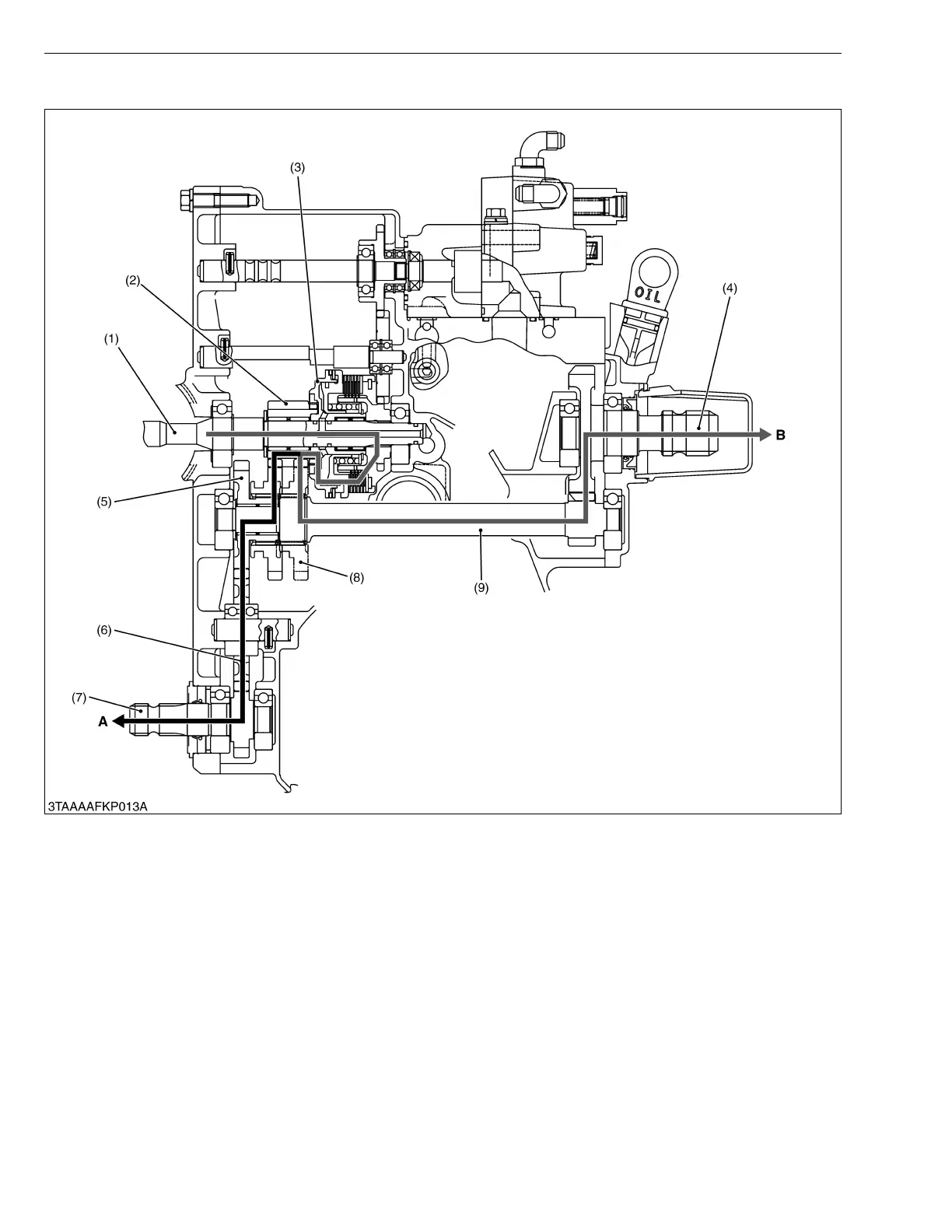

Three kinds of power flow are selected by operating the PTO select lever to shift the PTO select gear (8) on the
11T gear shaft (9).
 Mid-PTO Position (A)
PTO Clutch Pack (3)  12T Gear Clutch (2)  PTO Select Gear (8)  23T Mid PTO Gear (5)  24T Mid PTO
Idle Gear (6)  Mid-PTO Shaft (7).
 Rear PTO Position (B)
PTO Clutch Pack (3)  12T Gear Clutch (2)  PTO Select Gear (8)  11T Gear Shaft (9)  Rear PTO Shaft (4).
 Mid and Rear PTO Position
A and B at the same time.
(1) HST Pump Shaft
(2) 12T Clutch Gear
(3) PTO Clutch Pack
(4) Rear PTO Shaft
(5) 23T Mid PTO Gear
(6) 24T Mid PTO Idle Gear
(7) Mid-PTO Shaft
(8) 28T PTO Select Gear
(9) 11T Gear Shaft
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
