2-M2

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

TRANSAXLE

2. TRAVELLING SYSTEM

[1] HYDROSTATIC TRANSMISSION

(1) Structure

The hydrostatic transmission consists of variable displacement piston pump, fixed displacement piston motor and

valve system.

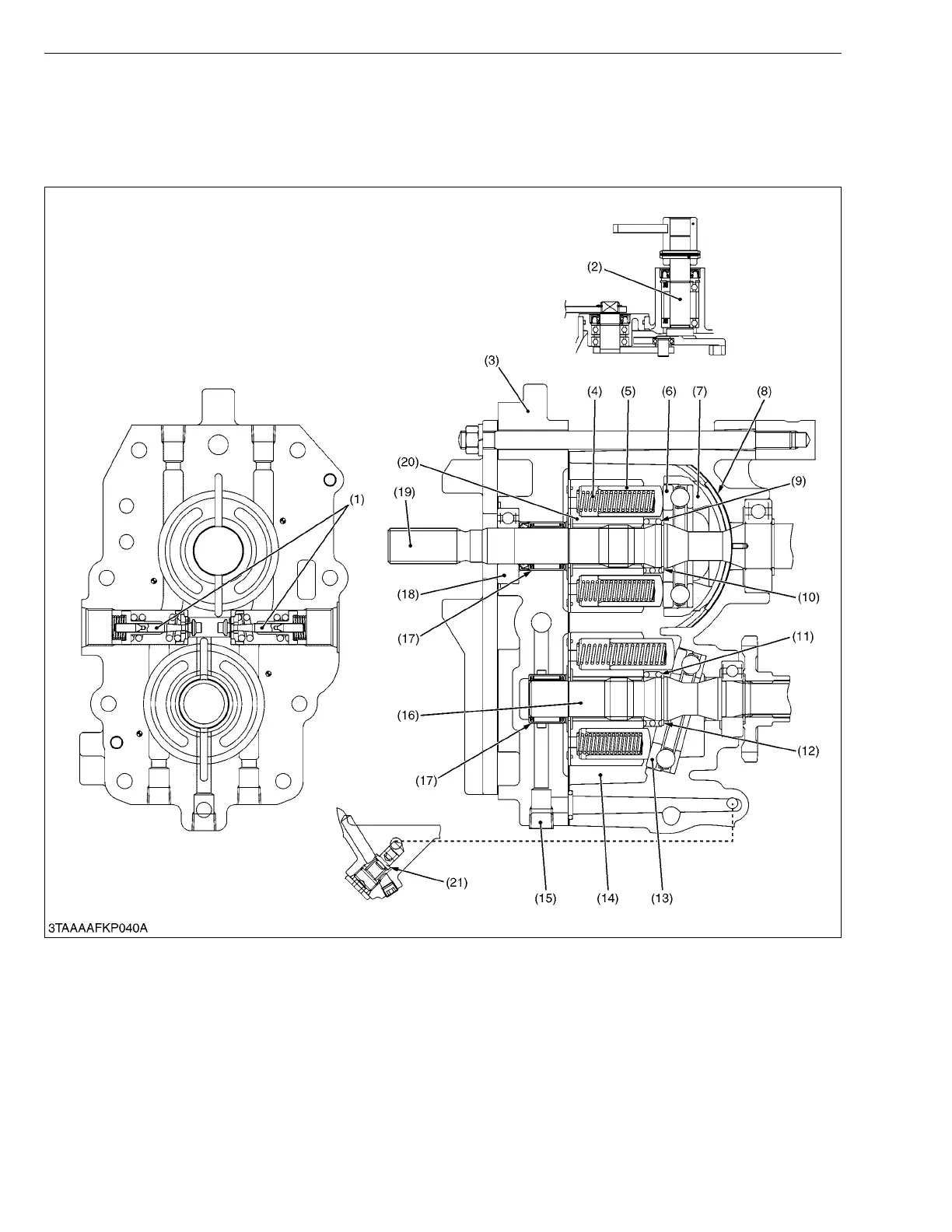

(1) Check and High Pressure

Relief Valve

(2) Trunnion Arm

(3) Center Section

(4) Piston Spring

(5) Piston

(6) Thrust Ball Bearing

(7) Swashplate

(8) Cradle Bearing

(9) Spring

(10) Cir-Clip

(11) Spring

(12) Cir-Clip

(13) Thrust Ball Bearing

(14) Cylinder Block (Motor)

(15) Plug

(16) Motor Shaft

(17) Needle Bearing

(18) Ball Bearing

(19) Pump Shaft

(20) Cylinder Block (Pump)

(21) Charge Relief Valve
