4-S4
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
STEERING
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING

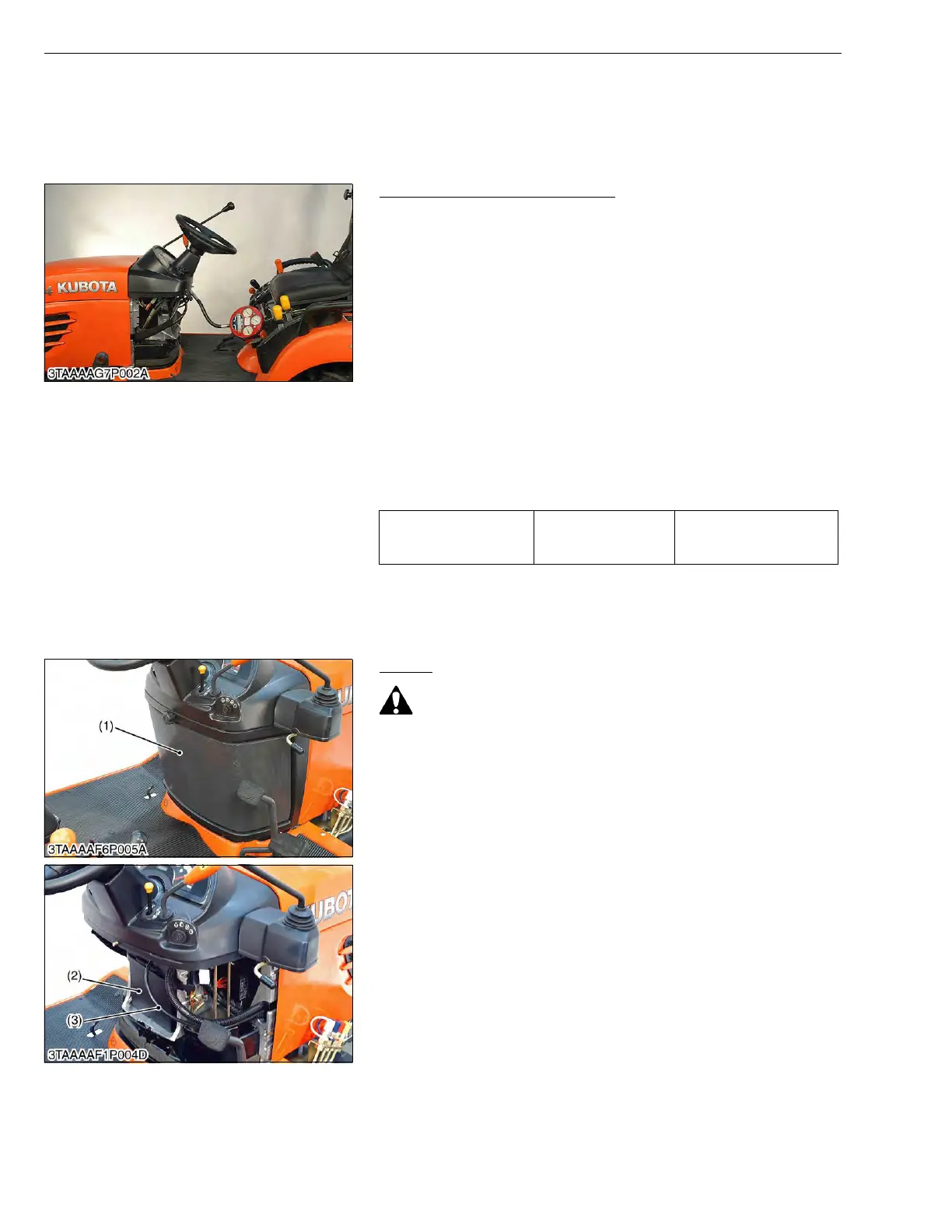

(1) Relief Valve
Relief Valve Operating Pressure
1. Disconnect the power steering hose L (or R) from steering
controller, and set a pressure gauge and hose.
(Reference)
• Hose and adaptor size : 9/16-18UNF, 37 ° flare
2. Start the engine and set at maximum speed.
3. Fully turn the steering wheel to the left (or right) to check the
feeling which the steering wheel lightly locks. Read the relief
valve operating pressure when the steering wheel to the above-
mentioned lock position by operation force at approximately 9.8
N (1 kgf, 2.2 lbs) of outer.
• After set a pressure gauge, be sure to bleed air.
• Note that the pressure value changes by the pump action of
the power steering controller when the steering operation is
continued after the steering wheel is lightly locked and
accurate relief valve pressure cannot be measured.
W1011481
[2] PREPARATION
(1) Separating Power Steering Controller
Battery
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the under panel (1).
2. Disconnect the negative cable (2) from the battery.
W1014990
Relief valve operating
pressure
Factory spec.
8.33 to 8.83 MPa
85 to 90 kgf/cm
2
1209 to 1280 psi
(1) Under Panel
(2) Battery
(3) Negative Cable
To Next Page
