Kubota BX24 Workshop Manual

9-S10
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
BACKHOE

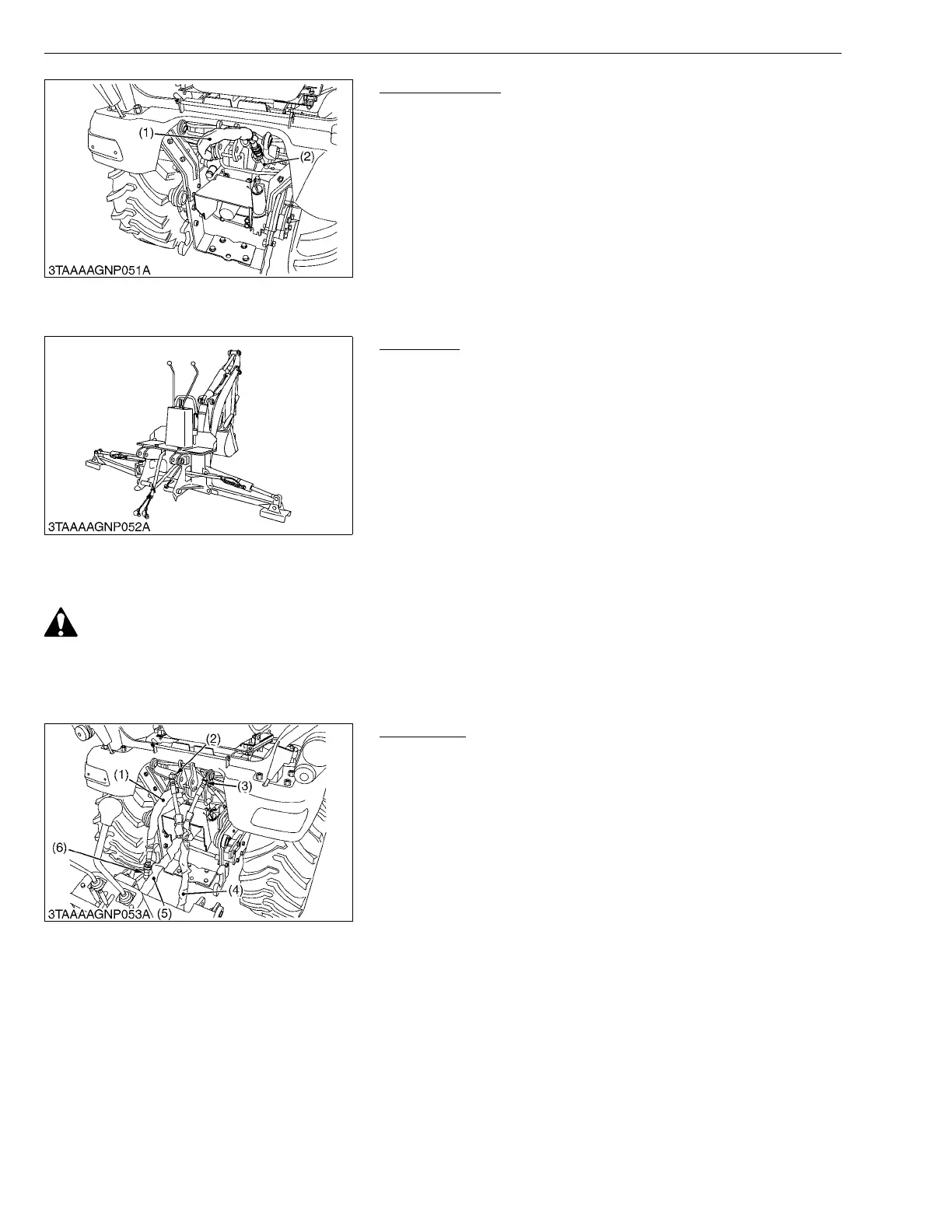

Hydraulic Hoses
1. Slowly release all hydraulic pressure by moving the backhoe
hydraulic control levers in all directions.
2. Disconnect the hydraulic hoses in the following manner.
3. Disconnect the inlet, outlet and power beyond hoses from the
tractor.
4. Connect the tractor’s outlet hose to coupler of power beyond
pipe.
IMPORTANT
• Install the dust plugs and the dust cap onto the tractor’s
hydraulic couplers and nipple to prevent contamination.
W1013581
Separation
1. Start the engine.
Then drive the tractor / loader slowly from the backhoe.
2. Shut off the engine and remove the key from the tractor. Set the
parking brake.
NOTE
• The entire three point hitch can now be reinstalled on the
tractor for use with other rear mount implements.
• Be sure that there is sufficient ballast in the rear tires and an
implement is attached to the three point hitch before using
the loader with backhoe removed.
W1013720
[2] MOUNTING THE BACKHOE TO TRACTOR
CAUTION
• When starting the engine, always sit in the proper operator’s seat of the tractor.
• Keep hands, feet and body from between the tractor and the backhoe and under the backhoe.
• When getting off the tractor, make sure that range gear shift lever and PTO lever is in neutral, them set the
parking brake.
Preparation
IMPORTANT
• When installing the backhoe, set the engine speed to low
idle.
1. Remove the three-point hitch and / or drawbar. (If equipped.)
2. Detach the mower, if attached in position.
3. Make sure the swoing lock pin is installed.
4. Slowly back the tractor / loader, centering to the backhoe main
frame.
Stop the tractor 250 to 300 mm (10 to 12 in.) away from the
backhoe.
5. Shut the engine off and set the parking brake.
6. Connect the inlet, outlet and power beyond hoses of the backhoe
to the outlet hose, power beyond pipe and return pipe of the
tractor.
W1015093
(1) Outlet Hose (Tractor) (2) Power Beyond Pipe (Tractor)
(1) Outlet Hose (Tractor)
(2) Return Pipe (Tractor)
(3) Power Beyond Pipe (Tractor)
(4) Power Beyond Hose (Backhoe)
(5) Outlet Hose (Backhoe)
(6) Inlet Hose (Backhoe)
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
