Lantronix SLC 8000 User Manual

7: Services
SLC™ 8000 Advanced Console Manager User Guide 104

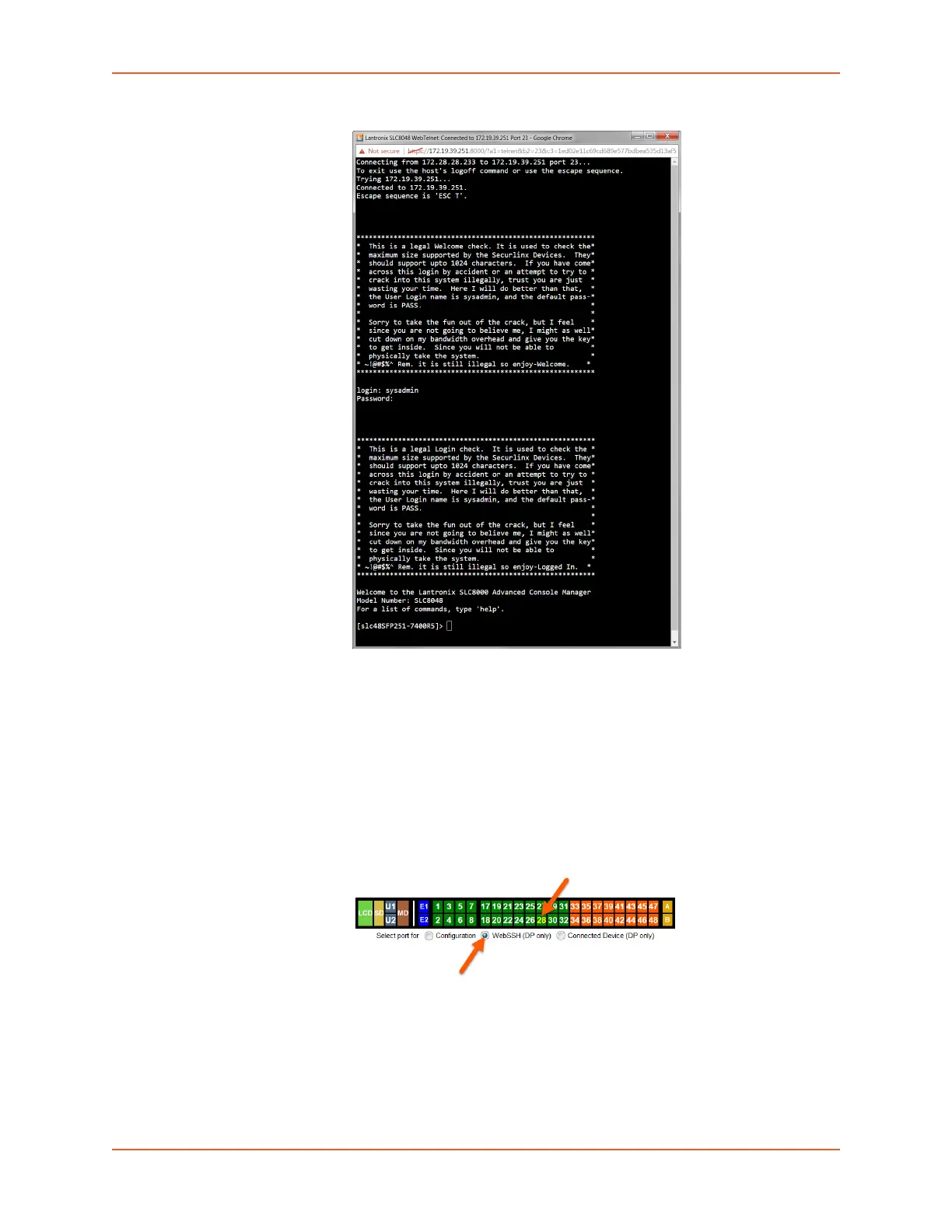

Figure 7-7 SSH or Telnet CLI Session
To directly access a specific port on a particular device:
1. You have two options:
- Dashboard
Make sure the WebSSH (DP only) radio button directly beneath the Dashboard is
selected and click the desired port number. The Dashboard is located on the upper right
corner of each Web Manager page (see Chapter 5: Web Page Layout.) An SSH popup
window appears.
Note: WebTelnet is not available from the Dashboard. See Dashboard on page
60 as the dashboard may vary in appearance.
- Secure Lantronix Page
Click the Services tab, then click the Secure Lantronix Network link (see Figure 7-4.)
Select the port you want to configure. Enabled port numbers are in bright green boxes and
will allow you to select either a WebSSH or a WebTelnet session. If enabled, an SSH or
Telnet popup window appears depending on what is clicked. For SLC console managers
with 7.2.0.0 firmware releases and earlier, an SSH or Telnet popup window for Java

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
