Lantronix SLC 8000 User Manual

11: Connections
SLC™ 8000 Advanced Console Manager User Guide 212
Connection Configuration
Note: These are advanced connection settings for specific applications. If the SLC 8000
advanced console manager is being used as a console or device server it is unlikely that
you will need any of the Connection settings described below.
To create a connection:
1. Click the Devices tab and select the Connections opton. The following page displays:

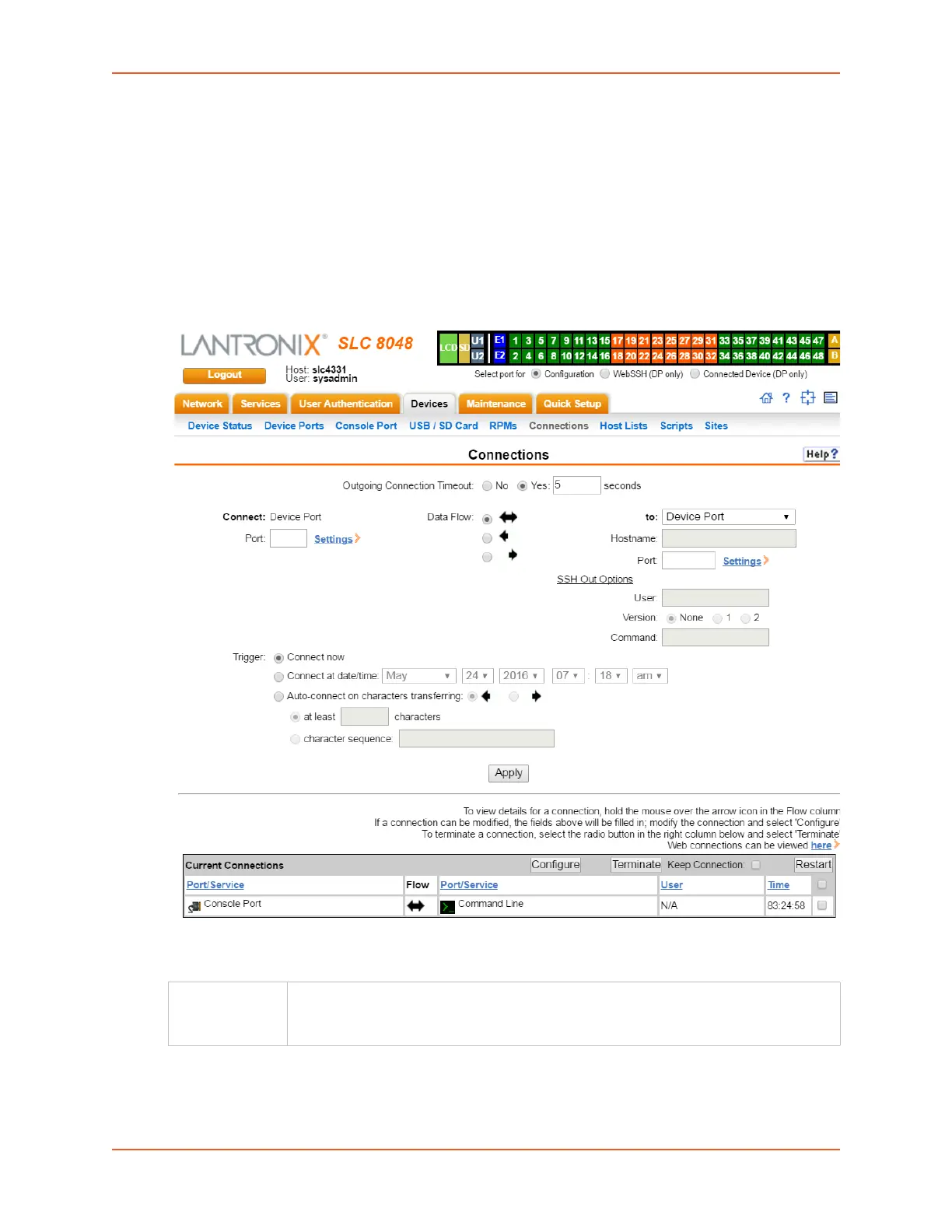

Figure 11-6 Devices > Connections
2. For a device port, enter the following:
Outgoing
Connection
Timeout
Select to turn on or turn off the connection timeout:
 No for no timeout
 Yes for a timeout. Specify the number of seconds in the seconds field.

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
