2: Introduction
SLC™ 8000 Advanced Console Manager User Guide 28

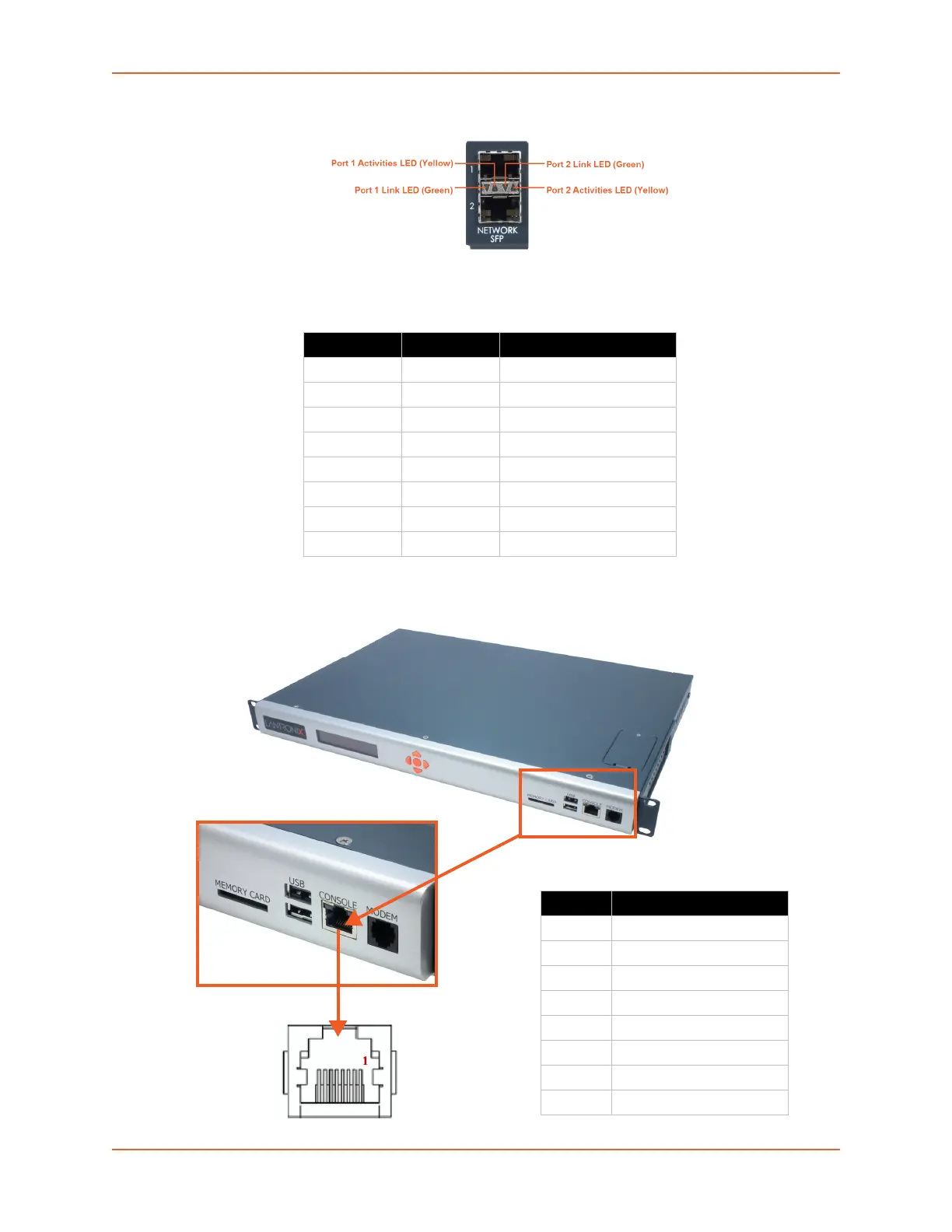

Figure 2-6 SFP Port LEDs
Table 2-7 Device (DCE Reversed & DTE) Port Pinout
Figure 2-8 Console Port (Front Side)
DCE Pin DTE Pin Description
8 1 RTS (output)
72DTR (output)
6 3 TXD (output)
54Ground
45Ground
3 6 RXD (input)
2 7 DSR (input)
1 8 CTS (input)
Table 2-9 Console (DTE) Port Pinout
DTE Pin Description
1 RTS (output)
2 DTR (output)
3 TXD (output)
4Ground
5Ground
6 RXD (input)
7 DSR (input)
8 CTS (input)

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
