6: Basic Parameters

SLC™ 8000 Advanced Console Manager User Guide 81

To complete the VPN page:

1. Click the Network tab and select the VPN option. The following page displays:

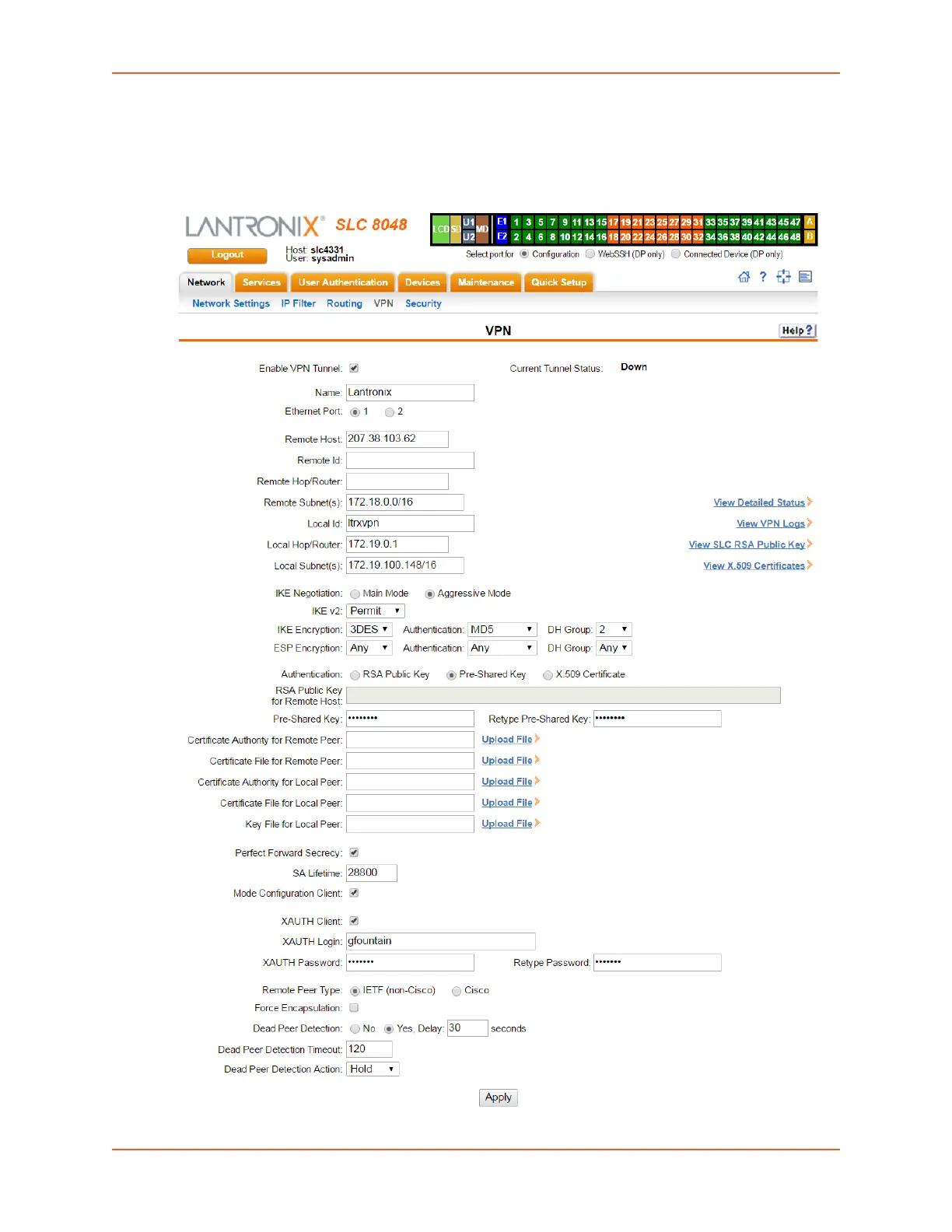

Figure 6-6 Network > VPN
