Lantronix SLC 8000 User Manual

10: Remote Power Managers
SLC™ 8000 Advanced Console Manager User Guide 196

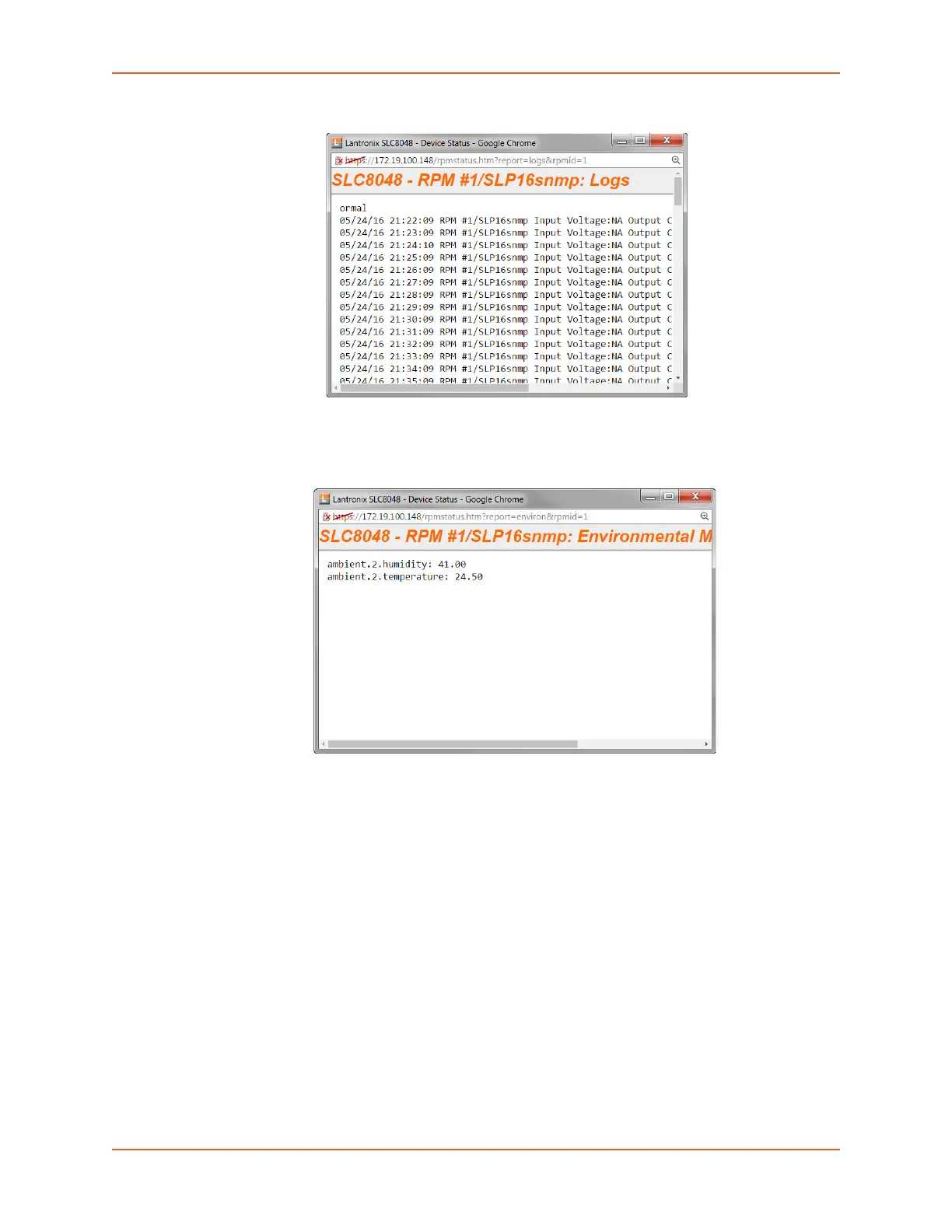

Figure 10-5 RPM Logs
Figure 10-6 RPM Environmental Log
RPMs - Add Device
The Add Device page assists the administrator with adding a new managed RPM to the SLC
configuration. With over 140 different vendors and nearly 1000 different models that are
supported, the key to ensuring the SLC can properly manage a PDU or UPS is selecting the right
model (with its associated driver) and any required driver options, especially for USB managed
devices. On the Devices > RPMs page, access the Device Ports > RPMs - Add Device page to
configure a new managed remote power manager (RPM) for the SLC configuration.
Note: The Device Ports > RPMs - Add Device page with the same functionality can also
be accessed through the Devices > Device Ports page.
To add a new managed RPM :
1. Click the Devices tab and select the RPMs option. Figure 10-1 shows the page that displays.
2. Click the Add Device link on the Devices > RPMs page. The following page displays.

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
