Lantronix SLC 8000 User Manual

13: Maintenance
SLC™ 8000 Advanced Console Manager User Guide 294
 Diagnostic Reports (Figure 13-8)
 Status/Reports (Figure 13-10)
To email a log to an individual:
1. In the Comment field of a particular log or report page, enter a comment (if desired).
2. Select the to field beside the empty field where you then enter the person's email address.
3. Press the Email Output button. An email is immediately sent out and a confirmation appears
on the screen.

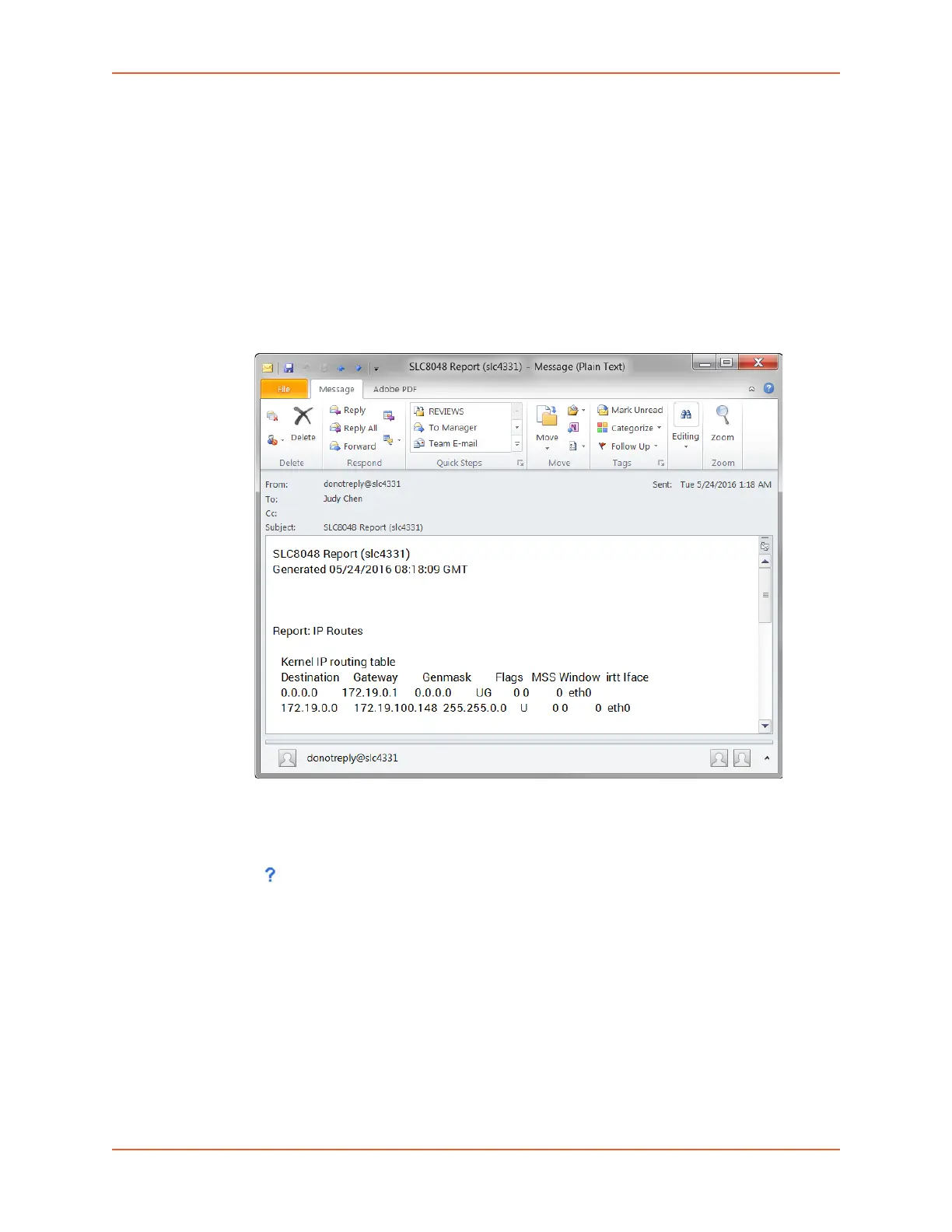

Figure 13-11 Emailed Log or Report
To view information about the SLC unit and contact information for Lantronix:
1. Click the button on the upper right portion of any web page to access the About SLC page
(see Figure 13-12).

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
