2: Introduction

SLC™ 8000 Advanced Console Manager User Guide 31

Internal Modem

An internal modem can be installed in the SLC 8000 advanced console manager. See Modem

Installation on page 41 for instructions.

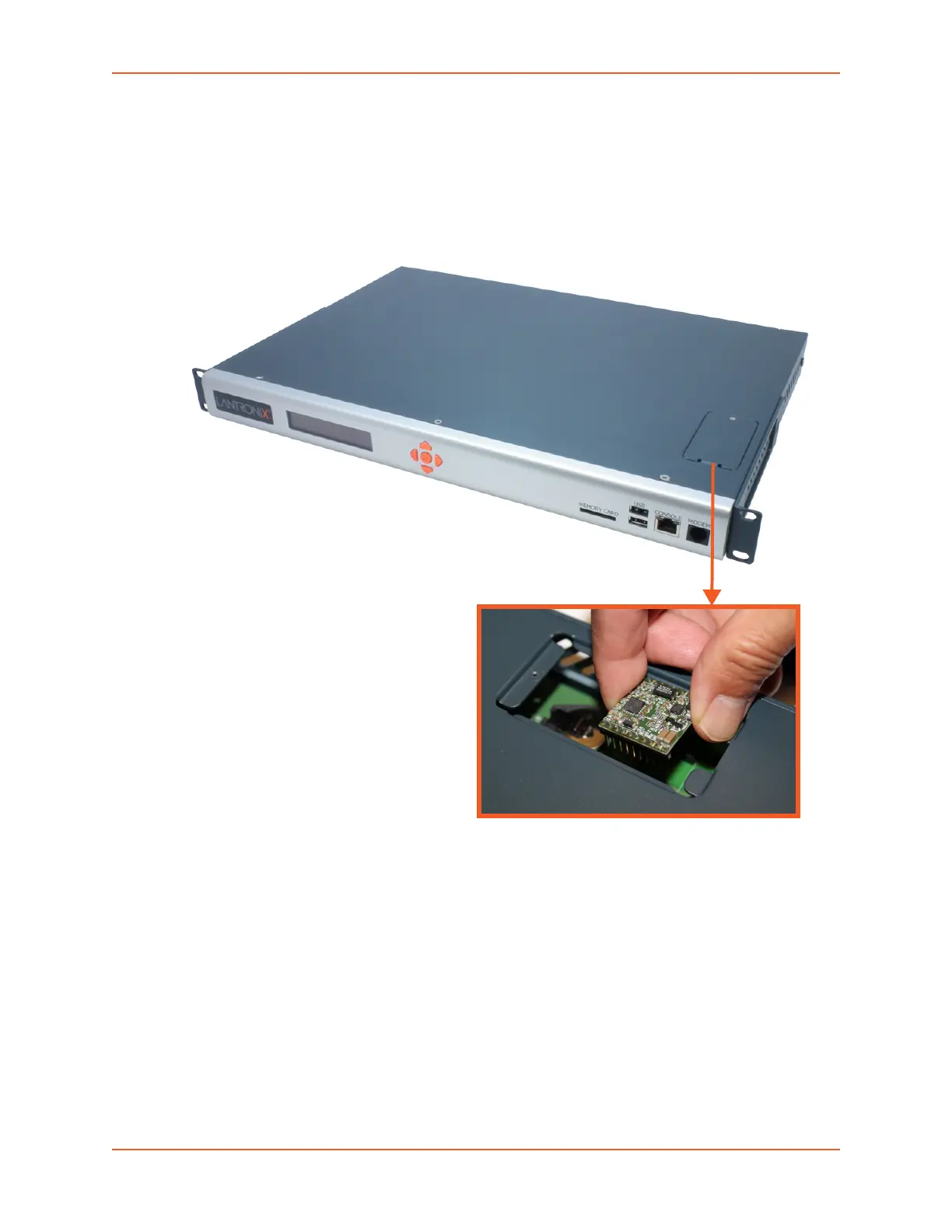

Figure 2-14 Internal Modem Location
