Lantronix SLC 8000 User Manual

4: Quick Setup
SLC™ 8000 Advanced Console Manager User Guide 53

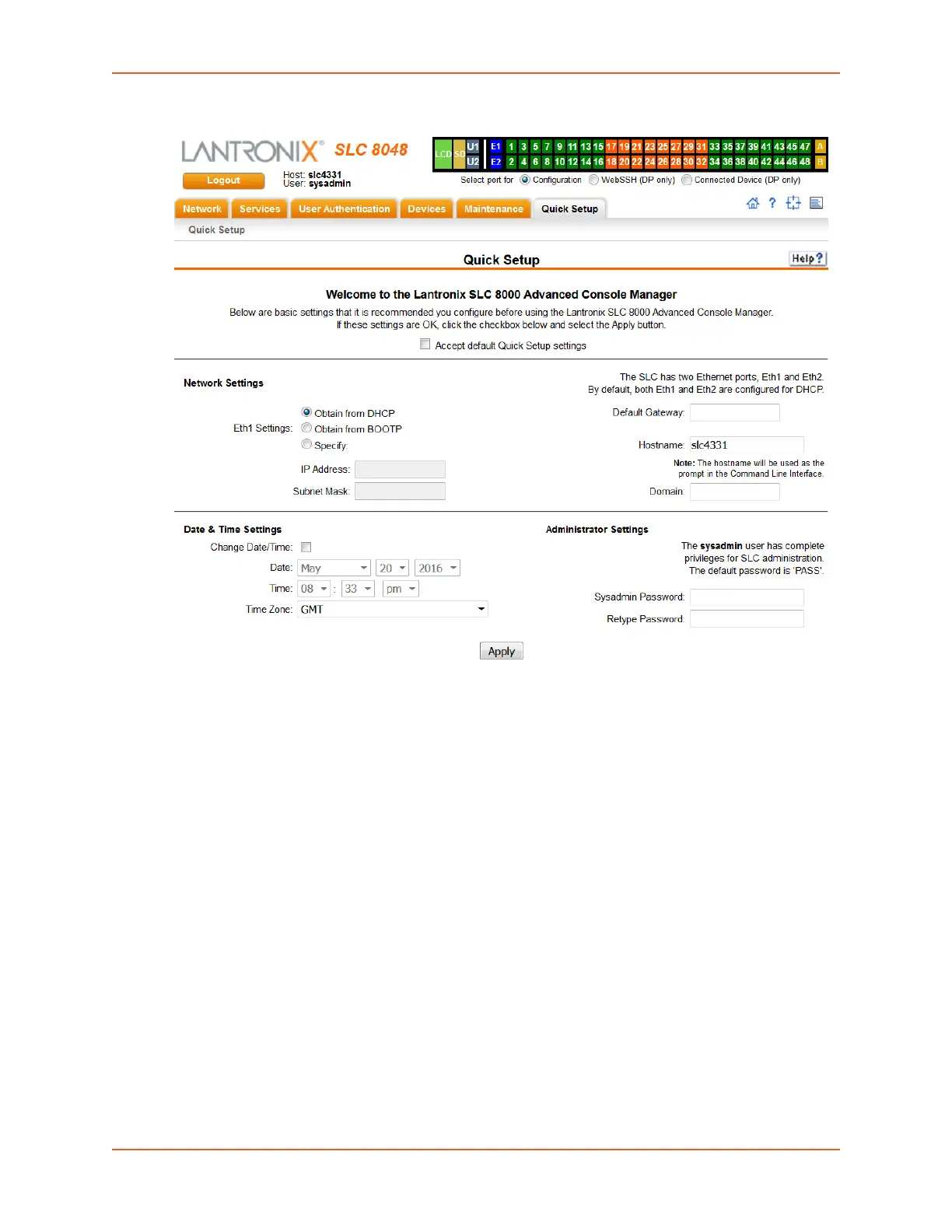

Figure 4-5 Quick Setup
4. To accept the defaults, select the Accept default Quick Setup settings checkbox on the top
portion of the page and click the Apply button at the bottom of the page. Otherwise, continue
with step 5.
Note: Once you click the Apply button on the Quick Setup page, you can continue using
the web interface to configure the SLC further.
5. Enter the following settings:

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
