Lantronix SLC 8000 User Manual

7: Services
SLC™ 8000 Advanced Console Manager User Guide 94
SNMP
Simple Network Management Protocol (SNMP) is a set of protocols for managing complex
networks. The SLC unit supports both MIB-II (as defined by RFC 1213) and a private enterprise
MIB. The private enterprise MIB provides read-only access to all statistics and configurable items
provided by the SLC unit. It provides read-write access to a select set of functions for controlling
the SLC unit and device ports. See the MIB definition file for details. The SLC MIB definition file
and the top level MIB file for all Lantronix products is accessible from the SNMP web page.

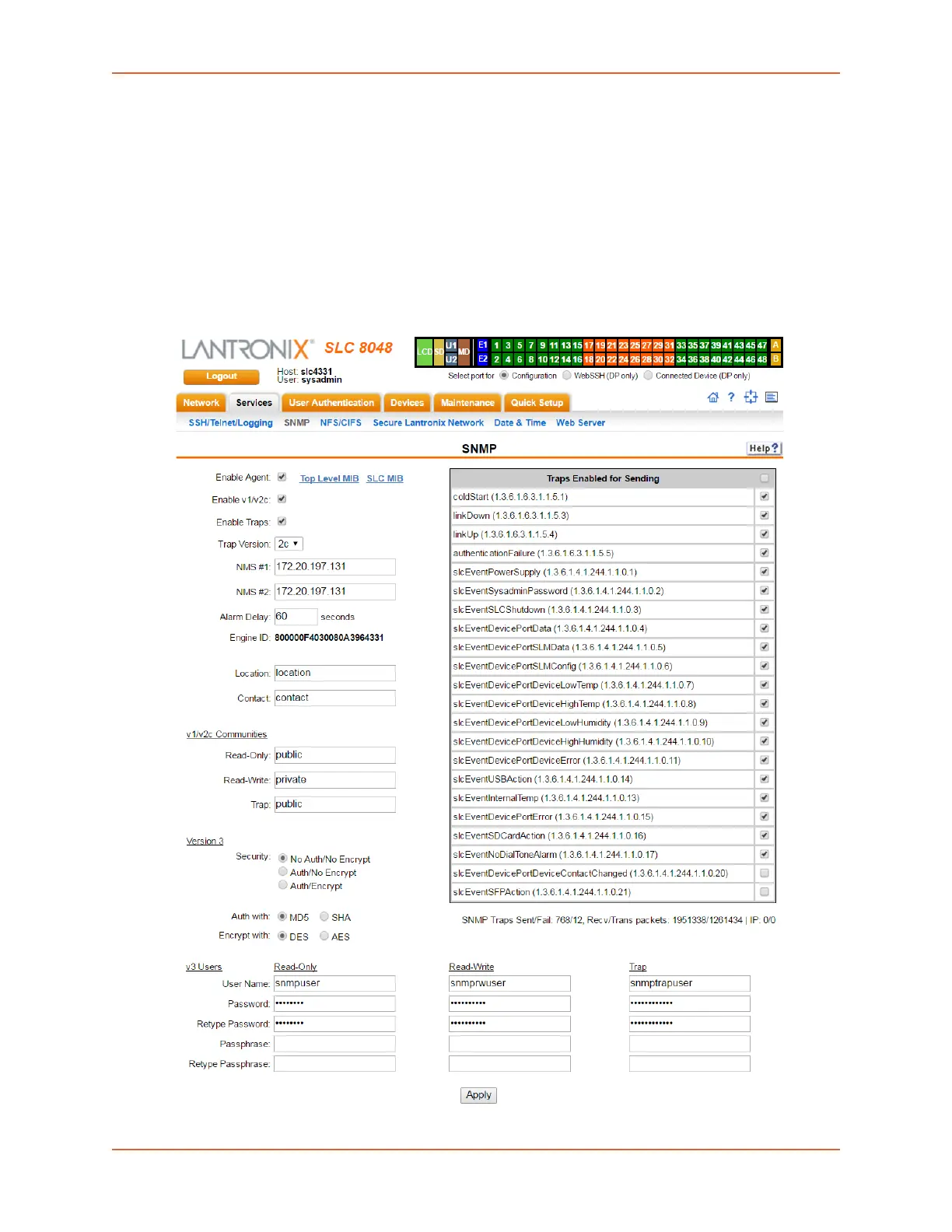

1. Click the Services tab and select the SNMP option. The following page displays:
Figure 7-2 Services > SNMP

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
