Lantronix SLC 8000 User Manual

6: Basic Parameters
SLC™ 8000 Advanced Console Manager User Guide 87
For SSL, the SLC unit will support the following cipher suites:
 AES128-SHA
 AES128-SHA256
 AES128-GCM-SHA256
 AES256-SHA
 AES256-SHA256
 AES256-GCM-SHA384
SSL/secure certificates imported for use with the web server or LDAP authentication must use
either the SHA1 or SHA2 hash with a RSA public key of 1024, 2048 or 3072 bits.
For SSH, the SLC unit will support the following cipher suites:
* AEAD-AES-128-GCM-SSH
* AEAD-AES-256-GCM-SSH
* AES128-CTR
* AES256-CTR
* AES192-CTR
SSH Keys imported for use with SSH authentication must use a RSA public key of 1024, 2048 or
3072 bits. SSH Keys exported by the SLC must use a RSA public key of 2048 or 3072 bits.
When the SLC unit is running in FIPS mode, the following protocols/functions will not be
supported: NIS, Kerberos, RADIUS, TACACS+, Telnet/WebTelnet, WebSSH, IPSec/VPN, SSH
v1, FTP, PPP, CIFS/Samba, TCP, UDP, unencrypted LDAP, and SNMP. If any of these protocols/
functions are enabled prior to enabling FIPS mode, they will be automatically disabled.
LDAP authentication must be configured with the following:
 StartTLS encryption (SSL encryption over port 636 is not supported)
 A SSL/secure certificate
 Either Bind with Login or a Bind Name and Password
Note: In FIPS mode, passphrases are not supported for SSH keys and SSL certificates.

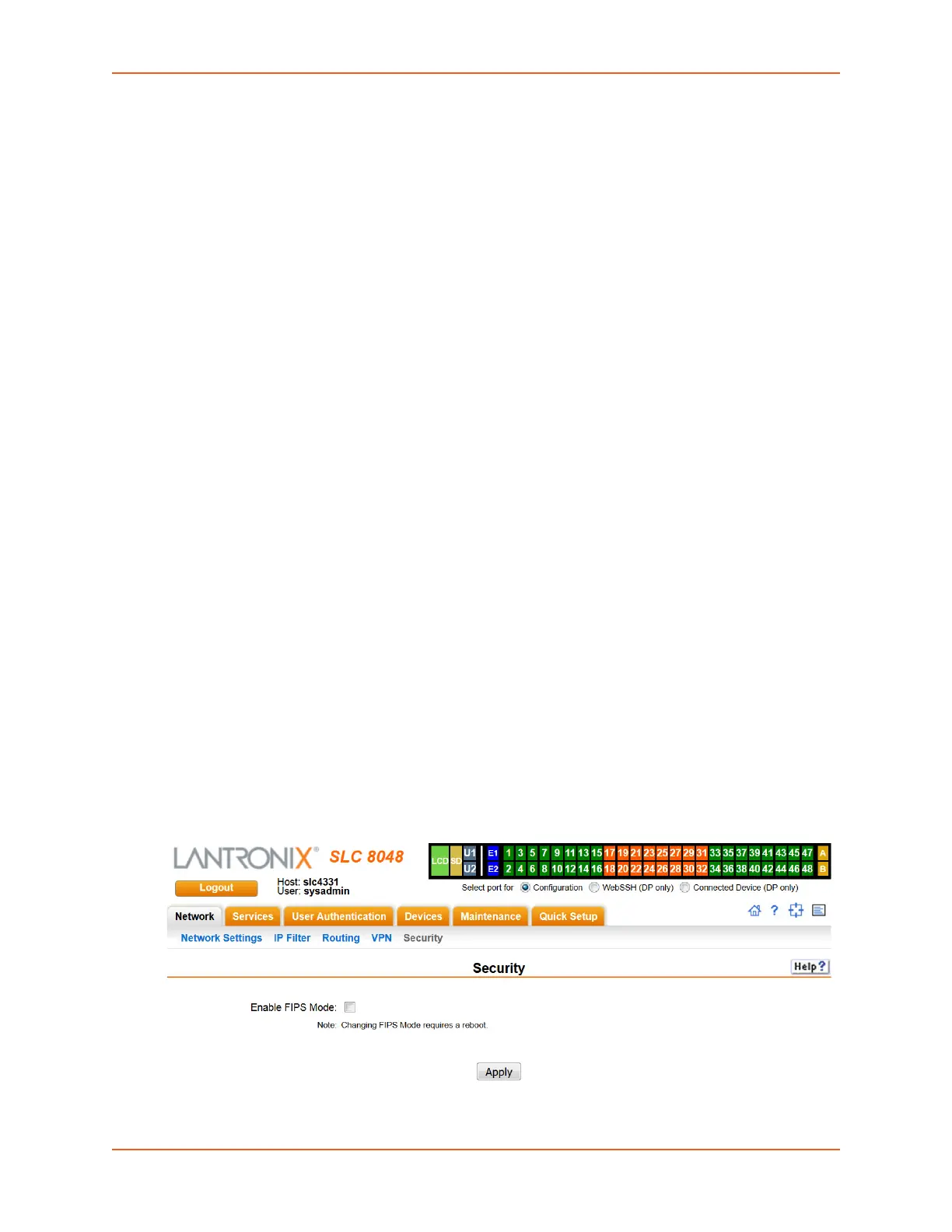

Figure 6-7 Network > Security

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
