5-100 Image Optimization
QT-Time Table Operation:
To add an entry:
Enter a heart rate and the referring systolic duration and then click [Update].
To delete an entry:
Select the required heart rate and systolic duration pair from the QT – Time Table and then click
[Delete].
5.14.5.2 Protocol Edit

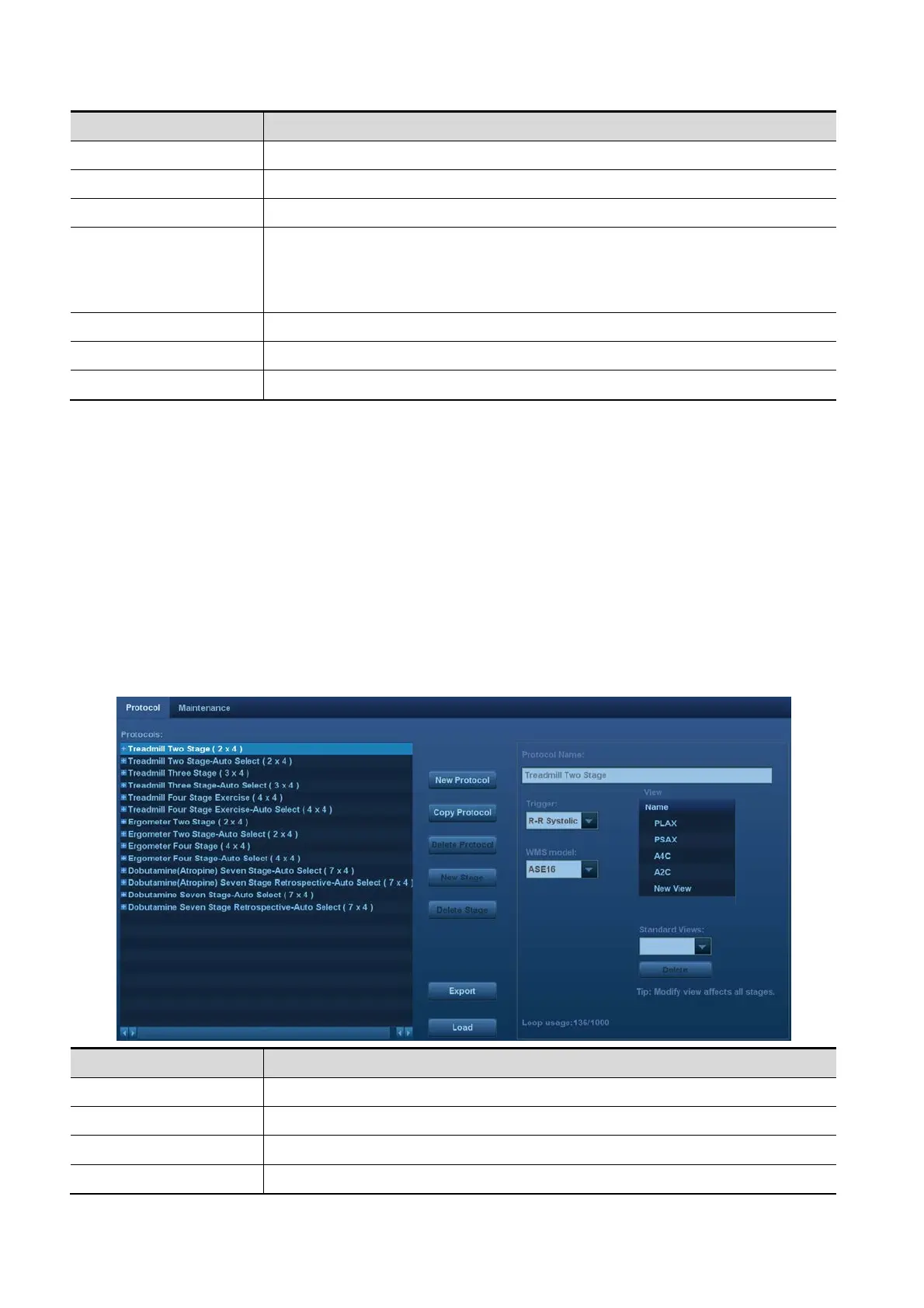

You can create, edit and delete Stress Echo protocols using the Protocol Editor dialog box.
Access the Protocol Editor dialog box by clicking [Protocol] in [Setup]->[Stress Echo]->[Protocol], or
clicking [Edit] on the Select Protocol screen as shown in the figure below:
Protocol name Enter the protocol name.
Trigger Set the trigger type.
WMS model Set the chamber segment division method.
Loop usage Displays the acquired loop number as well as the total usable loop number.
Item Function Description
Set the type of ROI: manual ROI or full-screen.
Overlay Select the items to be labeled on each loop.
WMS score type Set the chamber segment division method.
QT-Time table
To customize the length of systolic duration acquired for a specific heart rate.
If “Trigger” is selected as “R-R Systolic” in Protocol Editor, it will store the clip
duration. You can add and remove entries in this table. You can also load the
factory defaults.
Heart rate Enter the heart rate.
Syst. duration Enter the systolic duration.
Load factory To reset the QT time table.
