System Preparation 3-7
3.3 Monitor Adjustment
3.3.1 Monitor Position Adjustment
Gently hold the bottom edge of the monitor when adjusting its position.

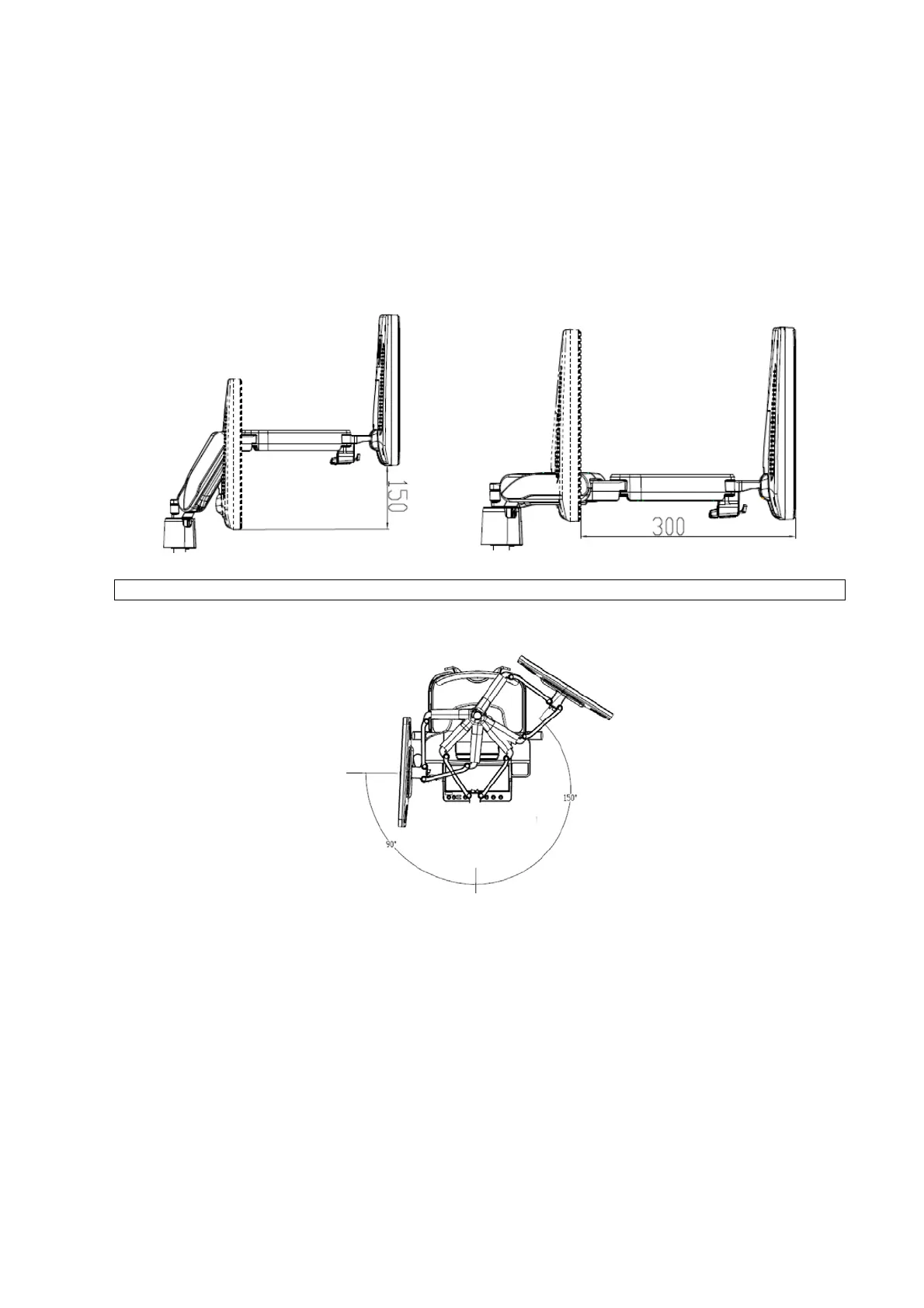

Height and displacement adjustment
Move the monitor support arm up or down to adjust the height, back and forth to adjust the
displacement
Take care not to trap your hands when adjusting the monitor up and down.
Rotate the monitor
The monitor can turn left 90 degrees to the right 150 degrees along with the support arm.
Tilt the monitor
When positioned vertically, the monitor can be tilted 20° backward and can be tilted forward to
a horizontal position. When transporting or moving the system, keep the monitor in the
horizontal position, as shown below:
To Next Page
