3-10 System Preparation
Before inserting the connector into the probe port, inspect the connector pin. If the pin is
bent, do not use the probe until it has been inspected/repaired/replaced.
3.5.2 Disconnecting a probe

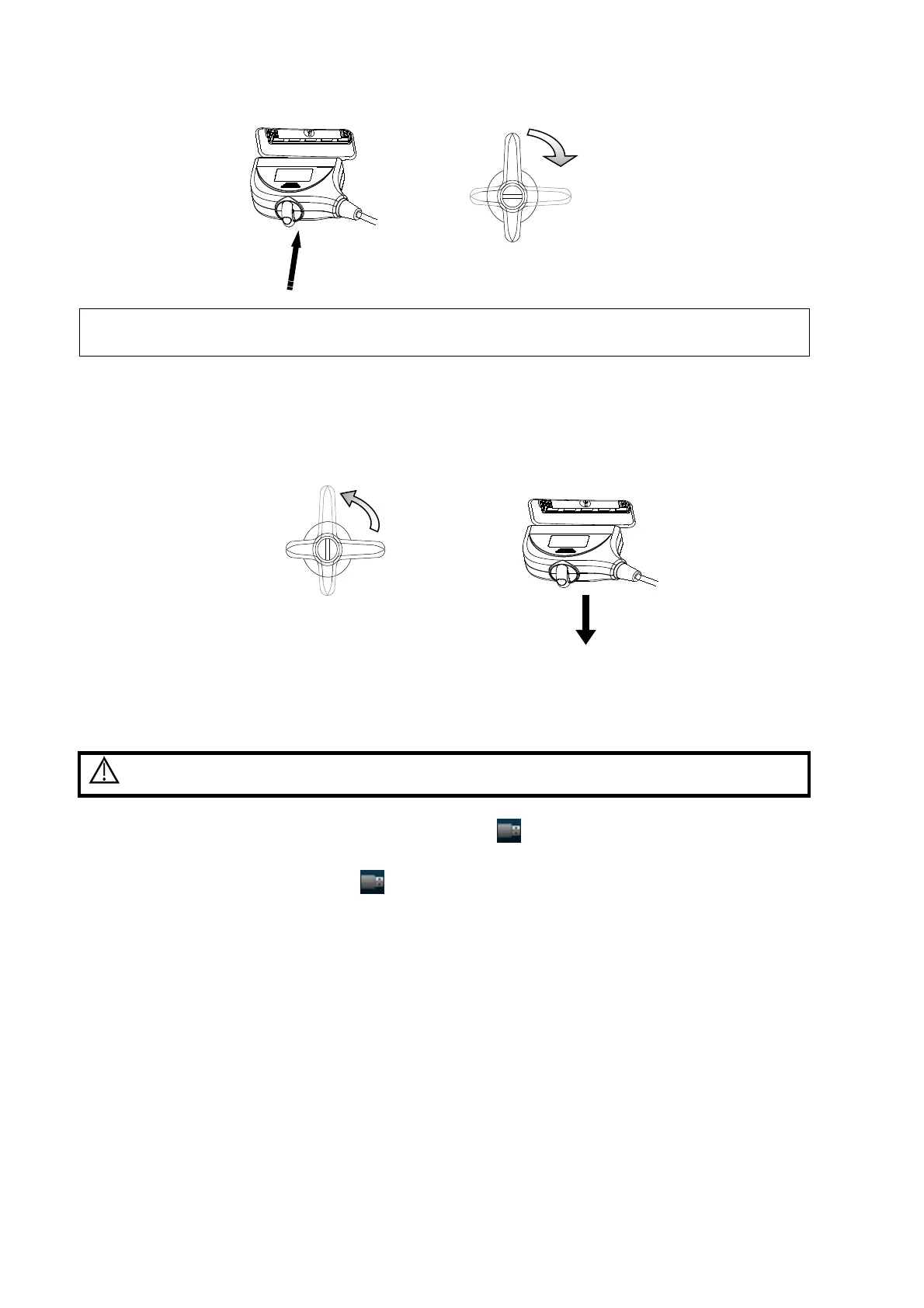

1. Turn the locking lever 90° counterclockwise to the vertical position. (Shown in the left figure)
2. Pull the transducer connector straight out vertically (shown in the figure below).
3.6 Connecting Peripheral Devices
3.6.1 Connecting USB Devices
DO NOT directly remove a USB memory device, as the USB
device and/or the system may become damaged.
When connecting a USB memory device to the ultrasound system via a USB port, a sound is
heard if it is connected successfully and the symbol
appears in the bottom-right corner of
the screen.
To remove the USB device: click
to open the [Remove USB Device] screen. Select the
device to be removed and click [OK]. A sound is heard when removing the USB memory
device.
3.6.2 Connecting a Foot Switch
The system supports USB port-type foot switches.
Connection
Directly insert the USB port of the foot switch into the system's applicable USB port.
