1
2
rpm
Pump 1
rpm
Pump 2
Key-to-line
Key-to-line
bar
bar
Pump 1
Pump 2
bar
bar
1
2
Key-to-line
Key-to-line
Operation
4-62
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Motor

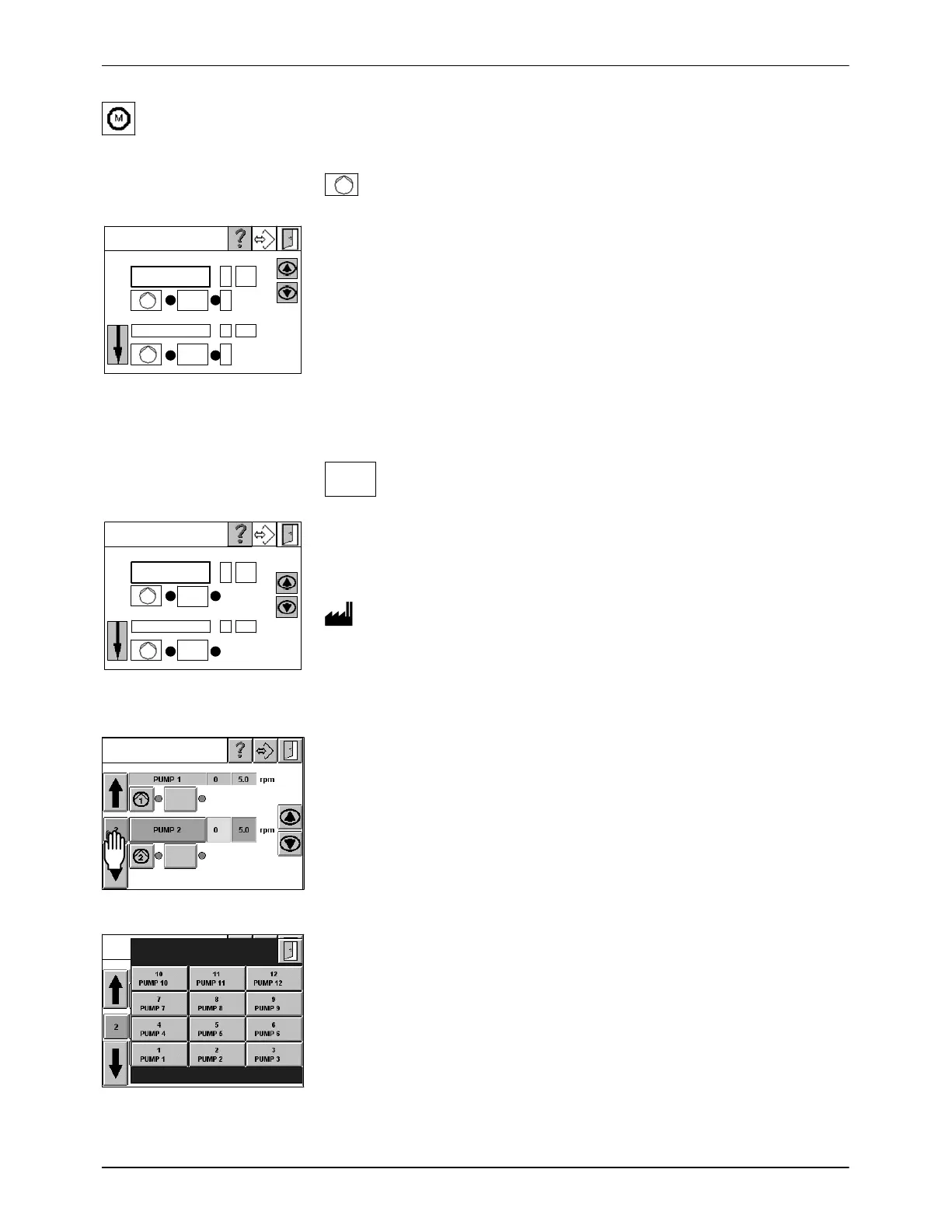

Switching On/Off Motor (Individual Enable)
Only enabled motors can be switched on. Prerequisite: The system is ready
for operation (green status display System ready and green indication lamp
on optional light tower lit).
rpm: revolutions per minute
Fig. 4-83 M1: Mode Speed
control with
pressure display
Key-to-
line
Selecting Key-to-line or Manual Mode
In manual mode the motor runs at the set speed; in key-to-line it runs at the
speed determined by the line speed signal value.
Key-to-line mode: Indication lamp lit.
Manual mode: Indication lamp not lit.
Fig. 4-84 M1: Mode Pressure
control
If there are more than three motors, the function Go to pump can be used.
Touch the key next to a pump field to use the function. A window showing all
of the pumps opens.
Fig. 4-85
This prevents having to scroll up/down with the arrow keys when there is a
large number of pumps.
Fig. 4-86
