Repair
7-30
P/N 7105144G
2008 Nordson Corporation
V
ersaBlue_NW

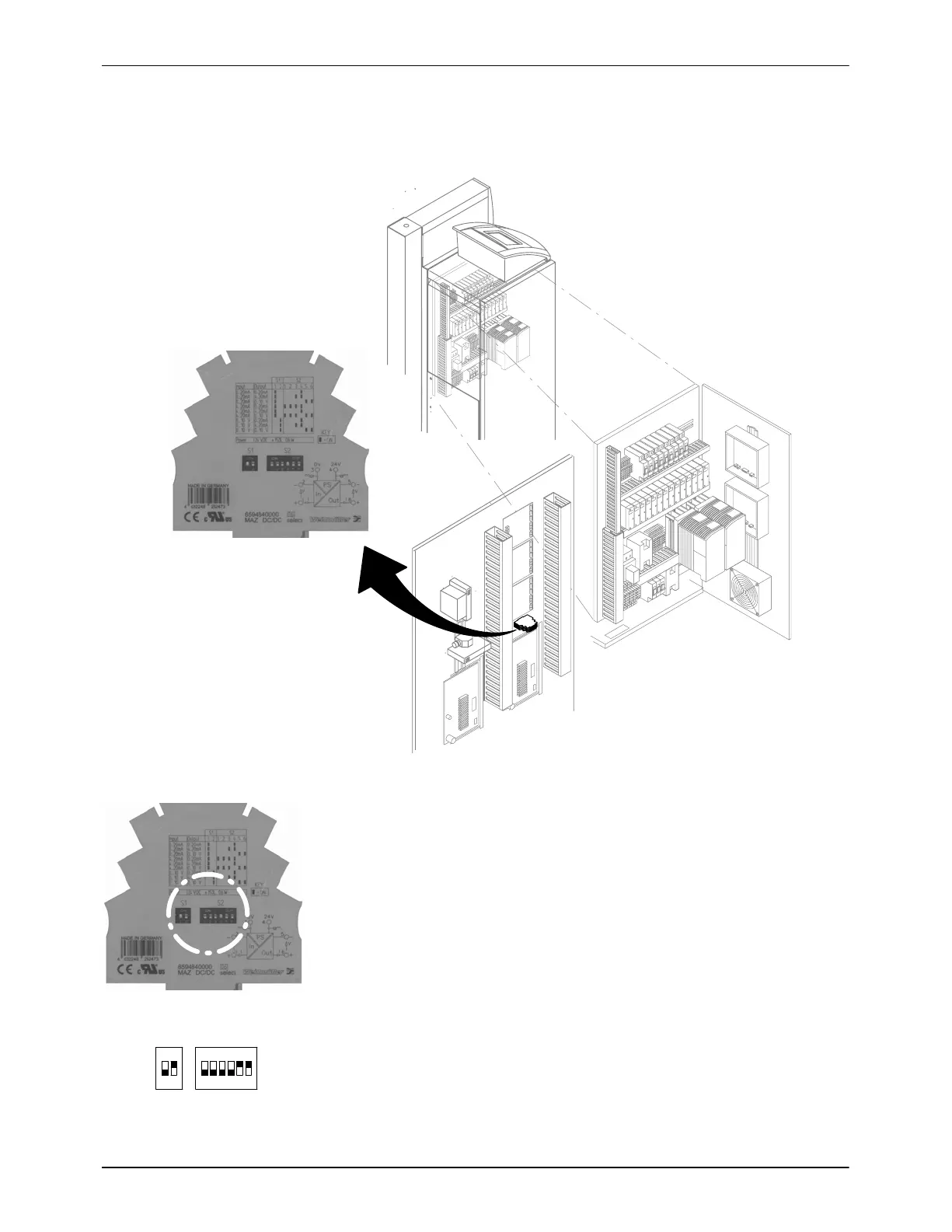

Replacing Coupler Component (Option: Separate Line
Speed Signal Inputs)
Fig. 7-46
Set the DIP switches on the coupler components always on
Input /Output
:
0
−
10 VDC / 0
−
10 VDC (Refer to Fig. 7-47).
Fig. 7-47
Coupler component
233
235
