Repair
7-2
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Control Panel
CAUTION: When a melter has no communication assembly, operate only
with the cover to protect the slot.
1
2
3
4
5
6

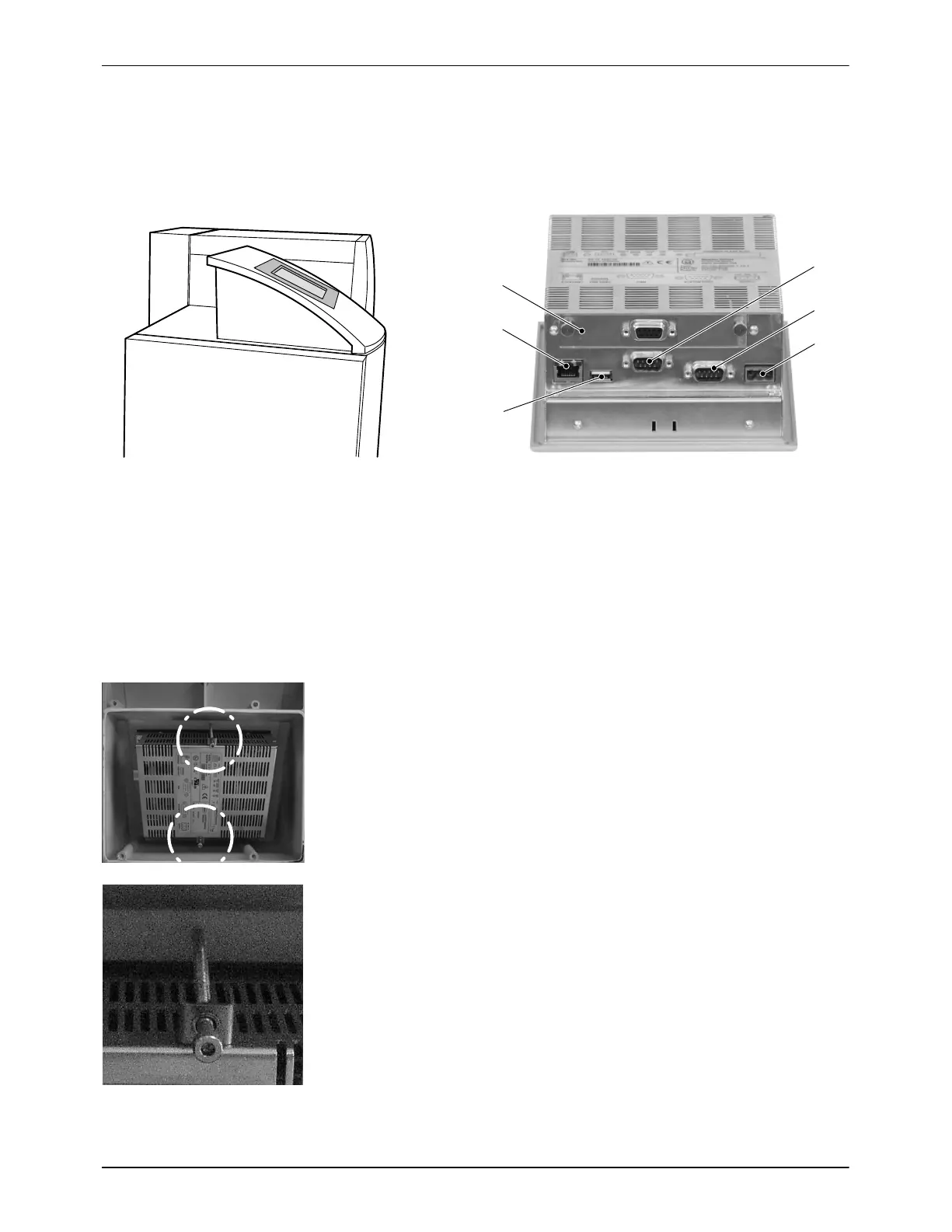

Fig. 7-1
1 Communication assembly
PROFIBUS-DP (option)*
2 RJ45 EtherNet
3 Not in use
4 CAN plug 9 pol. DSub male
5 RS232 plug 9-pin DSub male
System port
6 24 V
DC
power supply
Note: * If the system does not include the option PROFIBUS DP, there is a cover on this port.
Detaching Control Panel
1. Open electrical cabinet.
2. The control panel is fastened to the console with two clamping screws.
The two angled brackets slide into the IPC cooling slots.
3. Release the clamps, then remove the clamping screws and brackets.
4. Detach the connections, if necessary. The control panel can now be
removed.
CAUTION: When the control panel is put into place, tighten the clamping
screws only by hand.
Fig. 7-2
