Repair
7-16
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Replacing Coupling Magnets
WARNING: Strong magnetic field. Risk of injury. Maintain 0.3 m /
12 inches clearance between magnets and magnetic data storage
devices, sensitive electrical or electronic equipment, and persons with
pacemakers.
Risk of injury due to strong magnetic attraction.
The magnets can break when handled incorrectly.
NOTE: The indentations (pockets) in the coupling prevent the coupling
magnets from getting lost. However, if the magnets are lost despite this
feature, they can be ordered from Nordson. Refer to Parts List. The new
magnets must then be inserted in the indentations (pockets) as described
under Replacing Coupling.
CAUTION: The galvanic coating that protects from corrosion may not be
damaged.
Replacing Hopper Band Heater
WARNING: Disconnect equipment from the line voltage.
CAUTION: Hot surface. Allow the tank to cool off before beginning
retrofitting. Failure to observe can cause burns.
Removing Old Band Heater
1. Detach protective panels and insulation blanket.
2. Open the electrical cabinet.
3. Disconnect the electrical connections to the band heater (Refer to original
wiring diagram).
4. Thread the electrical line through the wall of and out of the electrical
cabinet.
5. Remove the band heater from the hopper.
6. Properly dispose of the band heater; it is no longer needed.

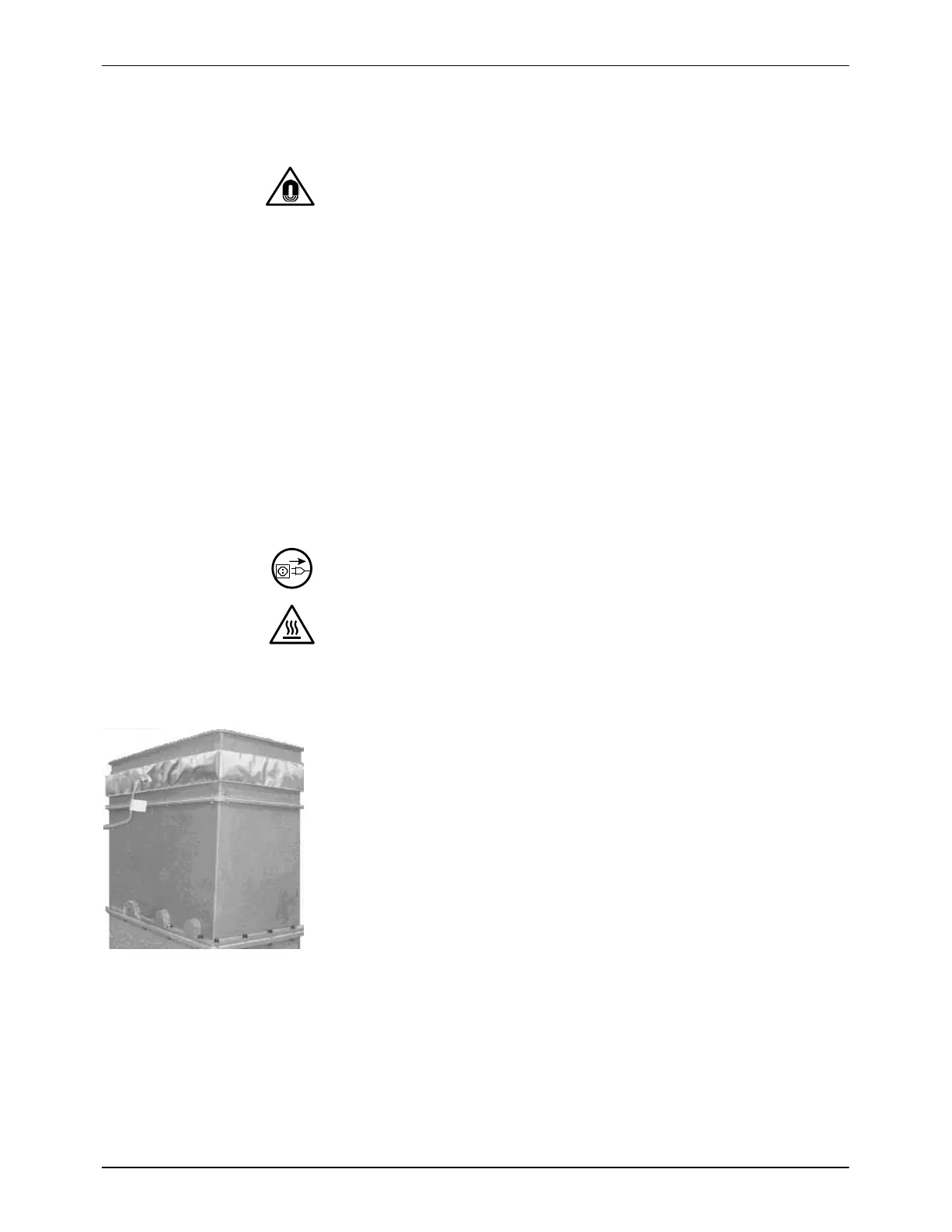

Fig. 7-26
To Next Page
