Repair
7-4
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Installing/Replacing the Communication Assembly
CAUTION: When a melter has no communication assembly, operate only
with the cover to protect the slot.
Please Observe!
A grounding wrist-strap should be worn to protect electronic parts from
electrostatic discharges when installing/removing the communication
assembly.
Install the communication assembly only when the IPC is deenergized.
1

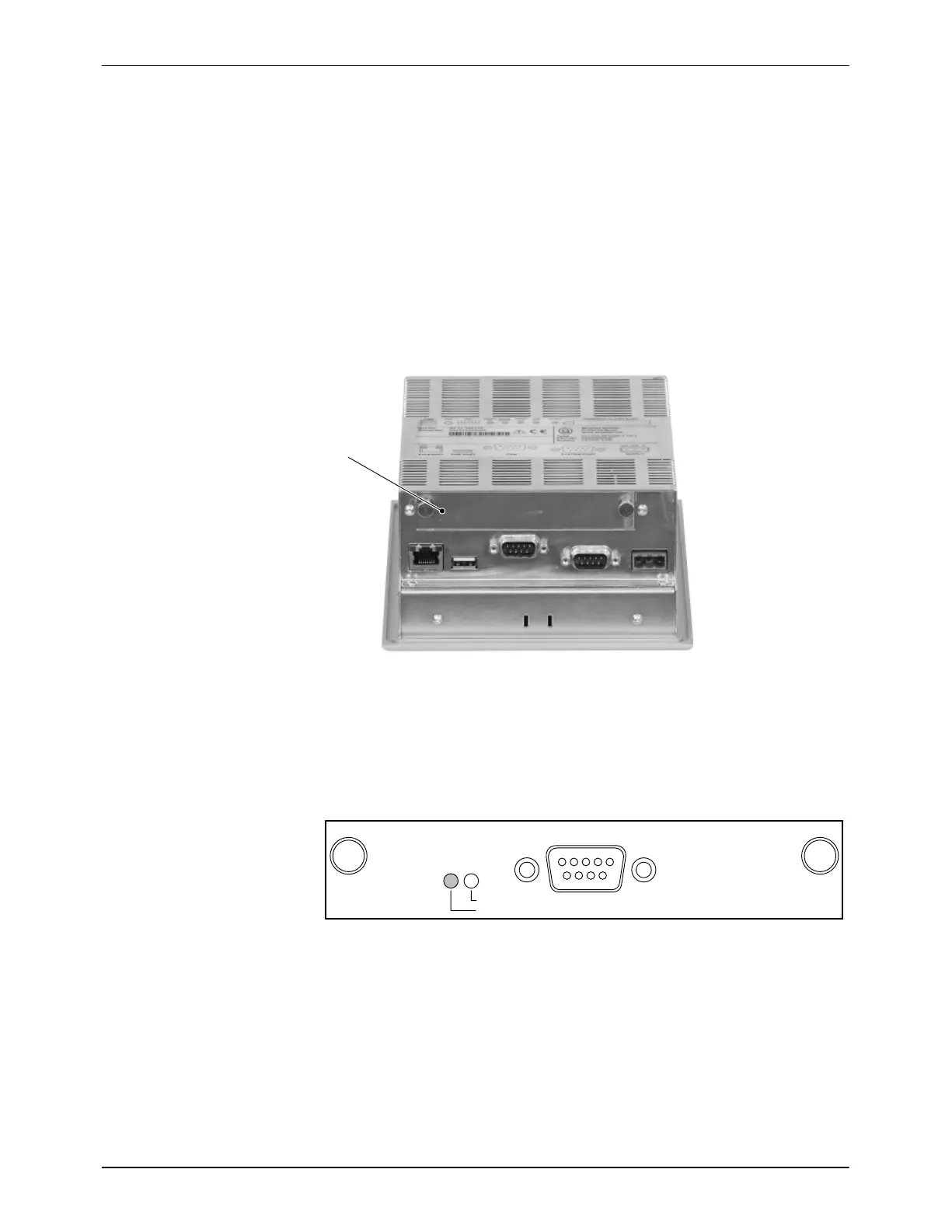

Fig. 7-4
1. Unscrew the cover (1, Fig. 7-4) and place aside for later use, or unscrew
and extract the old communication assembly.
2. Carefully slide in the new communication assembly until it clicks into
place.
ACTIVE
ERROR
PROFIBUS DP
XT-PDP-TP
Fig. 7-5 Communication assembly PROFIBUS DP
3. Secure the communication assembly with the two knurled screws.
