Installation
3-21
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW

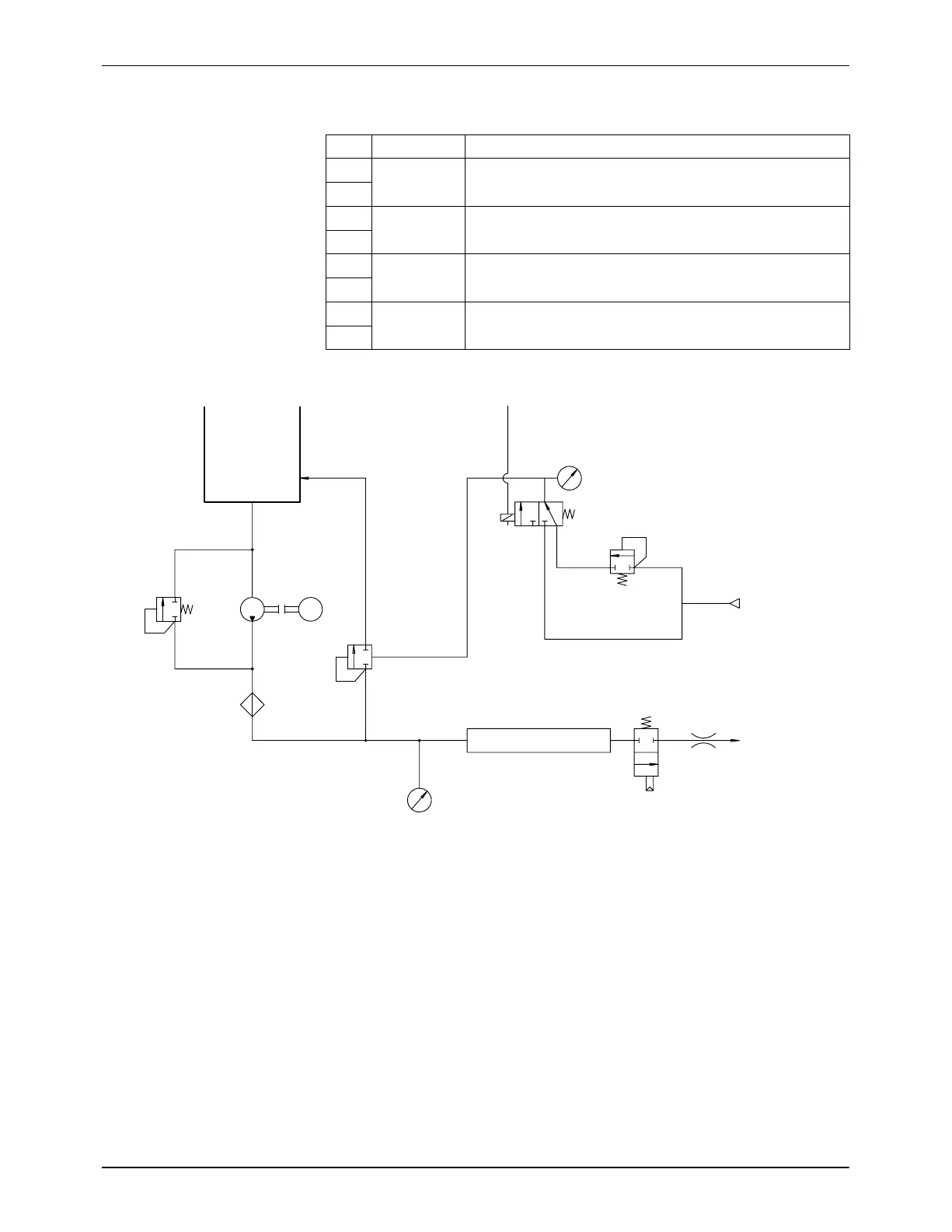

Interface Assignment Bypass Control
PIN Input Function
1
24 V
DC
/
4 W
Pneumatic pressure control valve 1
2
3
24 V
DC
/
4 W
Pneumatic pressure control valve 2
4
5
24 V
DC
/
4 W
Pneumatic pressure control valve 3
6
7
24 V
DC
/
4 W
Pneumatic pressure control valve 4
8
M
Solenoid valve
Electrical signal input
Gun open
Gun closed
Pressure controller
Nozzle
Hose
MotorPump
Filter
Tank
Gun
Compressed air
Pneumatic
pressure control
valve
Pressure display
Fig. 3-24 Option Bypass control (1 pump)
