Melter Description

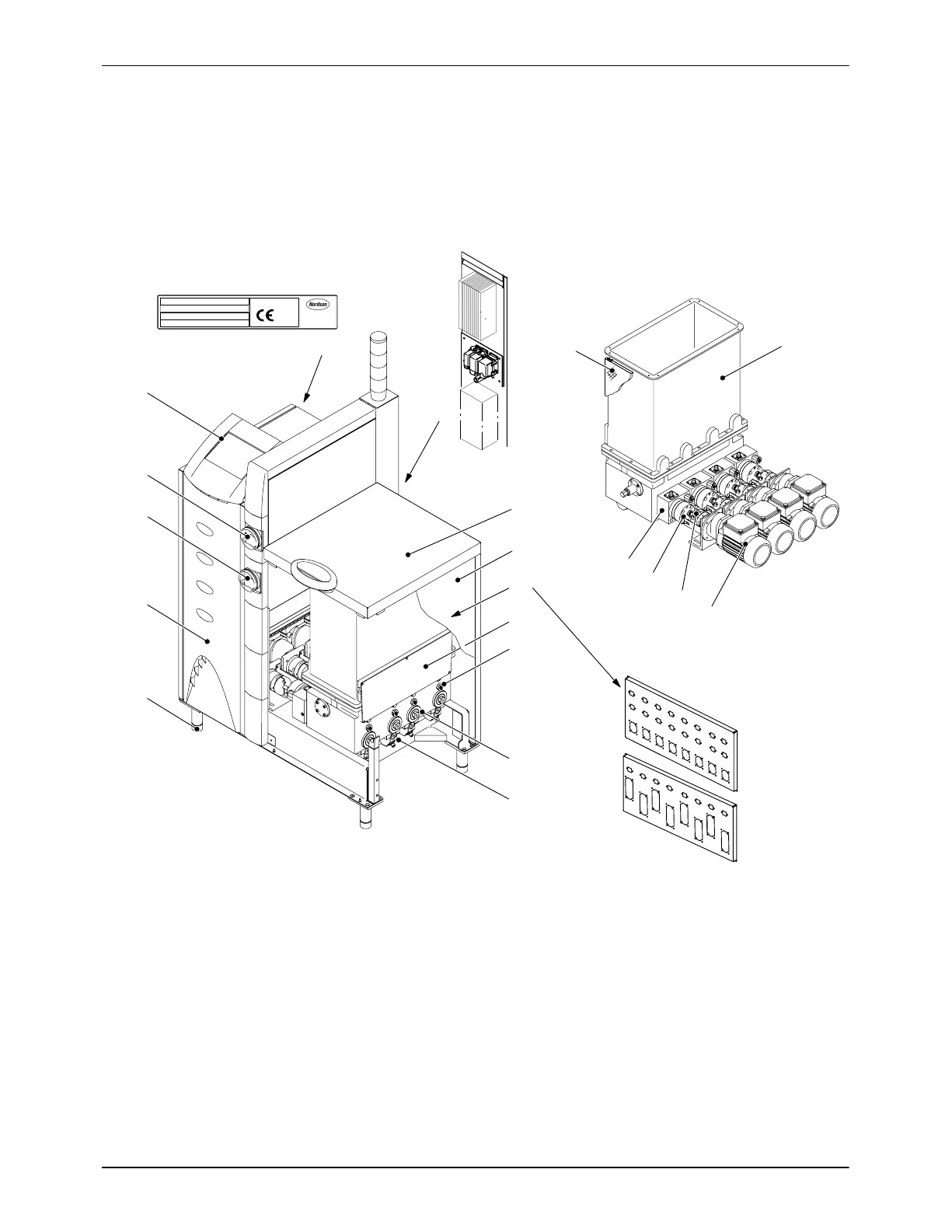

Illustration
11
19
18
17
15
16
6
5
4
2
1
7
8
11
14
13
12
9
3
10
Ni120
Pt 100
Fig. 2-1
1 Machine foot (option: casters)
2 Electrical cabinet
3 Motor circuit switch (option)
4 Main switch
5 Control panel
6 ID plate
7 Receptacles (XS2, XS3, XS5,
XSD, XSP, ...)
8 Tank lid
9 Protective panel
10 Receptacles for guns, hoses and
valve control
11 Tank
12 Pressure control valve
13 Filter cartridge
14 Hose connection
15 Motor
16 Coupling
17 Gear pump
18 Safety valve plate
19 Insulation blanket
