Operation
4-82
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Operation via the IPC Webserver (contd.)
Setting up Connection Between the Server and the Client (contd.)
Upload
Upload transfers the recipe files from the PC to the new memory board.
Browse...

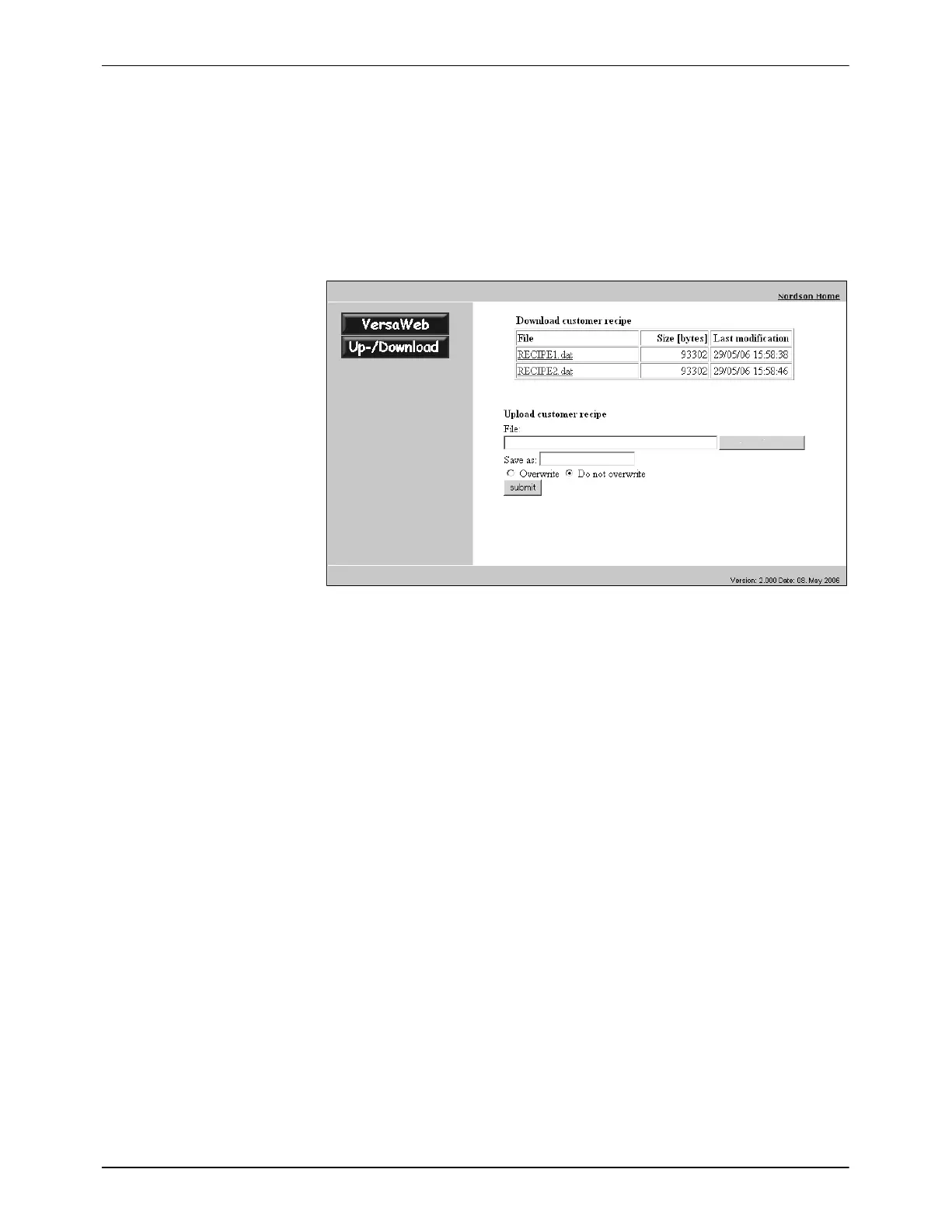

Fig. 4-115
Uploading recipe from the PC to the control system:
1. Click Up-/Download on the IPC Webserver.
2. Under Upload customer recipe, click on Browse and select the desired
recipe (Fig. 4-115).
3. Enter a file name by Save as (max. 8 characters).
4. The file extension should be .DAT.
5. Then click on submit.
6. For more than one recipe, repeat steps 2. to 5..
7. Load the desired recipe on the control panel (Refer to section Operation,
Customer Setup, Recipes)
