Repair
7-3
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Replacing Memory Board
WARNING: The memory board may be replaced only when the melter is
switched off.
NOTE: All of the set parameters are lost when the memory board is
replaced. The melter is returned to the original state.
1 4
52
3

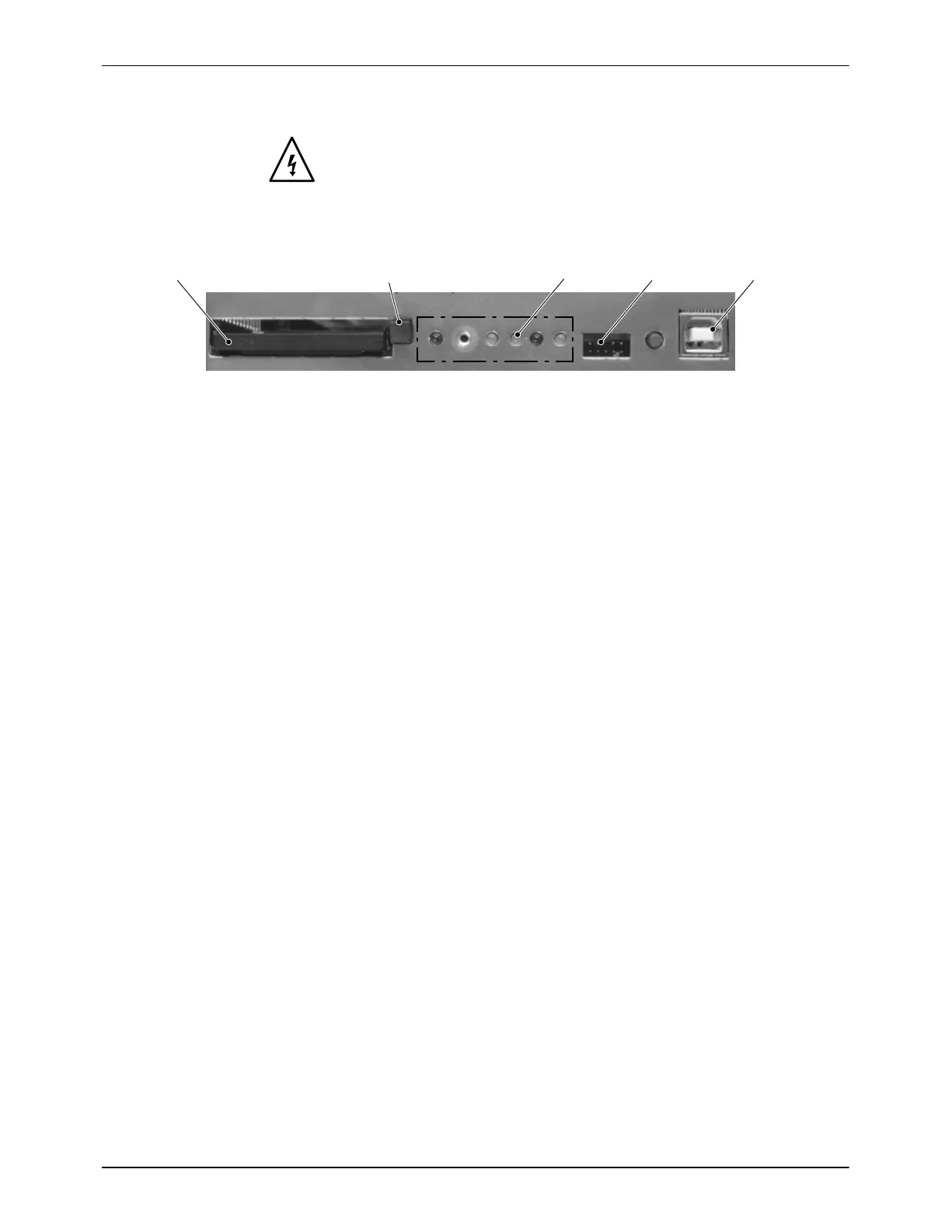

Fig. 7-3
1 Memory board CompactFlash
2 Eject button for memory board
3 Indication lamps (LEDs)
4 Not in use
5 Not in use
1. Switch melter off with main switch.
2. Refer to Detaching Control Panel.
3. Press the eject button and remove the old memory board.
4. Carefully slide in the new memory board until the eject button pops out
again.
5. Reconnect any cables that may have come loose.
6. Attach control panel.
7. Switch on the melter again.
8. Enter configuration code.
Refer to section Operation, Melter Configuration.
