Installation
3-23
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Light Tower
Installing Kit (Accessory)
WARNING: Disconnect the unit from the line voltage.
5
3
4
1
2

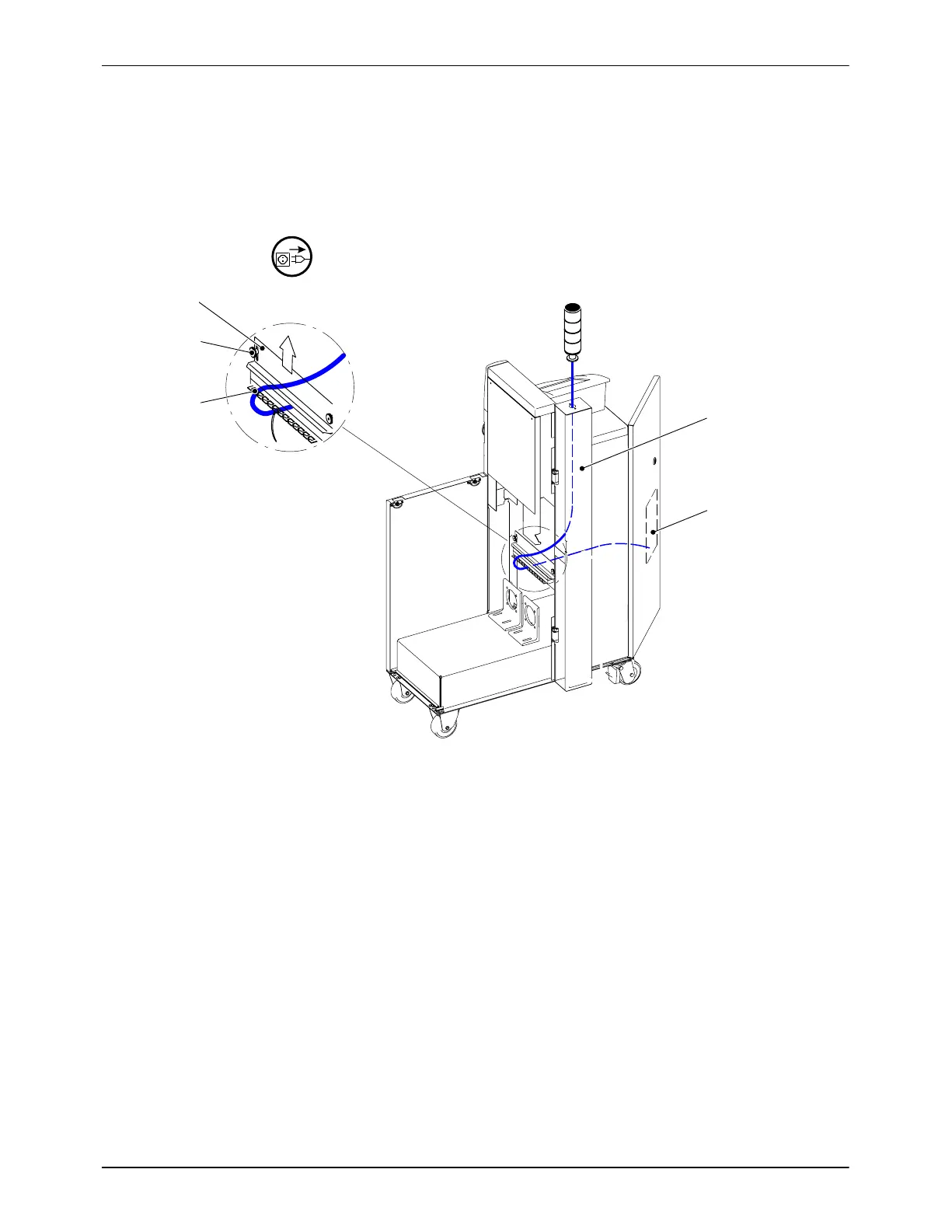

Fig. 3-26
1. Break out the plate from the top of the melter tower (1) along the
punched lines and remove.
2. Swivel melter tower open.
3. Guide cable through the resulting hole.
4. Use the two screws M5 to fasten the light tower.
5. Guide the cable through the top opening of the melter tower and to the
inside wall (tank side) of the electrical cabinet.
6. Release knurled nut (4) from the bracket Cable duct (3). Slide bracket
up in the slot.
7. Guide the cable through the resulting hole and then through the cable
ducts to the I/O board (2) in the electrical cabinet door.
To Next Page
