X3
Installation
3-24
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Light Tower (contd.)
Installing Kit (Accessory) (contd.)
8. Insert the light tower plug into X3 of the I/O board #1 (Refer to
Fig. 3-27).
9. Use a cable tie to fasten the cable to one of the metal teeth (5) below
the bracket Cable duct.
10. Slide the bracket down and tighten knurled nut.
11. To activate the light tower, the new software configuration code must be
entered. Box 17 code: W.
Refer to section Operation, Key Melter configuration (V26 in the Control
Panel Overview).

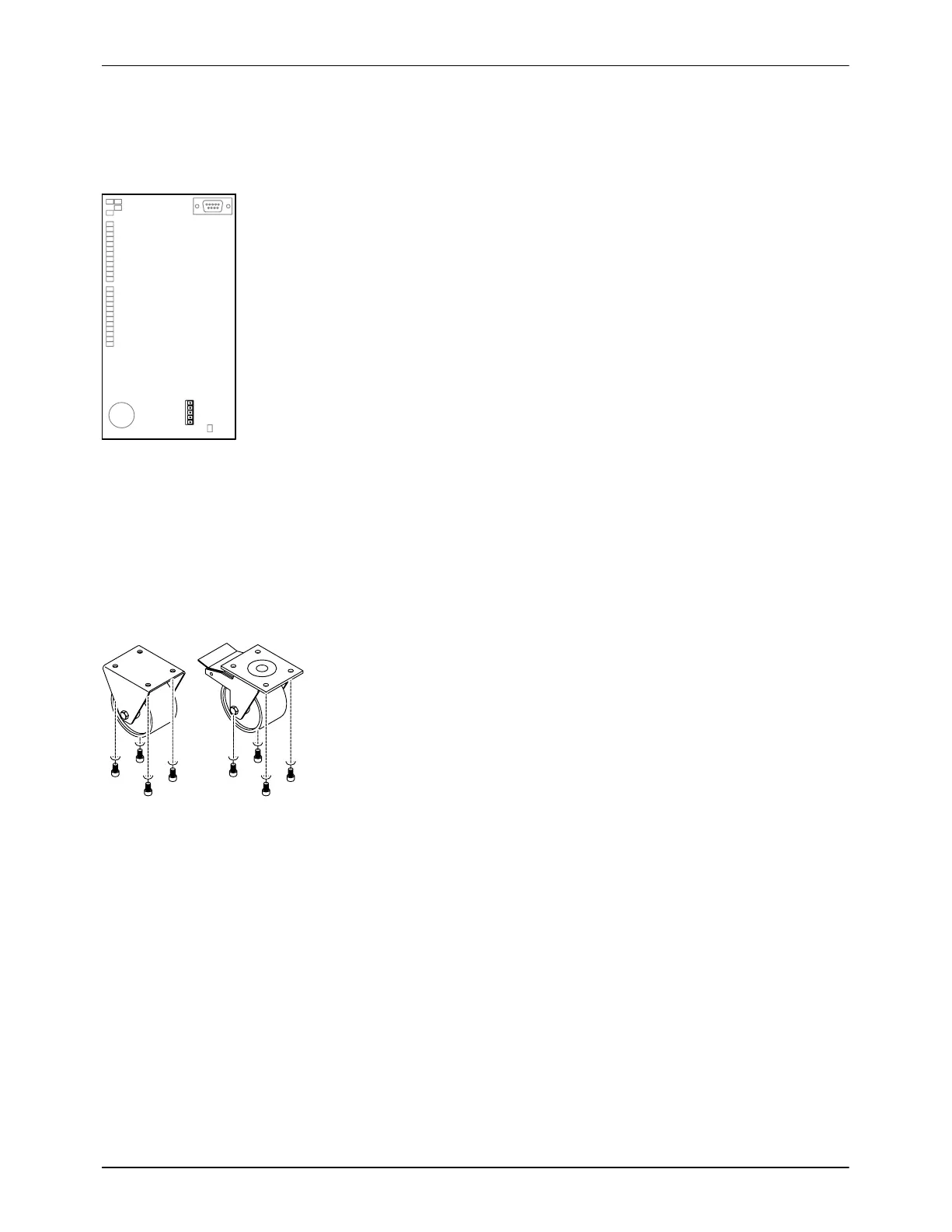

Fig. 3-27
Casters
Installing Kit (Accessory)
The kit consists of a pair of casters with brakes and a pair without brakes.
NOTE: Attach the casters with brakes (Fig. 3-28, right) to the side of the
electrical cabinet.
1. Lift the melter with a suitable floor conveyor (lift truck or fork lift).
2. Detach machine feet.
Fig. 3-28
NOTE: The back plug plate must be removed before the back left machine
foot can be detached.
3. Attach casters. Use the fastening holes for the machine feet to attach
the wheels.
To Next Page
