Temperature setpoints
°C °C
ALL HOSES
ALL GUNS
ALL
RESERVOIR
Hose 1
Gun 1
50
230
51
22048
23047
220
GRID
Temperature setpoints
°C °C
ALL HOSES
ALL GUNS
ALL
RESERVOIR
Hose 1
Gun 1
50
230
51
22048
23047
Go to application group
Operation
4-27
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW

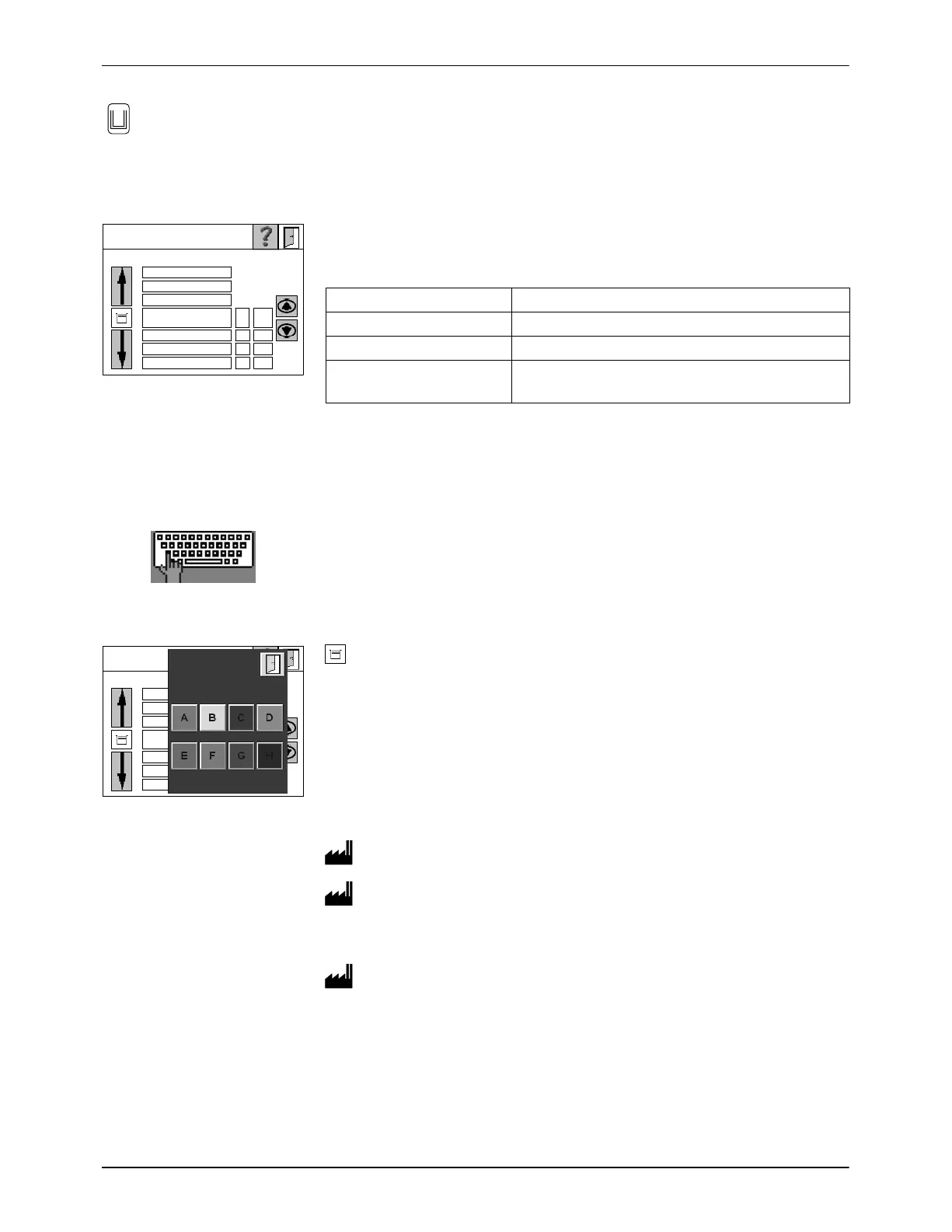

Temperature Parameters
VORSICHT: Consider the maximum operating temperature of the installed
gun and the other heated system components when setting temperatures.
Left temperature column (yellow): Actual values
Right temperature column (green): Setpoints
Display
Meaning
Only setpoints Channel is deactivated
Only actual values Channel is activated and in display mode
Setpoints and actual
values
Channel is activated and in control mode
Fig. 4-17 T1
ALL: All temperature channels receive the same setpoint.
ALL HOSES / ALL GUNS: All temperature channels in the respective group
receive the same setpoint.
NOTE: If all of the temperature channels or all temperature channels of a
group do not have the same setpoint, a keyboard symbol is visible instead
of a setpoint. Touch symbol and set temperature with the input window.
Fig. 4-18 Keyboard symbol
Touch the Channel symbol/number key. A window opens; from here the
first temperature channel of the selected application group can be
accessed.
Fig. 4-19
Grid and reservoir: 175 °C (347 °F)
Hose 1 / Gun 1: Deactivated
or 175 °C (347 °F) when activated
All other channels: Deactivated
or 40 °C (104 °F) when activated
