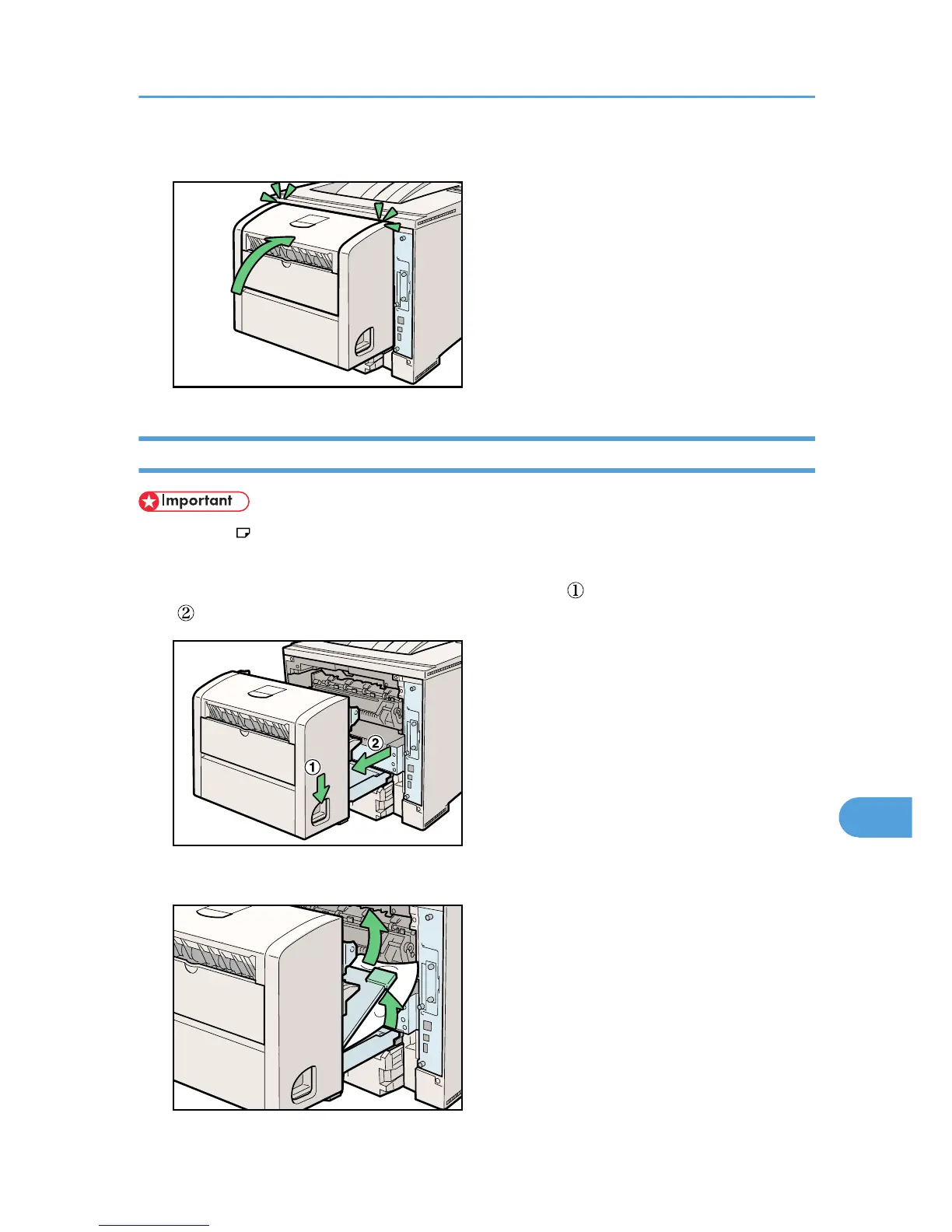

6.
Close the cover of the duplex unit.
BMU091S
Removing Misfed Paper Inside the Duplex Unit
•
When A5
paper misfeeds,
you might not
be able to
remove it
by pulling the
duplex unit
out. In this
case, pull the paper tray out and remove the paper.
1.
Push
down the
lever on
the right
side of
the duplex
unit
(
),
and then
pull it
out until
it stops
(
).
BMU077S
2.
Lift the guide board inside the duplex unit, and remove the misfed paper.
BMU092S
When "Remove Misfeed Duplex Unit" Appears
201
10
218
