Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 107
Chapter 6 Configure and Start up the Kinetix 5300 Drive System
Install the Kinetix 5300 Add-On Profile
Download Add-On profiles (AOP) from the Product Compatibility Download
Center (PCDC) website: rok.auto/pcdc.
Follow these steps to download the Kinetix 5300 Add-On profile.

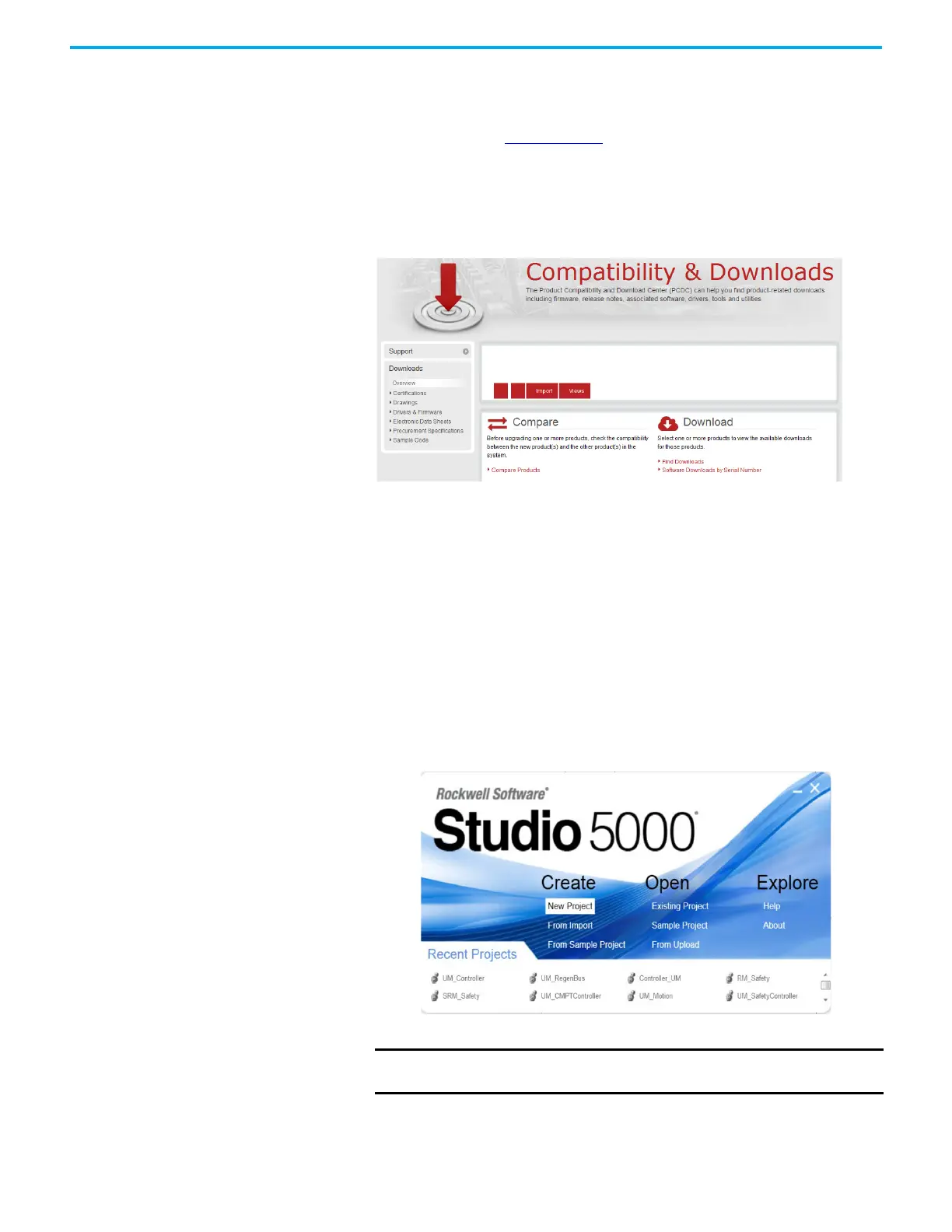

1. Go to the Product Compatibility Download Center.
The Compatibility & Downloads web page appears.
2. Click Download.
3. Enter Kinetix 5300 in the Search PCDC window.
4. Click the appropriate firmware revision and follow prompts to
download.
5. Extract the AOP zip file and run Setup.
Configure the Logix 5000
Controller
These procedures assume that you have wired your Kinetix 5300 drive system.
In this example, the GuardLogix® 5580 controller, ControlLogix 1756-ENxT
communication module, and CompactLogix 5580 controller dialog boxes are
shown.
Follow these steps to configure the controller.
1. Apply power to your controller and open your Logix Designer
application.
2. From the Create menu, choose New Project.
IMPORTANT If you are configuring a safety application, you must use a
GuardLogix or Compact GuardLogix safety controller.
