Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 69
Chapter 5 Connect the Kinetix 5300 Drive System
Determine the Input Power
Configuration
Before wiring input power to your Kinetix 5300 system, you must determine
the type of input power within your facility. The drive is designed to operate
with only grounded-wye input power. The grounded-wye power configuration
lets you ground your single-phase or three-phase power at a neutral point.
This section contains examples of typical single-phase and three-phase facility
input power that is wired to single-phase and three-phase Kinetix 5300 drives.
Match your secondary to one of the examples and be certain to include the
grounded neutral connection.
For Kinetix 5300 drive power specifications, see Kinetix 5700, 5500, 5300, and
5100 Servo Drives Specifications Technical Data, publication KNX-TD003
.
For Kinetix 5300 drive interconnect diagrams, see Power Wiring Examples
on
page 170.
Three-phase Input Power
This example illustrates grounded three-phase power that is wired to three-
phase Kinetix 5300 drives when phase-to-phase voltage is within drive
specifications.

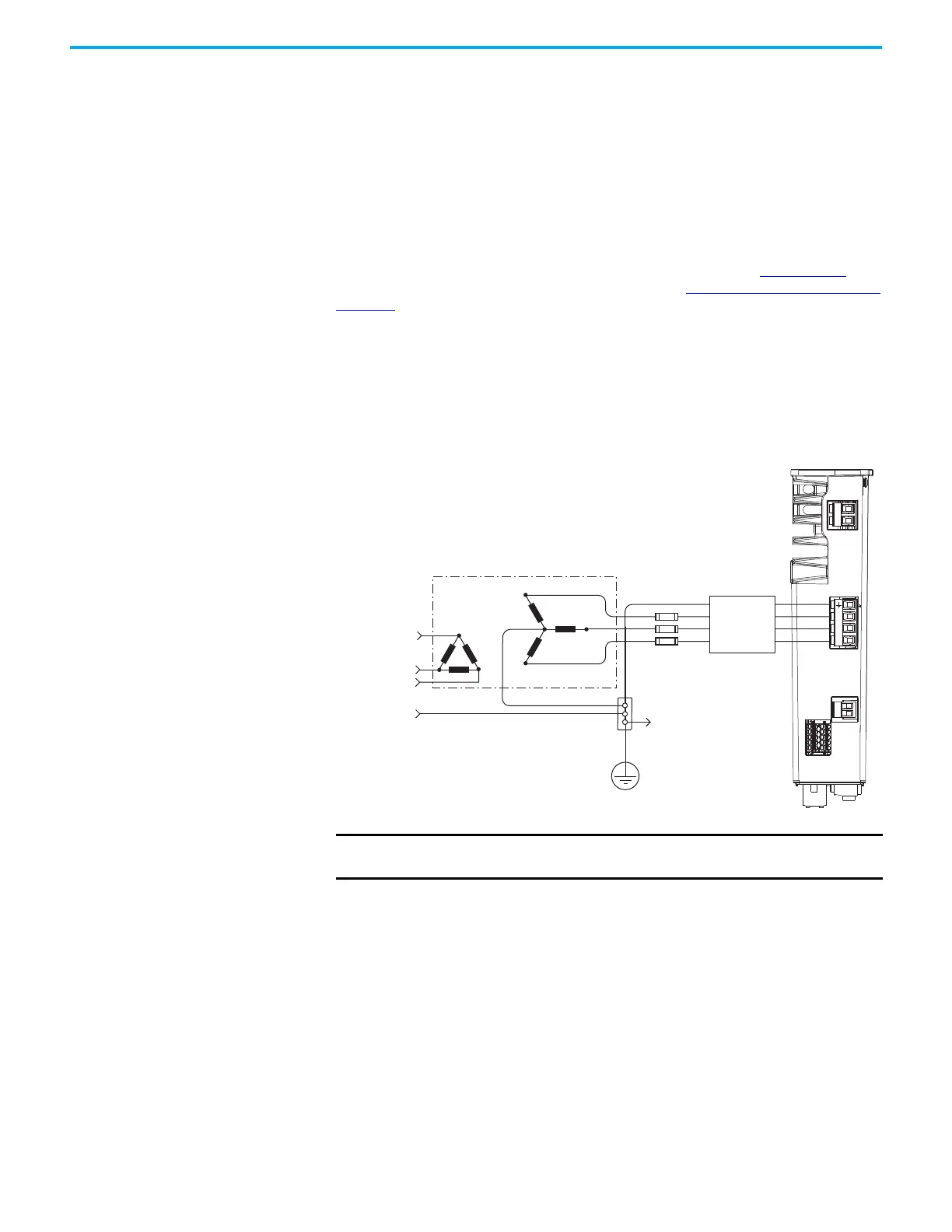

Figure 34 - Three-phase (230V or 480V) Grounded Power Configuration (wye secondary)
L3
L2
L1
L3
L2
L1
L3L2
L1
24+
DC+ SH
24-
SB+
SB-
S1
SC
S2
2
1
Transformer
Three-phase
Input VAC
Phase Ground
Transformer (WYE) Secondary
Bonded Cabinet Ground
Ground Grid or
Power Distribution Ground
Three-phase
AC Line Filter
(can be required for
CE)
Kinetix 5300 Servo Drive
(top view)
Circuit
Protection
Connect to
Ground Stud
IMPORTANT Kinetix 5300 drives must use center-grounded wye secondary input power
configurations.
