Rockwell Automation Allen-Bradley Kinetix 5300 User Manual

172 Rockwell Automation Publication 2198-UM005C-EN-P - February 2022
Appendix A Interconnect Diagrams
Shunt Resistor Wiring
Example
Bulletin 2198-Rxxx shunts and 2097-Rx shunt resistors are available for
Kinetix 5300 drives.
• For shunt specifications, see Kinetix 5700, 5500, 5300, and 5100 Servo
Drives Specifications Technical Data, publication KNX-TD003
.
• For specifications specific to your Kinetix 5300 drive application, see
Passive Shunt Considerations
on page 30.
• When installing Bulletin 2097 shunts, see the Bulletin 2097 Shunt
Resistor Installation Instructions, publication 2097-IN002
.
• When installing Bulletin 2198 shunts, see Kinetix 5700 Passive Shunt
Modules Installation Instructions, publication 2198-IN011
.

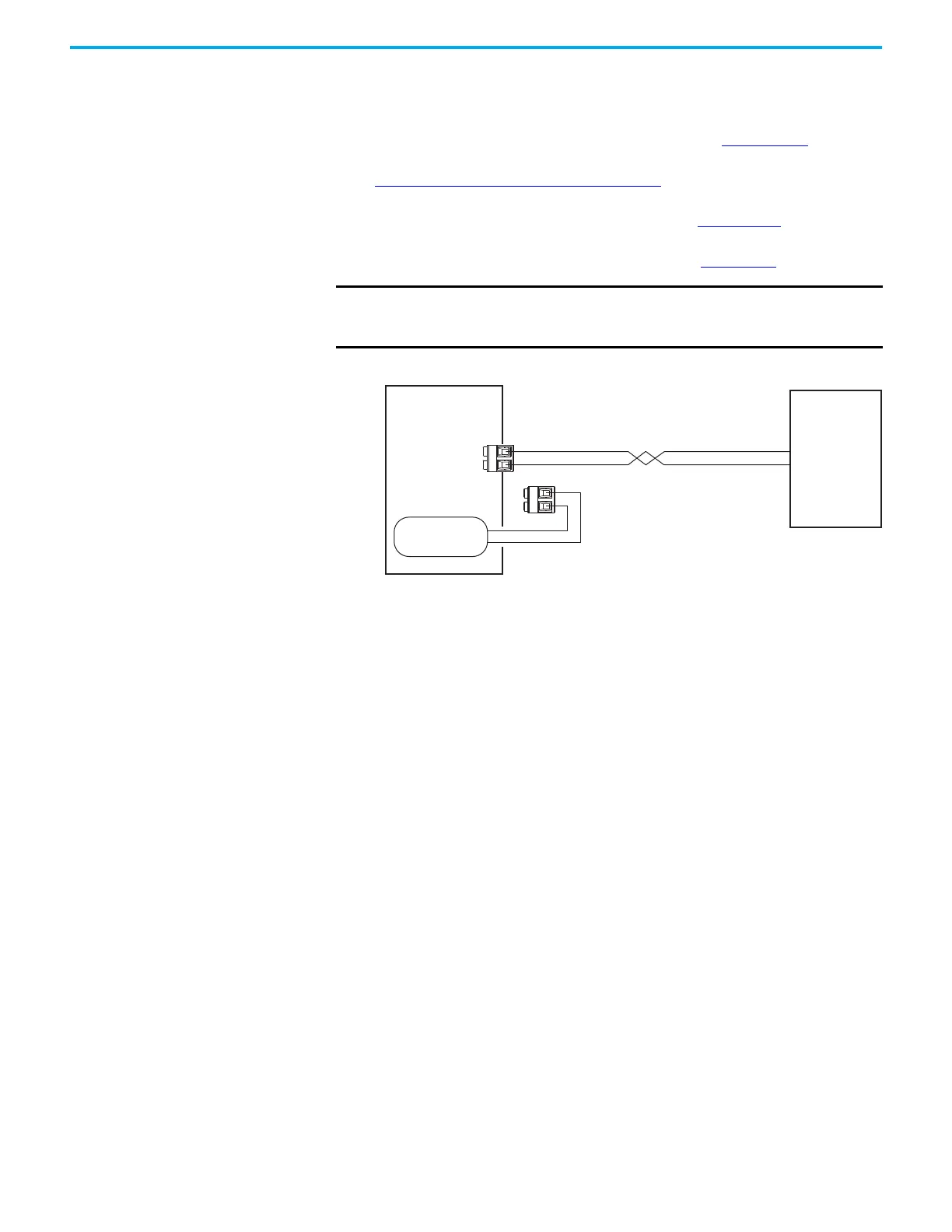

Figure 81 - External Shunt Resistor Wiring Example
IMPORTANT A spare 2-pin shunt-connector plug is included with each drive for use with
an external shunt. Unplug the internal shunt connector and connect the
external shunt wires to the spare shunt-connector plug.
DC+
SH
2198-Cxxxx-ERS
Kinetix 5300 Drive
2198-Rxxx or
2097-Rx
Shunt
Resistor
Shunt
Connector
Internal Shunt
Leave the internal shunt wires
terminated in its own shunt
connector plug.
Note 7
