Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 83
Chapter 5 Connect the Kinetix 5300 Drive System
Cable Preparation for Kinetix TLP Motor Power Cables
For 2090-CTPx-MxDF 10…18 AWG motor cables you must remove the ring lug
and strip the insulation back the appropriate length for the ground conductor.
For 2090-CTPx-MxDF 6…8 AWG motor cables you must remove the ring lugs
and strip the insulation back the appropriate length for U,V,W and ground
conductors.

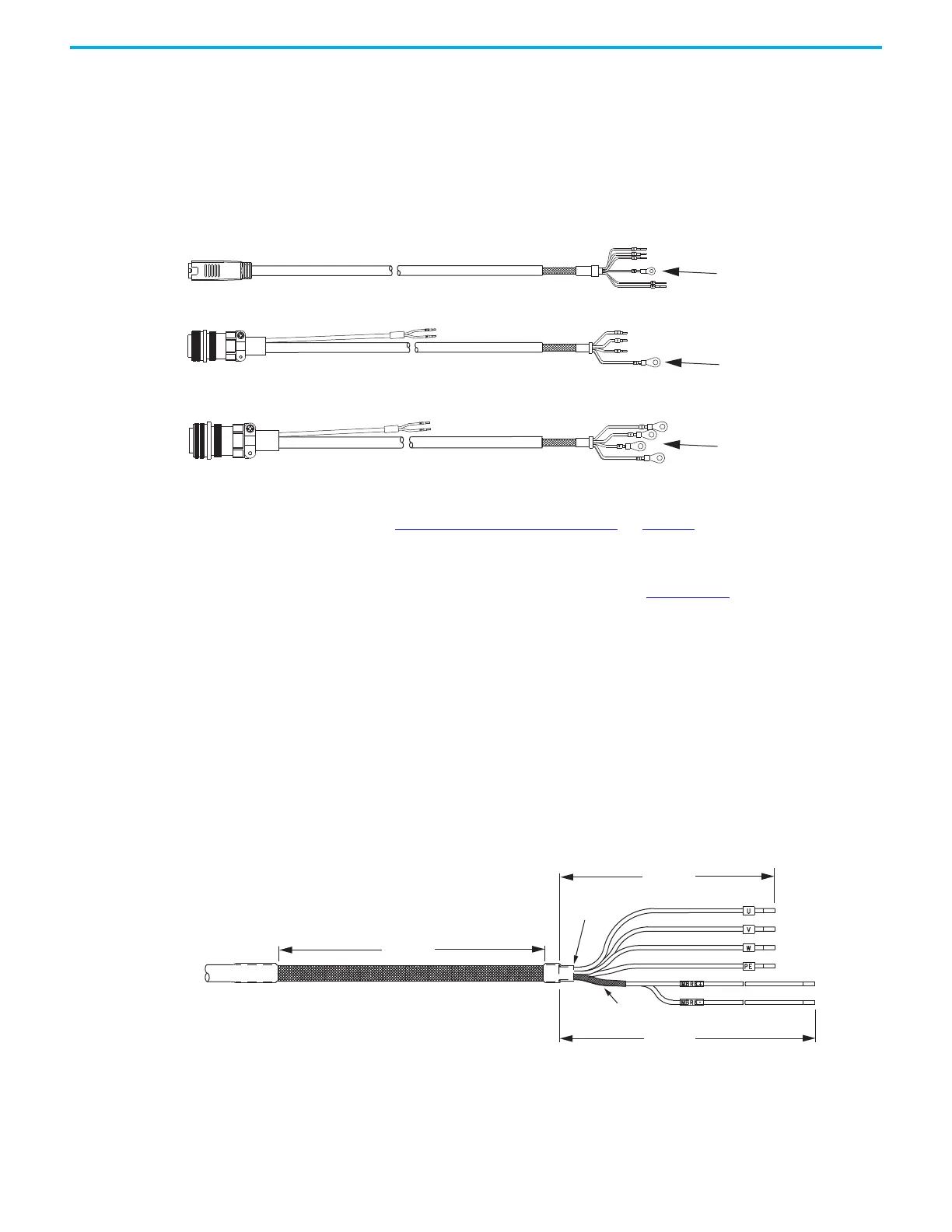

Figure 43 - 2090-CTPx-MxDF Power/brake Cable Dimensions
Refer to Motor Power Connector Wiring on page 79 for the appropriate strip
length.
If you are building your own cables, see Build Your Own Kinetix TLP Motor
Cables Installation Instructions, publication 2090-IN048
, to attach motor-side
power and feedback connector kits to bulk cable.
Cable Preparation for 2090-CPxM7DF Motor Power Cables
2090-CPxM7DF cables are available with and without brake conductors. This
explanation addresses 2090-CPBM7DF cables with brake conductors.
2090-CPWM7DF cables do not include brake conductors.
Motor Power/Brake Cable Series Change
Motor power and brake conductors on 2090-CPBM7DF (series A) cables have
the following dimensions from the factory.
Figure 44 - 2090-CPBM7DF (series A) Power/brake Cable Dimensions
2090-CTPB-MDDF-08xxx
2090-CTPB-MEDF-06xxx
2090-CTPB-MADF-16xxx
2090-CTPB-MADF-18xxx
2090-CTPB-MCDF-16xxx
2090-CTPB-MCDF-12xxx
2090-CTPB-MDDF-12xxx
Remove ground lug.
Remove ground lug.
Remove U, V, W, and ground lug.
635 (25)
102 (4.0)
150 (5.9)
Dimensions are in mm (in.)
Power Conductors
Brake
Conductors
Kinetix MP Motors
and Actuators
Brake Shield (remove)
Edge of Heat
Shrink
Overall Cable Shield
