Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 199
Appendix C Motor Control Feature Support
Basic Volts/Hertz
Volts/hertz operation creates a fixed relationship between output voltage and
output frequency. Voltage is applied to the motor, which is based on the
operating frequency command at a fixed volts/hertz ratio. The ratio is
calculated from the motor nameplate data and entered into the Logix Designer
application>Axis Properties>Frequency Control category.
The Basic Volts/Hertz method provides various patterns. The default
configuration is a straight line from zero to rated voltage and frequency. As
seen in Figure 94
, you can change the volts/hertz ratio to provide increased
torque performance when required by programming five distinct points on
the curve.
Table 93 - Basic Volts/Hertz Definitions

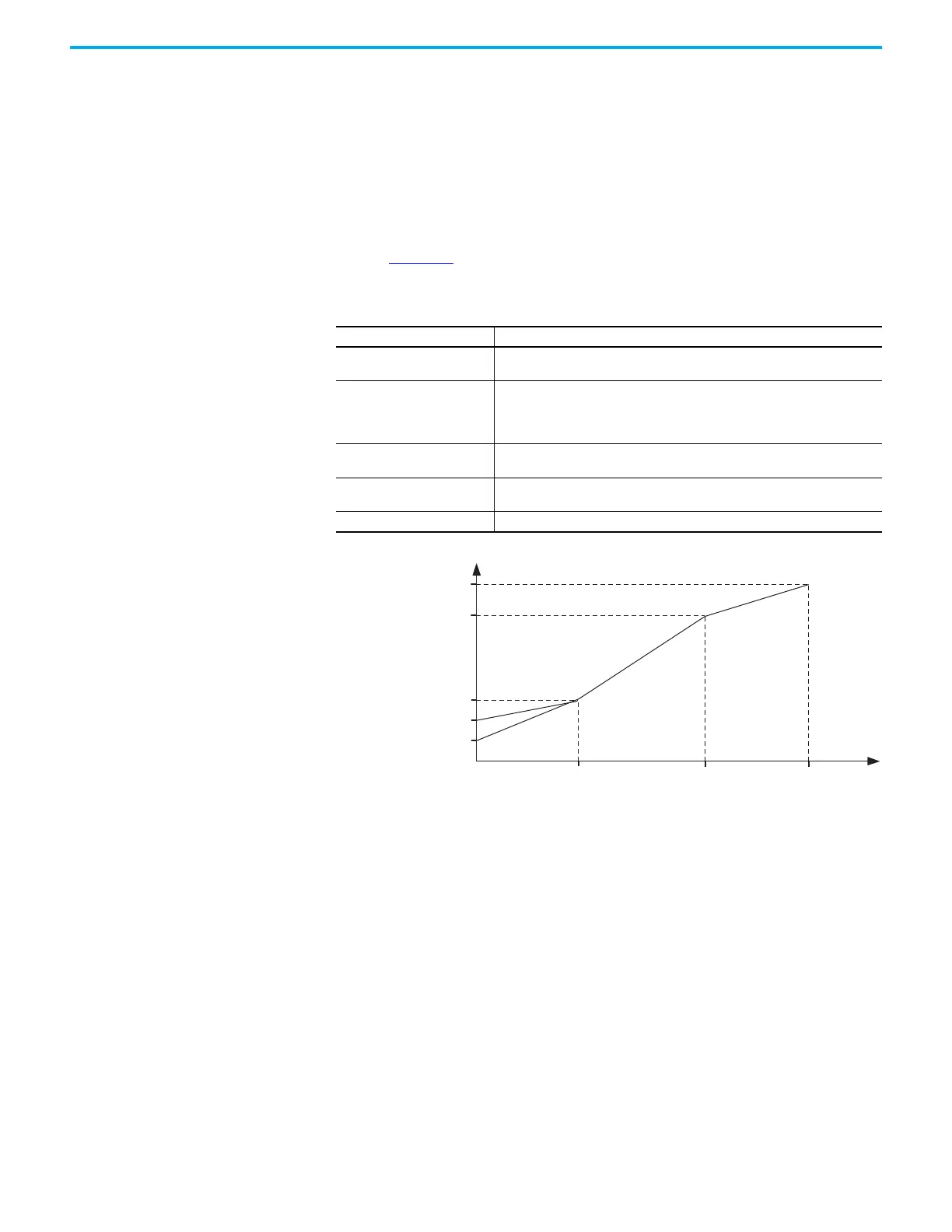

Figure 94 - Basic Volts/Hertz Method
Curve Feature Definition
Start boost
Used to create additional torque for breakaway from zero speed and acceleration of
heavy loads at lower speeds.
Run boost
Used to create additional running torque at low speeds. The value is typically less
than the required acceleration torque. The drive lowers the boost voltage to this
level when running at low speeds (not accelerating). This reduces excess motor
heating that could result if the higher start/accel boost level were used.
Break voltage/frequency
Used to increase the slope of the lower portion of the Volts/Hertz curve, providing
additional torque.
Motor nameplate voltage/
frequency
Sets the upper portion of the curve to match the motor design. Marks the beginning
of the constant power region.
Maximum voltage/frequency Slopes the portion of the curve that is used above base speed.
Frequency,
max
Base Frequency,
(nameplate)
Break Voltage
Start/Accel Boost
Run Boost
Base Voltage
(nameplate)
Voltage, max
Break
Frequency
