Standard functions
SIMOCODE pro
10-2 GWA 4NEB 631 6050-22 DS 03
10.1 Introduction
Description
So-called "Standard functions" in the form of function blocks are also stored
in SIMOCODE pro, and can be used as required. These function blocks may
contain:
• Plugs ( )
• Sockets ( ) in the form of status information
• Setting values, e.g. the response when external faults occur ("Signaling",
"Warning" or "Tripping").
Schematic

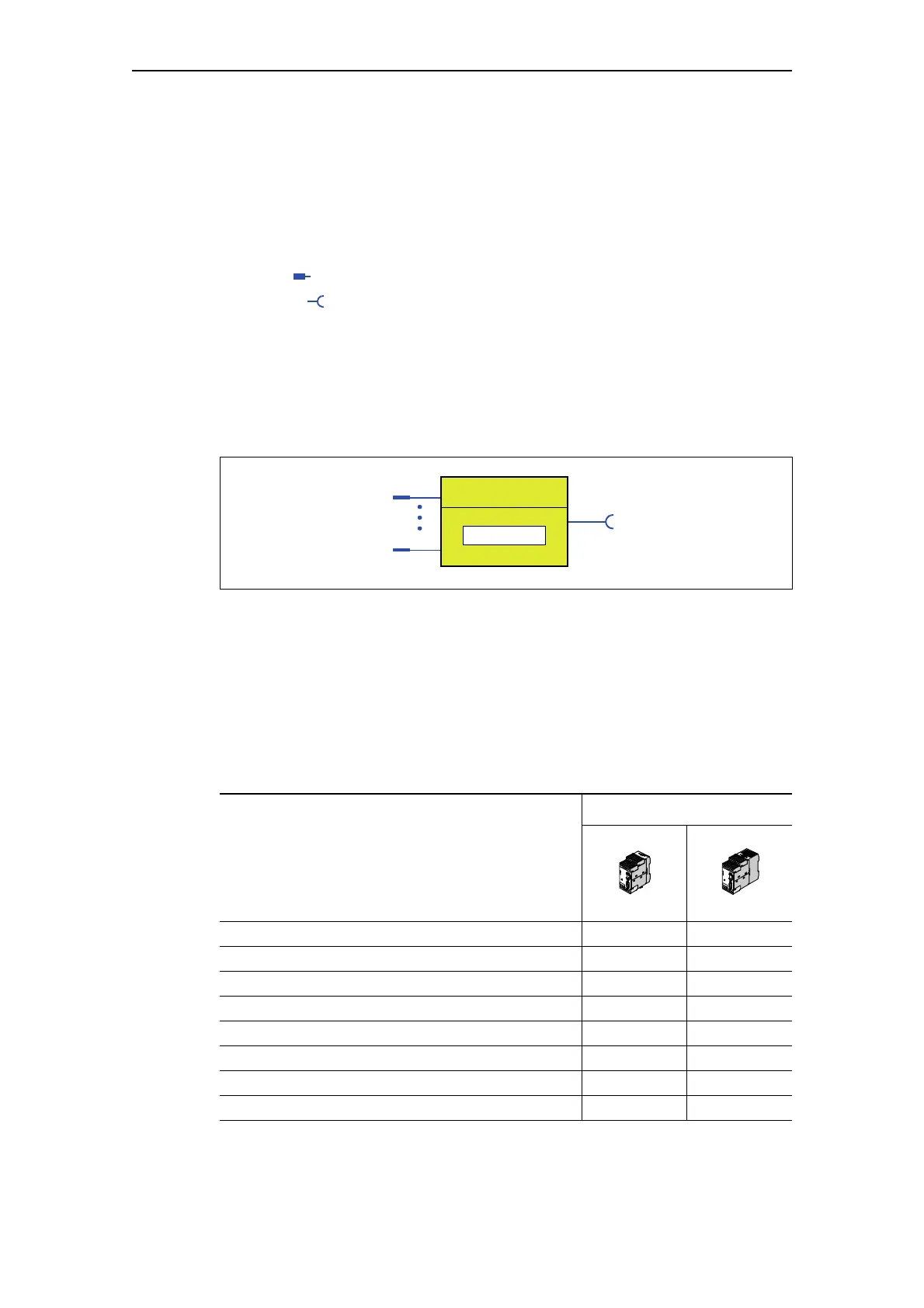

The following schematic shows the general representation of the function
block of a standard function:
Fig. 10-1: General representation of the function block of a standard function
Extent and application
These function blocks work independently of the selected control function
and can be used as optional supplements. They are ready to be used and
only require activating by connecting the plug(s) of the respective function
block.
Depending on the device series, the system offers several different function
blocks for such standard functions:
SIMOCODE
Function block pro C (BU1) pro V (BU2)
Test 2 2
Reset 3 3
Test Position Feedback (TPF) 1 1
External Fault 4 6
Operational Protection OFF (OPO) — 1
Power Failure Monitoring (UVO) — 1
Emergency Start 1 1
Watchdog (PLC/PCS Monitoring) 1 1
Table 10-1: Function blocks
Socket 1 - n
Plug 1
Plug n
Standard Function
Setting value
