10.4 External fault
Description
The "External Faults 1-6" function blocks can be used to monitor any
statuses and/or external devices, to generate fault messages and, if
necessary, to switch off the motor. To do this, the inputs (plugs) of the
"External Fault" function blocks must be connected to any sockets (e.g.
device inputs, control bits from PROFIBUS DP, etc.). External faults can also
be "marked" in SIMOCODE pro. This facilitates their allocation to the actual
malfunction. Example: Monitoring the rotational speed of the motor using
an external speed monitor.
The "External Fault" function block consists of:
• Two plugs (1 plug for setting, 1 plug for resetting)
• One "Event - External fault" socket. This is set when a signal is pending at the
input.
Overall, the following are available:
– Four "External Faults 1 to 4" function blocks for BU1
– Six "External Faults 1 to 6" function blocks for BU2.
Schematic

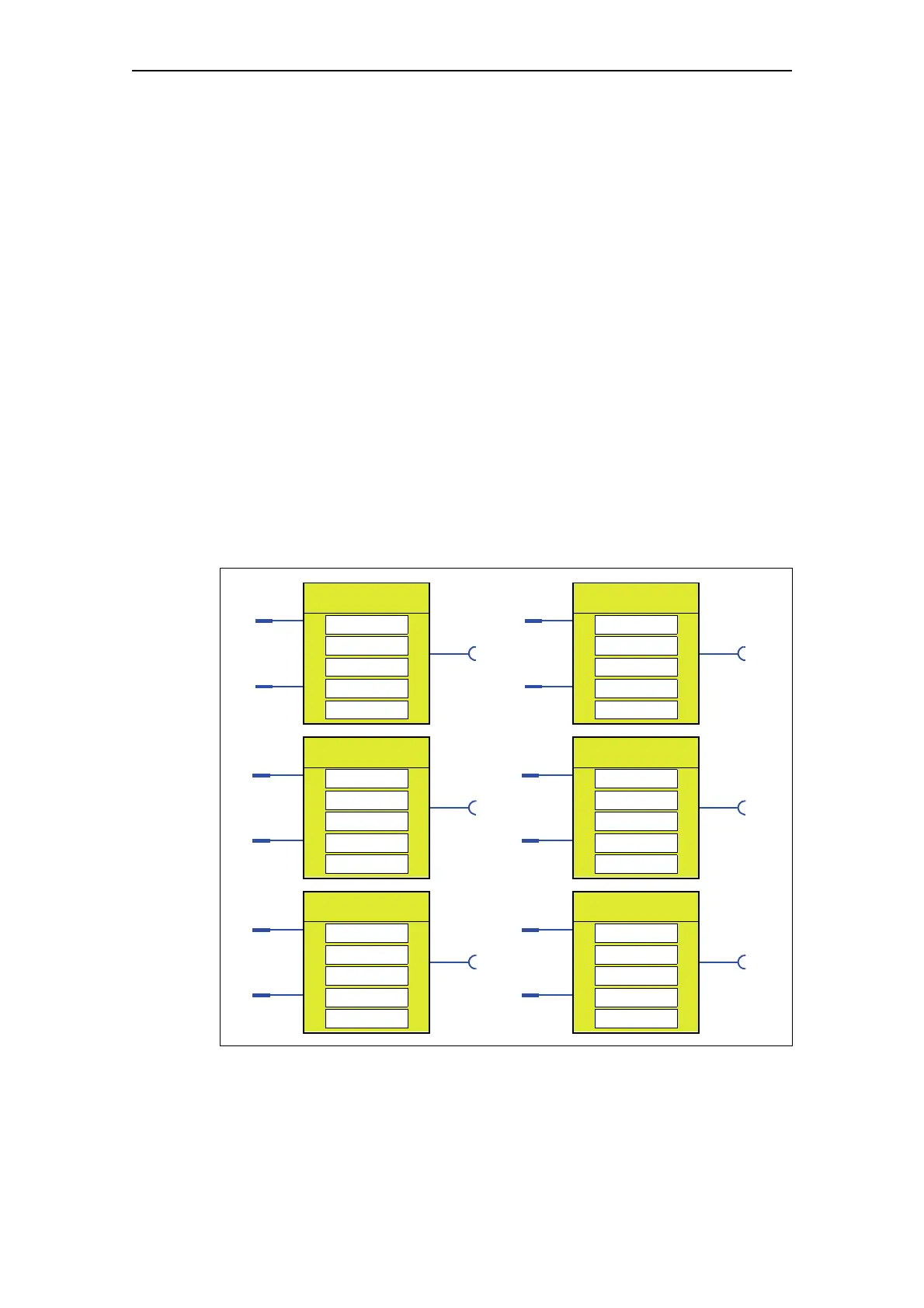

The following schematic shows the "External Fault" function blocks:
Fig. 10-4: "External Fault" function blocks
Event -
Input
Type
Reset
External Fault 1
Type
Activity
Response
Reset
(Marking)
Ext. fault 1
Event -
Input
Type
Reset
External Fault 2
Type
Activity
Response
Reset
(Marking)
Ext. fault 2
Event -
Input
Type
Reset
External Fault 3
Type
Activity
Response
Reset
(Marking)
Ext. fault 3
Event -
Input
Type
Reset
External Fault 4
Type
Activity
Response
Reset
(Marking)
Ext. fault 4
Event -
Input
Type
Reset
External Fault 5
Type
Activity
Response
Reset
(Marking)
Ext. fault 5
Event -
Input
Type
Reset
External Fault 6
Type
Activity
Response
Reset
(Marking)
Ext. fault 6
