Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
13-8 GWA 4NEB 631 6050-22 DS 03
13.2.5 Operator panel and operator panel with display
Operator panels are designed to be installed e.g. in the front panels of
motor control centers or in switchgear cabinet doors.
Install as follows:
Table 13-1: Sequence for installing the operator panel/operator panel with display

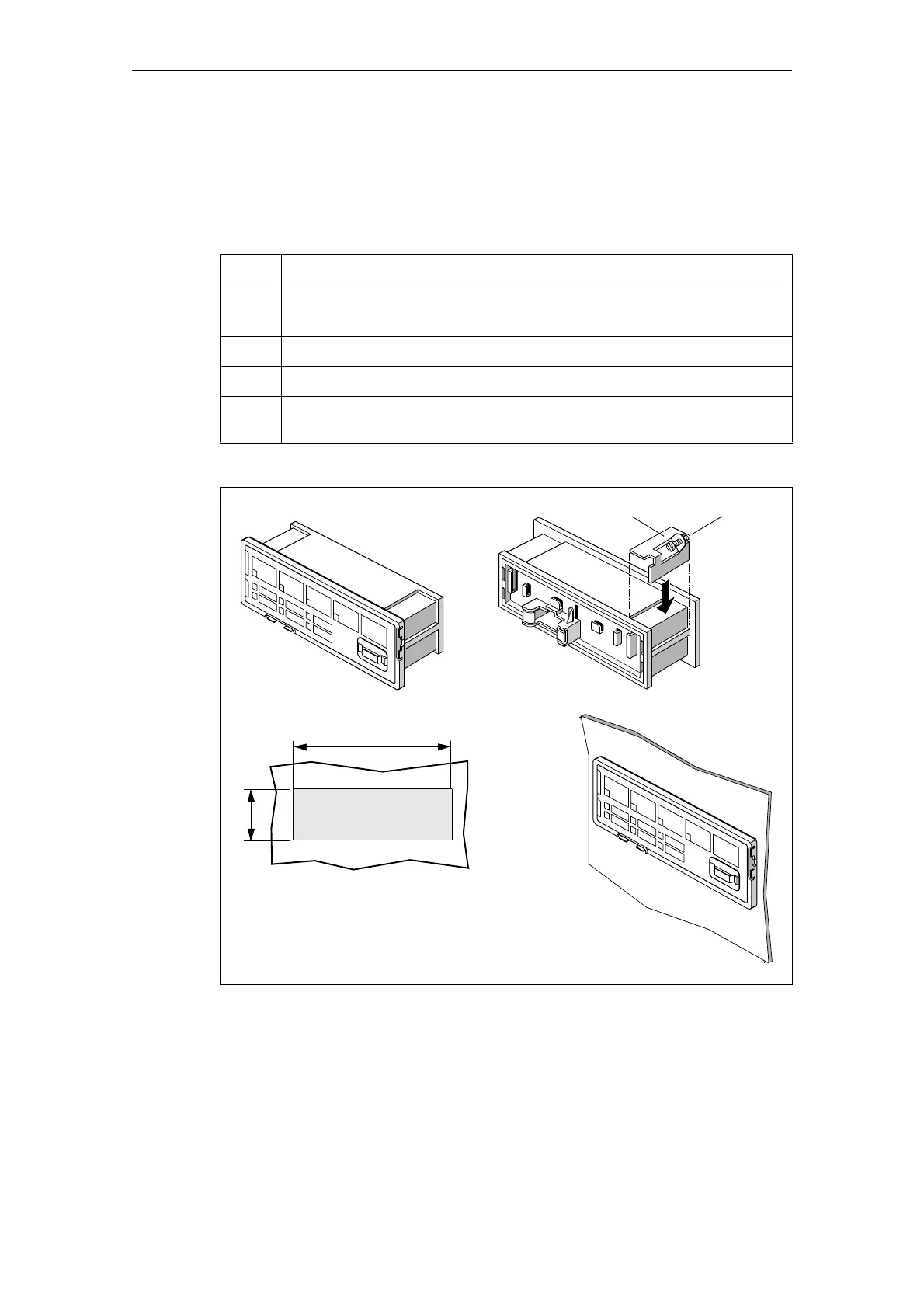

Fig. 13-4: Mounting the operator panel
Step Description
1 Make a cutout, e.g. in the front panel or switchgear cabinet door. Dimensions
(see Fig. 13-4 and 13-5).
2 Position the operator panel or the operator panel with display in the cutout.
3 Snap the four mounting brackets onto the operator panel
4 Lock the operator panel in position by tightening the four mounting bracket
screws.
Front panel
switchgear
etc.
4 x 0.15 + 0.05 Nm
90
+0.5
30
+0.5
Cutout
Operator panel
Mounting bracket
cabinet door
