13.3 Wiring
13.3.1 Basic units, expansion modules and the decoupling module
Basic units, expansion modules and the decoupling module have removable
terminals. You do not have to detach the wiring to exchange these devices!

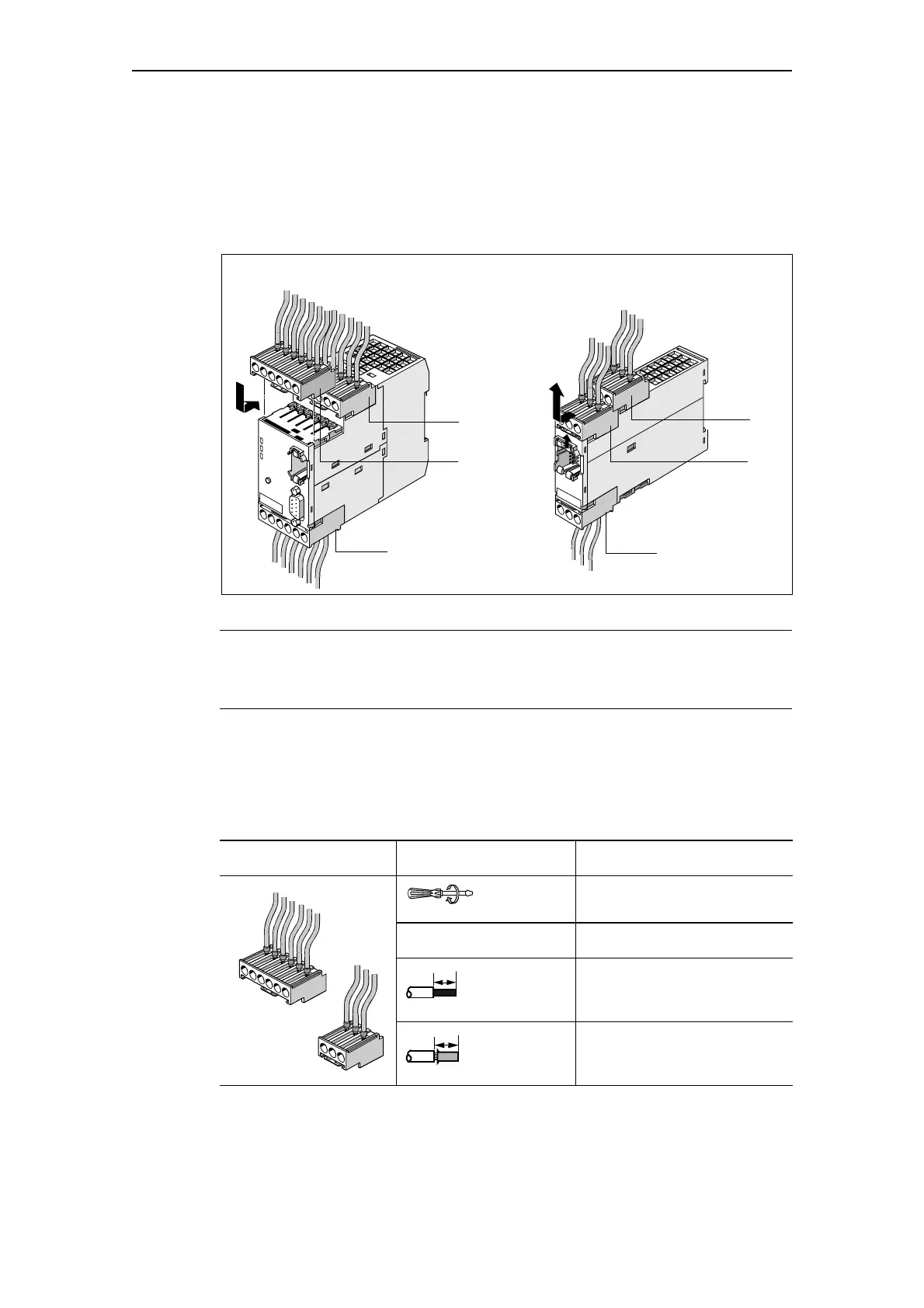

Fig. 13-8: Removable terminals on basic units, expansion modules and the decoupling module
Notice
The removable terminals are mechanically coded and will only fit in a certain
position!
Cables
The cable cross sections are the same for all devices. The following table
shows cable cross sections, strip lengths and tightening torques of the
cables for the removable terminals:
Table 13-3: Cable cross sections, strip lengths and tightening torques of the cables
Removable terminals Screwdriver Tightening torque
TORQUE: 7 LB.IN - 10.3 LB.IN
0.8 Nm - 1.2 Nm
Strip lengths Cable cross section
2 x 0.5 mm
2
- 2.5 mm
2
/
1 x 0.5 mm
2
- 4 mm
2
2 x AWG 20 to 14/1 x AWG 20 to 12
2 x 0.5 mm
2
- 1.5 mm
2
/
1 x 0.5 mm
2
- 2.5 mm
2
2x AWG 20 to 16/1x AWG 20 to 14
Removable terminals
Basic units
Expansion modules/
A
D
C
A, C, D: Coding
A
C
D
decoupling module
PZ2/
Ø 5 mm - 6 mm
10
Solid
10
Finely stranded
with/without
end sleeve
