Logic modules
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
11-21
11.9 Flashing
Description
If an input signal is pending at its plug, the "Flashing" logic module provides
a signal at its socket, which alternates between binary 0 and 1 with a fixed
frequency of 1 Hz. You can use this to make the LEDs on the operator panel
flash.
The logic module consists of:
• One plug
• One logic component
• One socket.
Overall, three logic modules, "Flashing 1" through to "Flashing 3" are available
for BU1 and BU2.
Schematic

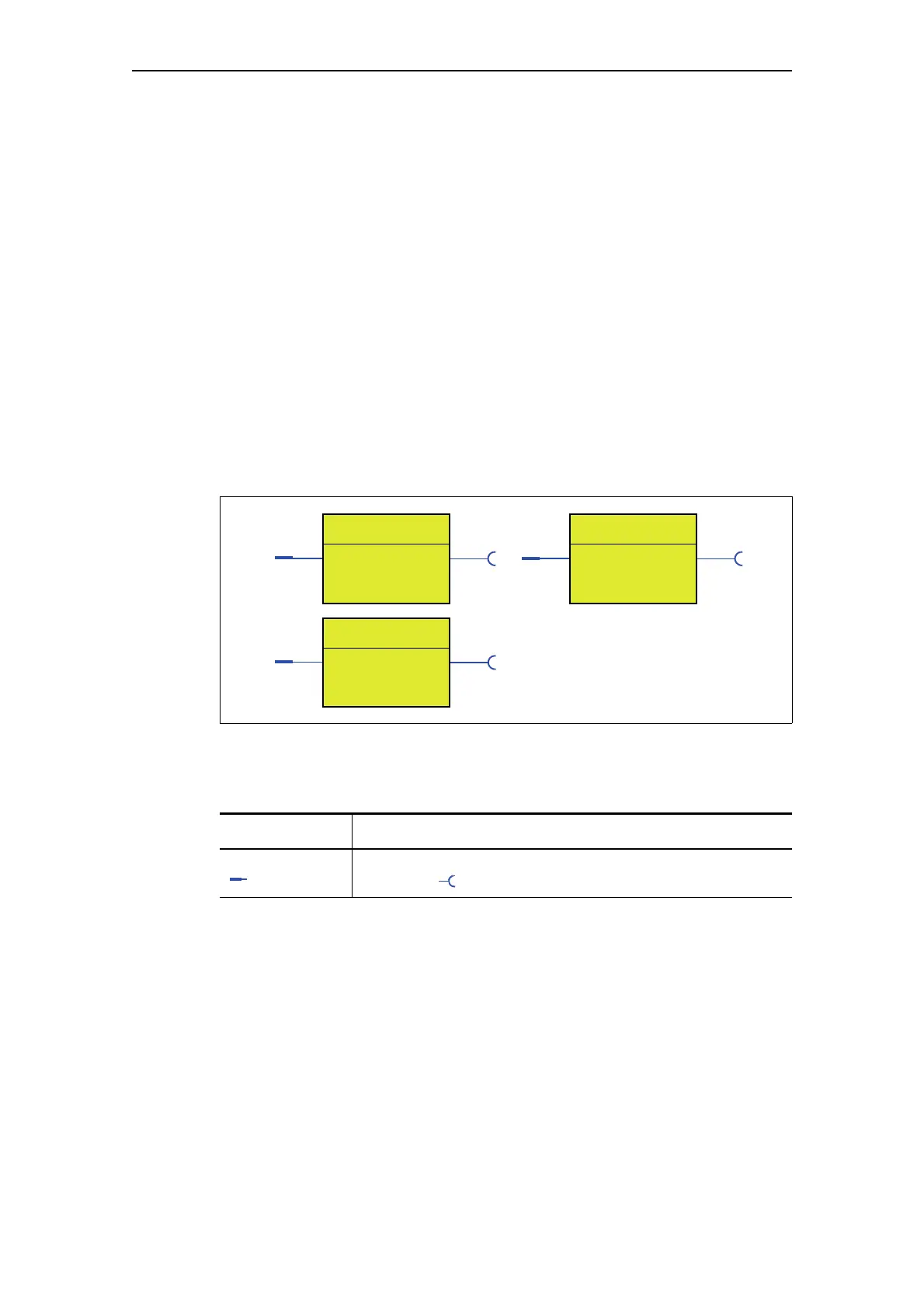

The following schematic shows the "Flashing" logic modules
Fig. 11-16: "Flashing" logic modules
Settings
Flashing 1 to 3 - Description
Input Activation by any signal
(any sockets , e.g. device inputs, status information, status, etc.)
Table 11-10: Flashing settings
Flashing 1
Input
Output
Flashing 2
Input
Output
Flashing 3
Input
Output
