Tait TB8100 Service Manual

TB8100 Service Manual Reciter Spare Parts 111
© Tait Electronics Limited September 2006

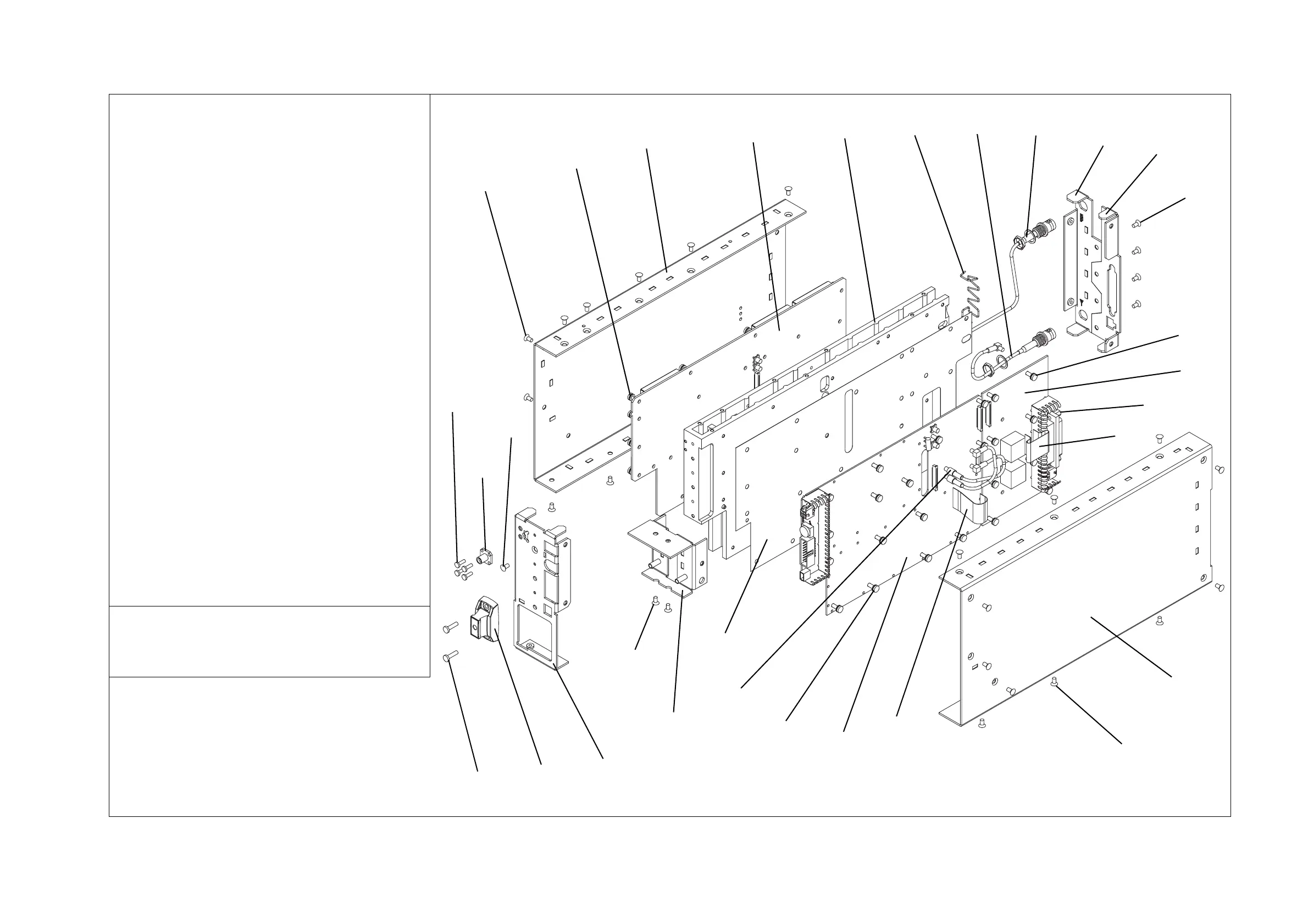

Figure 6.1 Reciter mechanical assembly
Description IPN
b
70.1MHz IF and 12.8MHz reference coaxial cables 219-02849-XX
c
flexible connector 219-02850-XX
d
RF input coaxial cable 219-02851-XX
e
external reference coaxial cable 219-02852-XX
f
SMA connector 240-02155-XX
g
vent guard clip 303-50108-XX
h
handle 308-01065-XX
i
heatsink 308-13148-XX
j
RF side cover 316-06795-XX
1)
front panel 316-06796-XX
1!
digital side cover 316-06797-XX
1@
rear panel - digital side; changes according to the
system interface board fitted:
none
standard, isolated, isolated E & M
Tai tNe t
TaitNet Ethernet
TaitNet RS-232
316-06802-XX
316-06798-XX
316-21279-XX
316-06865-XX
316-02023-XX
1#
fan duct 316-06804-XX
1$
rear panel - RF side
rear panel - RF side (with PEMs)
316-06805-XX
316-06847-XX
1%
M3x6mm countersunk Torx screw 345-40460-XX
1^
M3x8mm pan head Torx screw with spring & flat
washers
345-40470-XX
1&
M2.5x8mm pan head Torx screw 345-40490-XX
1*
M3x12mm pan head Torx Taptite screw 349-02065-XX
1(
4–40 UNC screw lock 354-01043-XX
2)
thermally conductive insulator sheet 362-01120-XX
2!
RF board
2@
digital board
2#
system interface board
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
b
c
c
e
d
f
g
h
i
j
1)
1!
1@
1#
1$
1%
1%
1%
1%
1%
1^
1^
1&
1*
1(
2)
2!
2@
2#
1^
x14
x4
x2
x2
x16
x2
x11
x2
x4
x24
x8
