TB8100 Service Manual
Reciter Circuit Description
37
© Tait Electronics Limited Sept
ember 2006

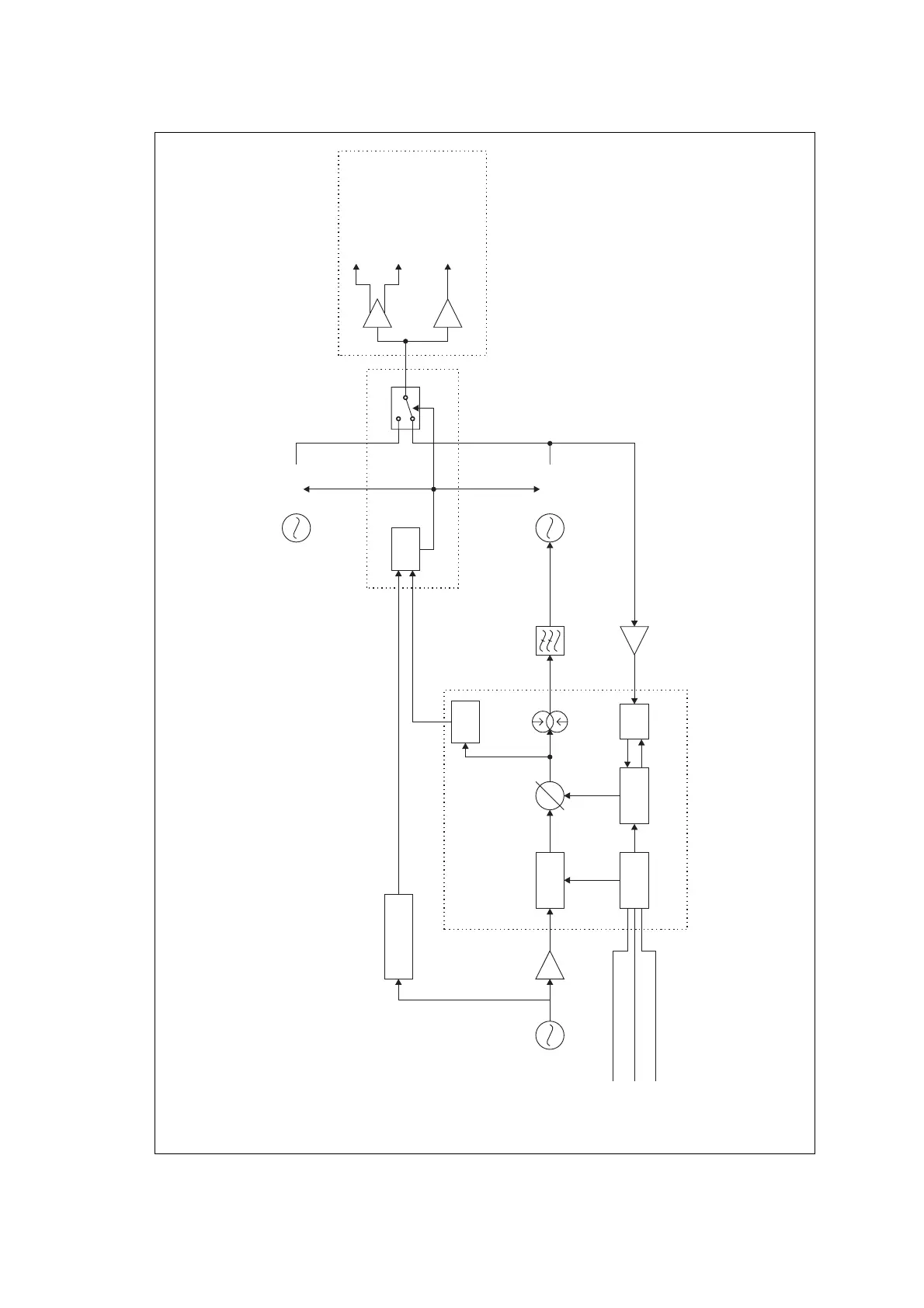

Figure 2.4
R
eciter exter
nal reference block diagram
/R
/N
10 or 12.8MHz
External Reference
Internal Reference
12.8MHz
TCXO
Programmable
Reference Divider
Programmable
VCO Divider
Phase
Detector
Charge
Pump
f
ref
f
VCOfb
Software
Register
External Reference
Detector
Lock
Detect
RISC
8/9
Prescaler
F
requency Synthesizer IC
Loop
Filter
External Reference
12.8MHz
VCO
Clock
Data
Chip Select/Latch Enable
Serial Bus
External
Reference
Buffer
12.8MHz
VCXO
F
eedback Buffer
Reference Switch
Ext_Ref_Det
Ext_Ref_Lock_Detect
Digital Switch
OFF / ON
ON / OFF
RF Switch
Ext_Ref_Ctrl
Buffer
Buffer
FCL Reference
Receiver Synthesizer
Reference
Digital Clock
Synthesizer Reference
Internal/External Reference Clock Branch
