TB8100 Service Manual Subrack Servicing 289

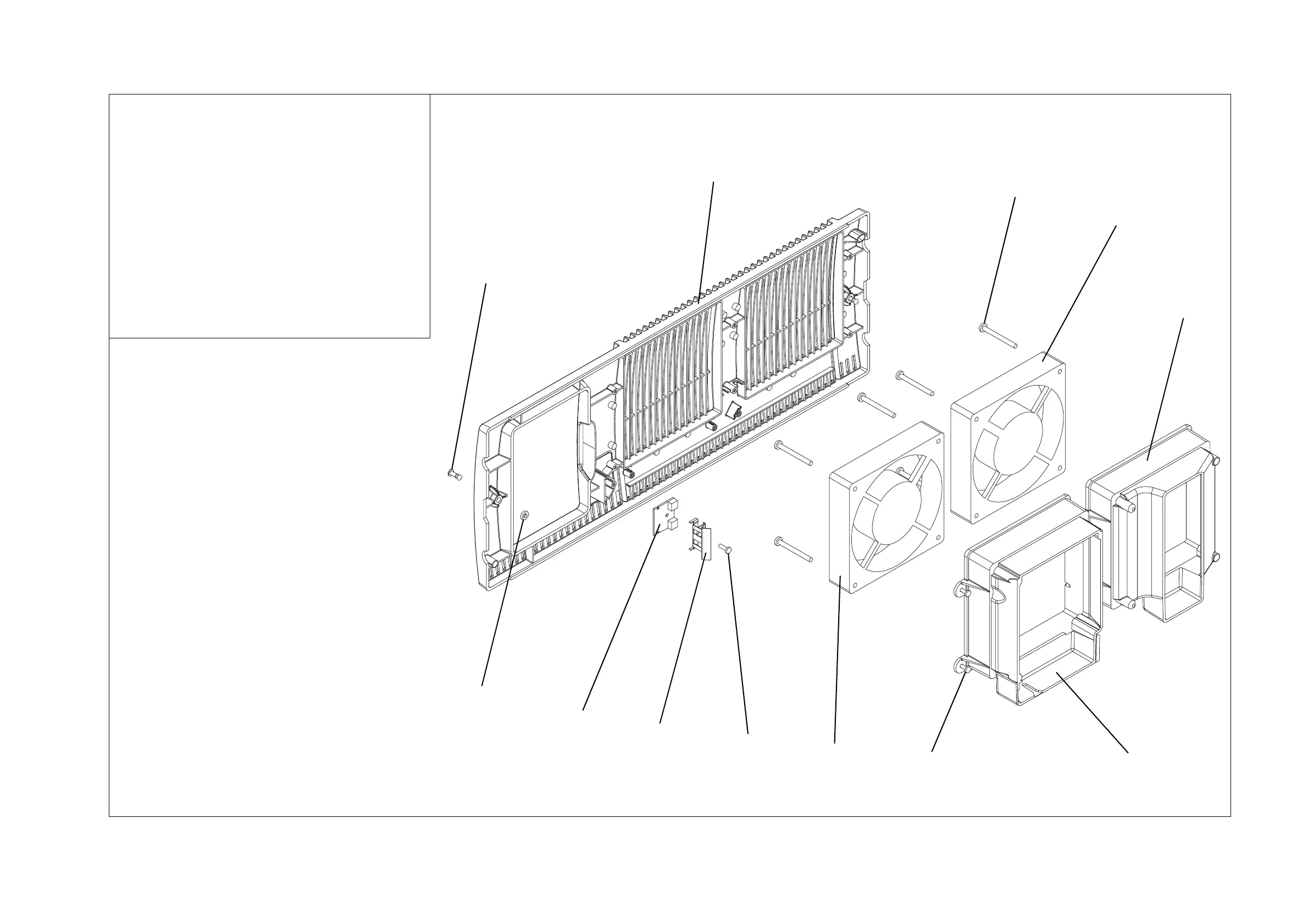

Figure 19.1 Front panel mechanical assembly

Description IPN

fan contact board 220-02028-XX

fan:

no rotation sensor

rotation sensor

258-00011-XX

258-00014-XX

PA fan duct 302-05264-XX

PMU fan duct 302-05265-XX

spring clip 303-50106-XX

front panel 316-06821-XX

KC30x10mm pan head Torx PT screw 346-10030-10

M4x40mm pan flange head Torx PT screw 346-10440-XX

quarter-turn fastener 354-01047-XX

retaining washer for quarter-turn fastener 354-01048-XX

Note:

The characters XX in an IPN (Tait Internal Part Number)

stand for the issue number of the part. Only the latest

issue of each part will normally be available for ordering

as spare or replacement parts.
