290 Subrack Servicing TB8100 Service Manual
© Tait Electronics Limited September 2006

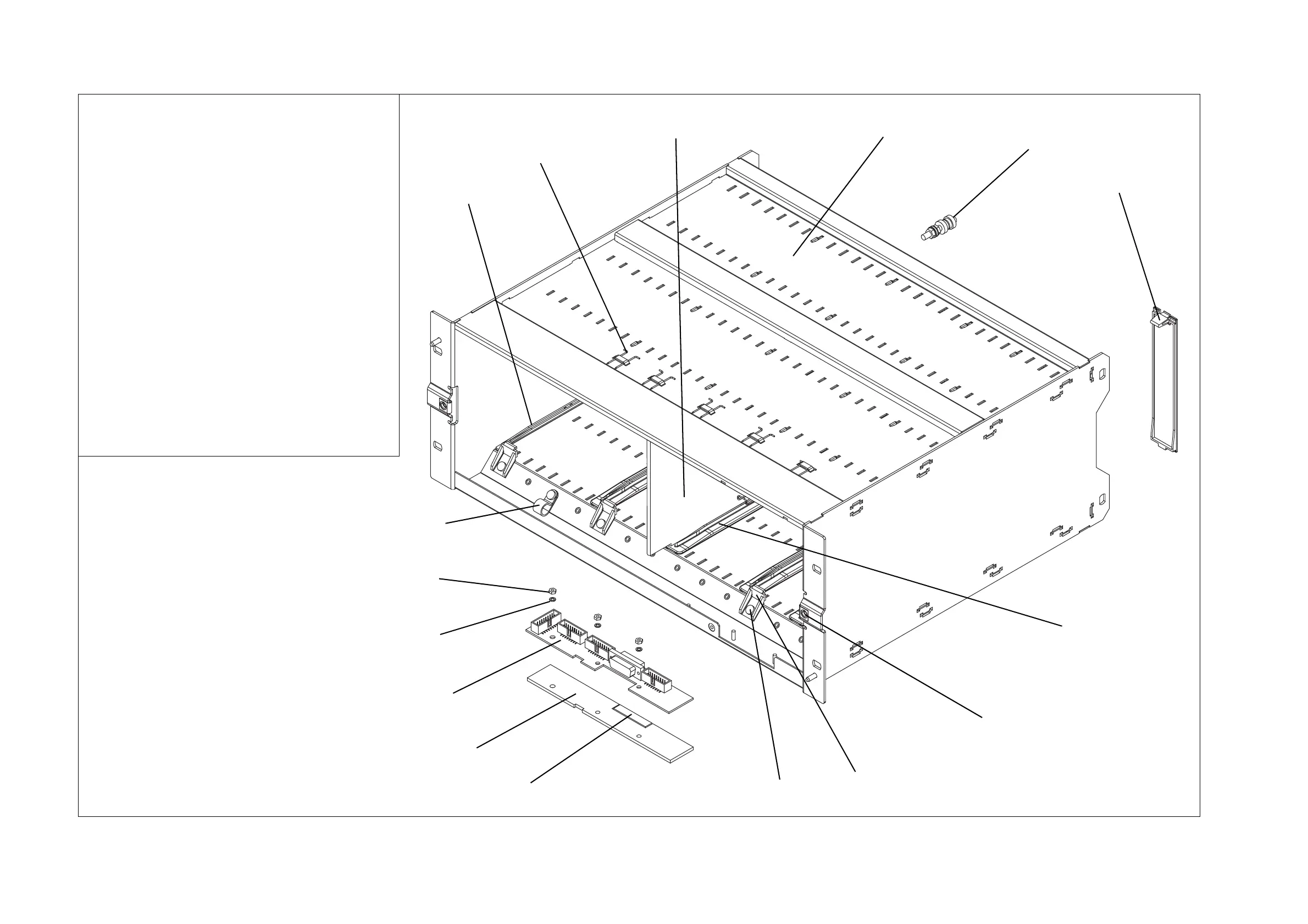

Figure 19.2 Subrack mechanical assembly
Description IPN
b
module retaining clamp 303-50102-XX
c
cable retaining clip 303-50104-XX
d
bottom guide rail 307-02052-XX
e
top guide rail (also used in the bottom corners
when required)
307-02053-XX
f
rear blanking panel 316-06785-XX
g
airflow separator 316-06816-XX
h
subrack 318-01051-XX
i
M4x10mm pan head Pozidriv screw 345-00050-07
j
M3 hex nut 352-00010-08
1)
M3 spring washer 353-00010-12
1!
receptacle for quarter-turn fastener 354-01049-XX
1@
subrack ground connector 356-00010-61
1#
9.5mm P-clip 357-00010-48
1$
insulating foam 362-01037-XX
1%
insulator for interconnect board - single base station
insulator for interconnect board - dual base station
362-01121-XX
362-01123-XX
1^
interconnect board
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
Note:
This drawing shows a single base station subrack. Any
differences between the single and dual base station
subracks are indicated in the description of the parts.
Parts which are unique to the multi-reciter subrack are
shown in Figure 19.5 on page 293.
b
c
d
e
f
h
i
j
1)
1!
1@
1#
1$
1%
x5
x2
x3
x3
1^
g
