TB8100 Service Manual Power Amplifier Fault Finding 155

8.9 6W Board

These checks will verify that:

■ the DC supply voltages are correct

■ the correct voltage levels are present at selected test points

■ the driver transistor and Tx Key circuitry are functioning correctly

■ the output power is correct.

Figure 8.11 shows the location of the test points on the 6W board. Refer

also to Table 8.2 on page 159 for a list of test points and their associated

voltage levels.

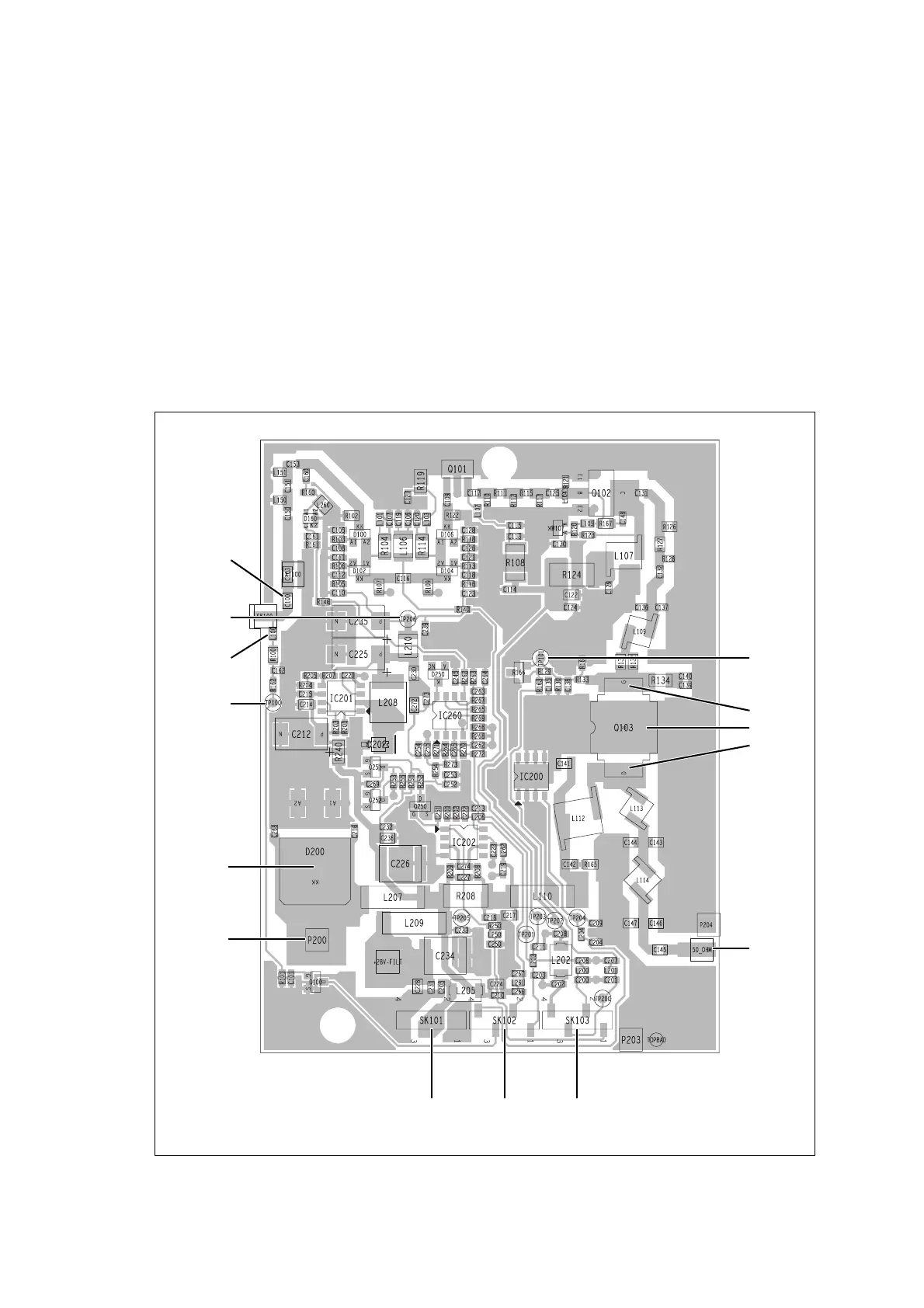

Figure 8.11 Location of test points on the 6W board

D200

TP206

TP101

Q103

drain

gate

SK101 SK102 SK103

board shown is B/C band

P200

C100

TP100

L100
